Lenovo ThinkPad P1 Gen2 Laptop Battery Replacement

Geschrieben von: Max Kletskov
  • Kommentare: 3
Lenovo ThinkPad P1 Gen2 Laptop Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

How to replace the battery of a Lenovo ThinkPad P1 Gen2 laptop. The images and information in this guide were taken from this computer's service manual.

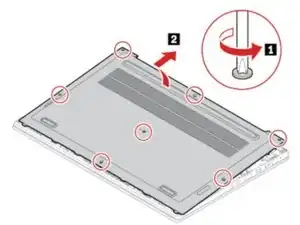

  1. nQMatlUBLpjPFQgE

    • Remove the 7 screws holding the base cover in place.

    • Remove the base cover.

  2. WofotqIGVsABd4VS

    • Peel up the insulated sheet from the battery connector.

    • Unplug the battery connector in the direction showed by the arrow.

    When Lifting up on the battery connector begin by lifting/leveraging the end of the connector away from the wires/ribbon first. When I tried to lift under the wires end it seemed firm...too firm to comfortably lift without risking breaking the connector on the MB. When I started with the outside end away from the wires that tilted up easier and then the other end of the connector snapped out. Just be careful and don't rush.

    fluxcomputerrepair -

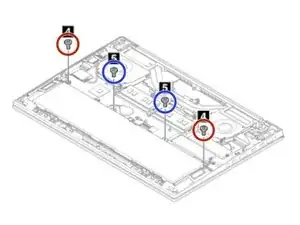

  3. 4hE56fMOLa1wvaL6

    • Remove the two M2 × L4 mm, flat-head screws.

    • Remove the two M2 × L5 mm, flat-head, screws.

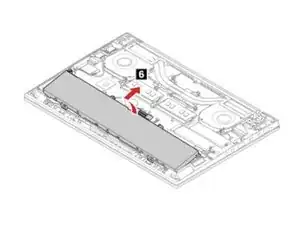

  4. hJfaFTAbhFoUeShD

    • Remove the battery.

Abschluss

To replace the battery & reassemble your device, follow these instructions in reverse order.
