Lenovo ThinkPad S431 Battery Replacement

Geschrieben von: Mohammed AlManai
  • Kommentare: 0
Lenovo ThinkPad S431 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide will give you step-by-step instructions on how to safely remove your Battery. The Battery is a device that stores energy for your laptop.

  1. drhM6pEYYu5nBjUZ
    drhM6pEYYu5nBjUZ
    KqNDcMiVFHoQcKA4

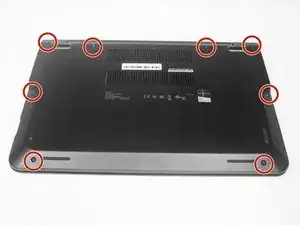

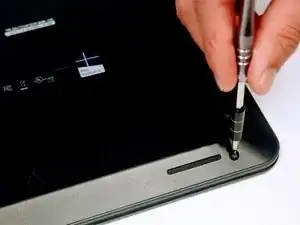

    • Remove the 8 screws holding down the back panel, using the Phillips screw driver #000.

  2. VCPNscsPVWZkrtAV
    VCPNscsPVWZkrtAV
    KewGZEbNBQGWYSFr
    dqpdEdHonJxYR13N

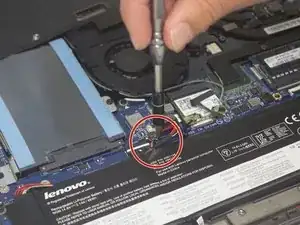

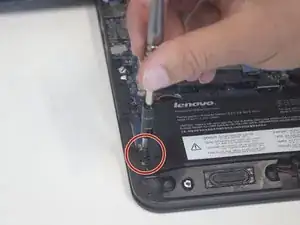

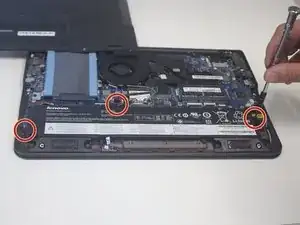

    • Remove the 3 screws using the Phillips screwdriver #000. The screws are wafer-heads, size m2x4mm.

  3. SGlCGIQMTXlhetyt

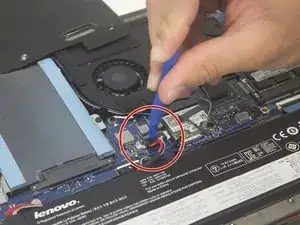

    • Unplug the battery's cable.

  4. q1PONs1tYTWNSS4W
    q1PONs1tYTWNSS4W
    FkybsvoJUfbxtXQ6

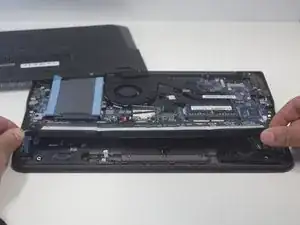

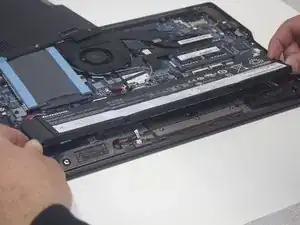

    • Carefully, lift up the battery-pack to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
