Lenovo ThinkPad S431 Cooling Fan Replacement

Geschrieben von: Mohammed AlManai
  • Kommentare: 0
Lenovo ThinkPad S431 Cooling Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide will give you the instructions needed to replace the laptop's cooling fan. The fan is needed to keep the laptop from overheating.

  1. 1K1aHwUvQ1VpxSib
    1K1aHwUvQ1VpxSib
    3wVdZYrqIsaSZBSw

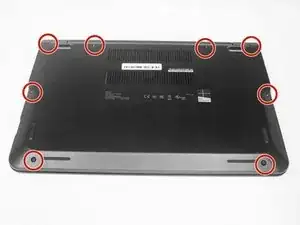

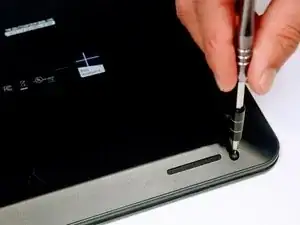

    • Remove the 8 screws holding down the back panel using the Phillips screw driver #000.

  2. ZJuMyqfnDcJEZx3y
    ZJuMyqfnDcJEZx3y
    CAHCXEmVneX5EDFY

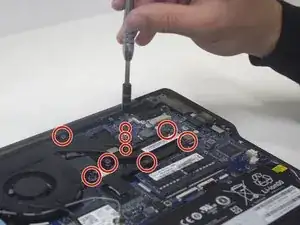

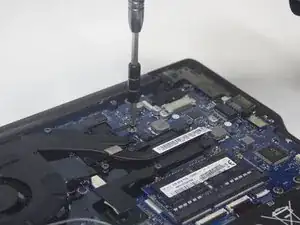

    • Remove the 9 wafer-head screws, size M2x4mm, using the Phillips screwdriver #000.

  3. 2VVopMtXcRIKhlXM

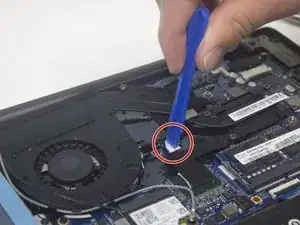

    • Remove the fan's cable using the plastic opening tool.

  4. 5UxWpCmVoWOUkhEL

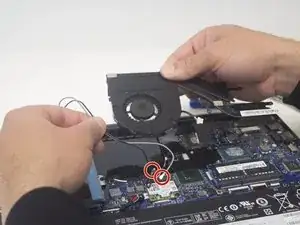

    • Gently, remove the black and white wires surrounding the fan.

    • The wires will be connected around the fan, you will have to remove them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
