Lenovo ThinkPad S431 Screen Assembly Replacement

Geschrieben von: Mohammed AlManai
  • Kommentare: 0
Lenovo ThinkPad S431 Screen Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show you the steps to safely remove the damaged screen from your laptop. Once the screen is broken, you cannot receive accurate information from your laptop.

  1. GWKUWtqOLU4rZQuI

    • Place an opening tool under the screen cover, and pop it off.

    • Using a metal object to open fragile parts of your laptop could cause damage! Instead use the opening tool listed in the tools section above.

  2. DSkvOOqANDcLMOZF
    DSkvOOqANDcLMOZF
    Q4gSBbVm2ejS6Qaa

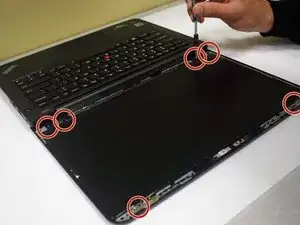

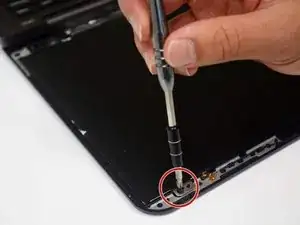

    • Take off the 6 screws using the Philips head #1.

  3. Qp3SyXnjeEFXOTFG

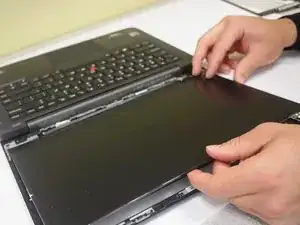

    • Lift the screen out from the top.

  4. d2i4GKZhW4TXjITp
    d2i4GKZhW4TXjITp
    DqOXK4LU6kOBDahm

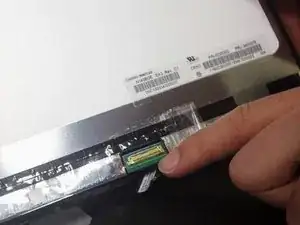

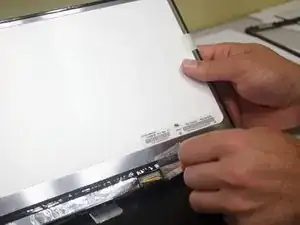

    • Remove the connector located at the bottom of the back of the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
