Einleitung

  1. KrcS3FYZRGLZTTZY
    KrcS3FYZRGLZTTZY
    aSuFKmYOSQPu1xCx
    cpWTcHErKhfqi1pa

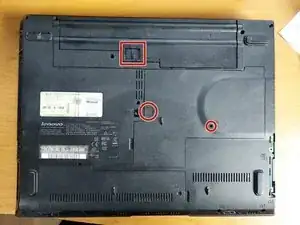

    • Remove the battery.

    • Remove the 2 screws holding the CPU panel.

    • Dont forget to disconnect the fan cable.

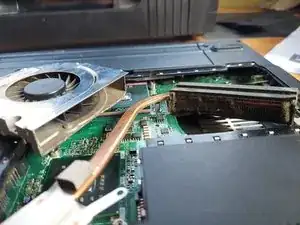

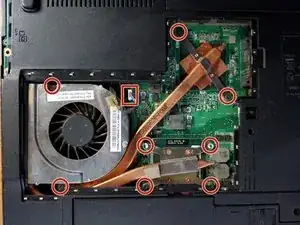

    • Remove all screws that hold the cooling assembly and carefully wiggle it out of the laptop.

    • Now is a good idea to upgrade the CPU if needed.

    • Clean the old thermal paste both from the cooler and the CPU. It is best to use isopropyl alcohol and cotton swabs or paper towel, but be careful not to go too hard on the CPU.

    • Dont use too much thermal paste, just enough to cover some portion of the pad. If you have a spreader, use it. The thermal paste will apply evenly after you tighten the heatsink.

  2. 4Xw4eQYKWAgIsUBS
    4Xw4eQYKWAgIsUBS
    sLGm4VYNYnb1ysuK

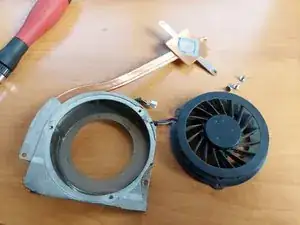

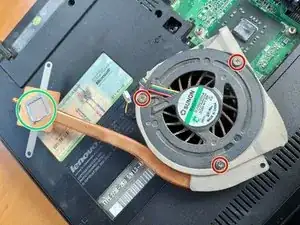

    • Remove the 3 screws holding the fan to the assembly.

    • Use compressed air to remove any dust in the laptop and the fan.

    • Last, put everything back carefully and tighten the screws in order to ensure even pressure. Dont forget to plug in the fan cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
