Lenovo ThinkPad T400s CMOS Battery Replacement

Geschrieben von: Morgan Montalvo
  • Kommentare: 1
Lenovo ThinkPad T400s CMOS Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This guide will show you how to replace your CMOS battery.

  1. 6GALmEUlpYxgFwut
    6GALmEUlpYxgFwut
    2LhtaytVVJKpEdma

    • Remove the Phillips #0-6mm screw.

    • Lift up the back cover to the RAM cards.

  2. s4fJe6liiUR6JjuK
    s4fJe6liiUR6JjuK
    oKRaHkGPJl2LhpZ6

    • Pull the lock for the baterry to the left to unlock.

    • While holding the tab in the unlocked position, remove the battery.

  3. PUvbFR5uluWGvcjT

    • Remove the three Phillips #0-6mm screws on the back panel.

    • These screws are marked with a keyboard symbol next to them.

  4. slkfFCsE4akNWBlx
    slkfFCsE4akNWBlx
    yXa2T5niFcytWyDh
    RTElp2PVsyKtaYnY

    • Turn the computer over and open the lid.

    • Wedge the small metal spudger between the palm rest and the keyboard.

  5. eOkQVDGeSIAWNti1
    eOkQVDGeSIAWNti1
    FvfLoARFVVTVUUKW
    RpkHf2GO2rrndMxc

    • Lift up the keyboard, but be careful not to completely remove.

    • Don't lift the keyboard too quickly, there is a connector cable you must disconnect first.

    • Wedge the small plastic opening tool underneath copper band and tilt back.

    • Remove keyboard to replace.

    Keep up the good work

    Cordially,

    Joseph of Denver CO

    Joseph W Arabasz MD -

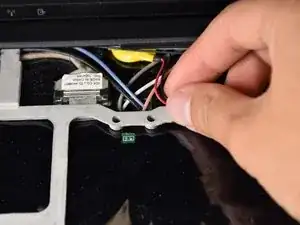

  6. TdmDrvXmEsBMc1Di

    • Gently pull the back-up battery from underneath the front panel.

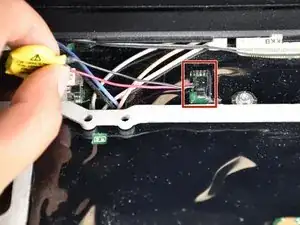

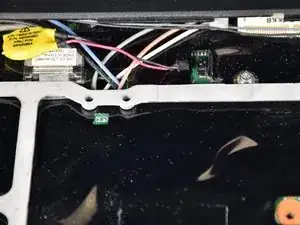

  7. TReLuDmdmHivr2fX
    TReLuDmdmHivr2fX
    hM6CXJQmhPwlaBEV

    • Pull on the black connection piece and remove the back-up battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
