Lenovo ThinkPad T400s RAM Cards Replacement

Geschrieben von: Morgan Montalvo
  • Kommentare: 0
Lenovo ThinkPad T400s RAM Cards Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

In this guide, we will show you how to replace your memory cards.

  1. R1FUU3SmsZemdDOv
    R1FUU3SmsZemdDOv
    vGAuBut2fZAhh3xS

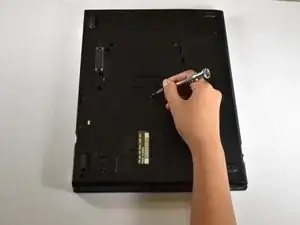

    • Unscrew the Phillips #0-6mm screw on the back panel.

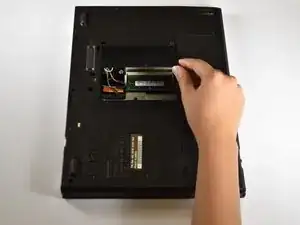

    • Lift up the back cover to the memory cards.

  2. RRxQ4a6lX3pTqYay

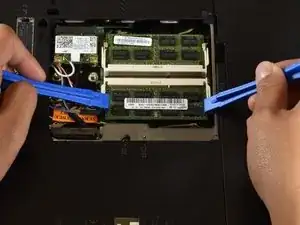

    • Use two plastic opening tools to lightly pull the two semi-circle tabs apart.

  3. rUbifqYYcaQBVsbq

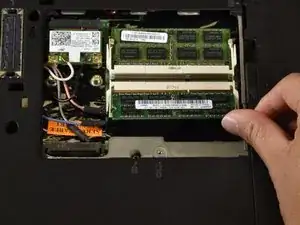

    • Pull out the RAM cards from their slots and replace.

Abschluss

To reassemble your device, follow these instructions in reverse order.
