Lenovo ThinkPad T420s Power Jack Replacement

Geschrieben von: Alyssa Elliott
  • Kommentare: 7
Lenovo ThinkPad T420s Power Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

30 Minuten

Einleitung

If your laptop is not charging correctly you can replace the power jack using this guide.

  1. MeyBn5mY4CyUtkSi
    MeyBn5mY4CyUtkSi
    S64PVWfoqLXRaFtH

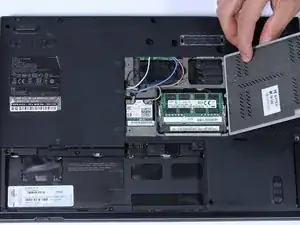

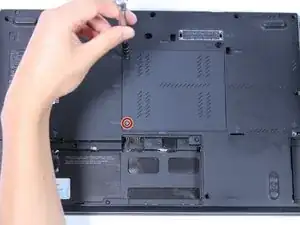

    • Flip your laptop over so the bottom is facing up.

    • Remove the memory panel by removing two black 5mm screws using the Phillips #0.

    • Remove the memory panel.

  2. 6DQJTWvYTertsT1U

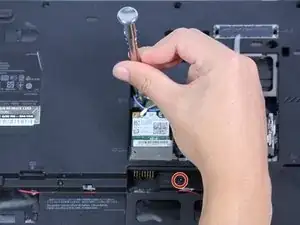

    • Remove the two 5mm screw using the Phillips #0 screwdriver.

    • Flip the laptop back over and open it.

  3. OIkV3SDqZyrF2LlQ
    OIkV3SDqZyrF2LlQ
    G5KDkMgUPoQ4w2PO
    VLmFP1sCQSrGVEdn

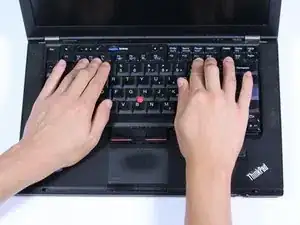

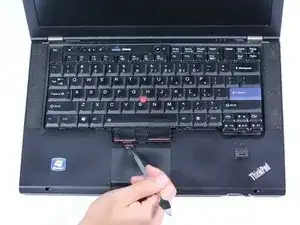

    • Gently push down on the keyboard and slide it towards the screen. This will pop the bottom of the keyboard out of the casing.

    • The best place to push is on the frame of the keyboard by the power button.

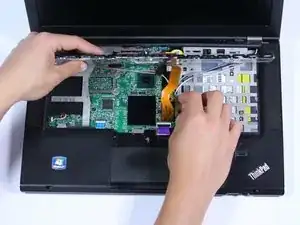

    • Using the metal spudger, lift and slide out the keyboard.

    • When lifting the keyboard do not remove it completely because a cable will still be connected to the laptop.

  4. sKVFdlEjGKt1dQ1K

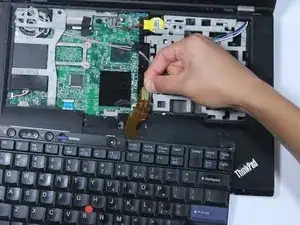

    • Remove the orange cable by lifting up on the tab on the end of the ribbon connection.

  5. AUCVufueMxIyBBEF

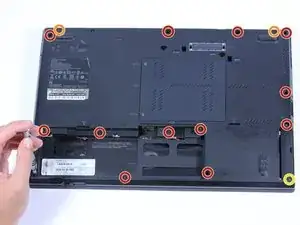

    • Remove the additional thirteen 5 mm screws with your Phillips #0 screwdriver.

    • Remove the two 2.5 X 5 mm screws from the back of your laptop.

    • 2.5 X 5 mm screws are slightly larger than the 5 mm screws.

    • Remove the 3 mm screw from the back of the laptop using the same screwdriver.

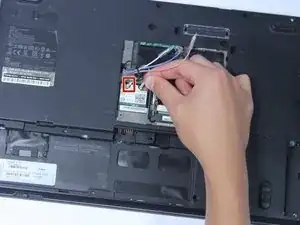

  6. 21vRKndtqDUUugGZ

    • Disconnect the black and gray antenna cable connectors in the memory panel on the back of the laptop.

    • Remove any plastic wraps on the blue, white, and tan wires.

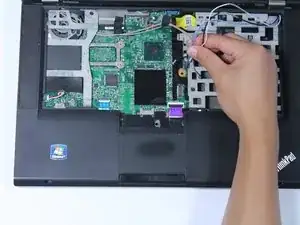

  7. JNCegGB1EaHFtSOP

    • Flip the laptop back over and pull all the wires from the previous step through to the top side.

  8. 14bZrUrDKSXLN4pf

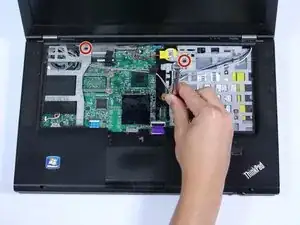

    • Remove the three 5mm screws holding the palm rest casing in place using the Phillips #0.

  9. TaKAcKwEBJBy1FP1

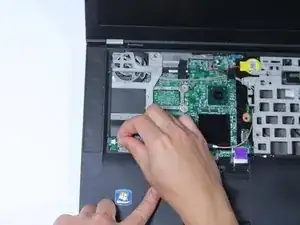

    • Unplug the red, white, and blue bunch of wires.

  10. 1AcvPTpOJTTfLHs3

    • Lift up the black retaining flap holding the purple ribbon cable in place, and carefully slide out the ribbon.

  11. YqPhddYim62GHE1L

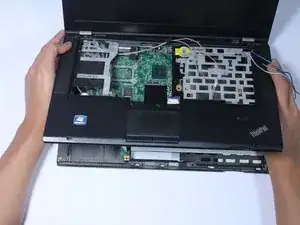

    • Remove the top casing by lifting up and sliding out.

    • Be careful when sliding the casing out as some of the casing is still underneath the screen; some wiggling may be required, but do not force it.

  12. jjkZCkNioBMNLUxX
    jjkZCkNioBMNLUxX
    ueGDSJncrf5bQkkX

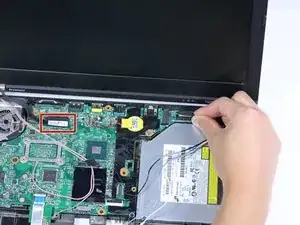

    • Unplug the two black cables that connect the screen to the motherboard.

  13. gVcNvsfdfnuTfK4X
    gVcNvsfdfnuTfK4X
    FV1NaTPjTT5mMOhR

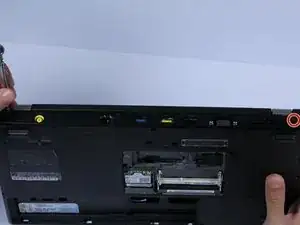

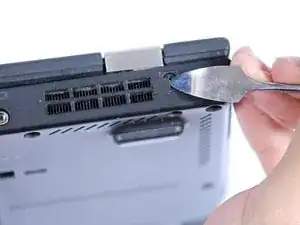

    • Flip your laptop so the back-side is facing towards you.

    • Remove any black stickers covering the screws using the nylon or metal spudger.

    • Remove the two 7mm screws using the Phillips #0 screwdriver.

  14. XNAHvCPGjcwgCcwd

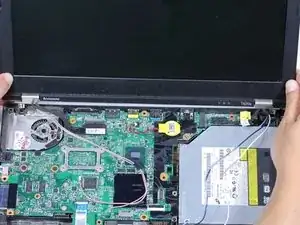

    • Remove the LCD screen unit by holding the sides and lifting it upwards.

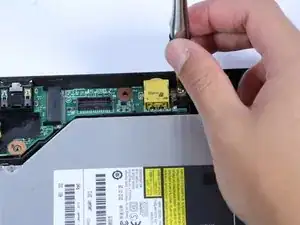

  15. GSCGJyHOY6ZiZwAM

    • Remove the 3mm screw next to the power jack using the Phillips #0.

    • Once the screw is removed, the power jack should pop up.

    what is the name of the power jack? Is there a place where i can buy the power jack on the card so i dont have to soder?

    adriankrogstadnome -

  16. ZmTmxeEnhZCoGSoV

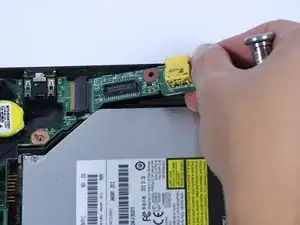

    • Lift the power jack and slide to the right to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
