Lenovo ThinkPad T431S Charging Port Replacement

Geschrieben von: Christine Portanova
  • Kommentare: 1
Lenovo ThinkPad T431S Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

6 Minuten

Einleitung

This guide will show you how to locate and replace the Lenovo T431s charging port. The charging port is crucial for charging your computer’s battery. If you are experiencing charging problems, loose port, or unresponsiveness, then you may need to replace your charging port.

  1. 3pPLQmxm3WjAVVFN
    3pPLQmxm3WjAVVFN
    v4kwDSIhJ3Z5tZyi

    • Remember before starting any disassembly, to prevent electric shock or harm, disconnect from any external power source and make sure device is powered off.

    • Use a Phillips #1 screwdriver bit to remove eight 5.0 mm screws from the back panel.

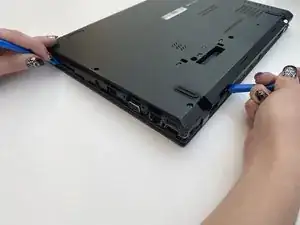

    • After loosening the screws, use the three opening tools to take the back panel off of the rest of the device.

  2. ofD5v4hEKfWmyyFD
    ofD5v4hEKfWmyyFD
    L1DtlMVSifiPJsuS

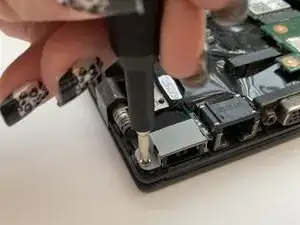

    • Unscrew the single, 3.0 mm screw with a Phillips #1 screwdriver bit that holds the charging port housing into place.

  3. rnKOWuvyUYHRAvBd
    rnKOWuvyUYHRAvBd
    Y5dthik6ZglCpG21

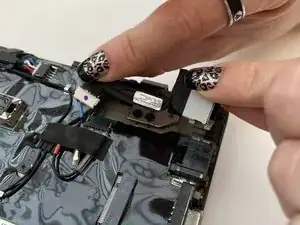

    • Remove the small, white connector cable by prying it from the connector with a plastic opening tool.

    • Remove the charging port assembly.

    Again, you could indicate in the text and/or photo a little better how to remove the connector.

    John Lamothe -

Abschluss

To reassemble your device, follow these instructions in reverse order.
