Lenovo ThinkPad T431S Screen Replacement

Geschrieben von: Christine Portanova

Kommentare: 2

Lenovo ThinkPad T431S Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to locate and replace the Lenovo T431s screen. The screen is what gives your visuals on your computer. If you have a blotchy screen, poor visuals, or physical screen damage, you might need to replace your screen.

Werkzeuge

Schritt 1

Remember before starting any disassembly, to prevent electric shock or harm, disconnect from any external power source and make sure device is powered off.

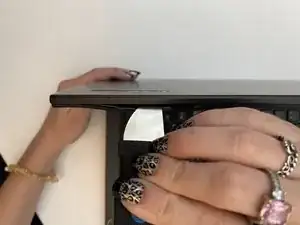

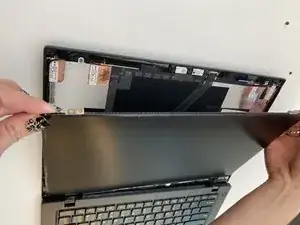

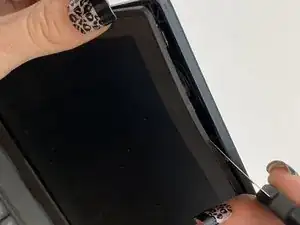

Use the Jimmy tool to remove the screen bezel with a gentle prying motion.

Schritt 2

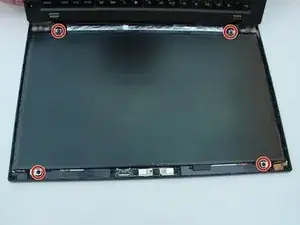

Remove the four 3.0 mm screws in the four corners of the screen with a Phillips #1 screwdriver bit.

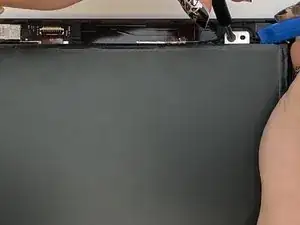

While removing the screws, pry the screen off with an opening tool.
If your screen is cracked, use caution, as there will be broken glass or sharp parts.

Good caution here.

John Lamothe - 12/03/20

Schritt 3

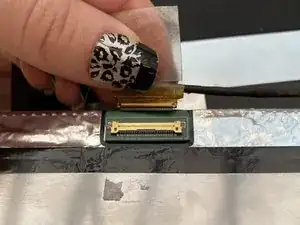

Lift screen off of top panel to reveal LCD power plug/connector.
There will be a wire attaching the screen to the rest of the device.

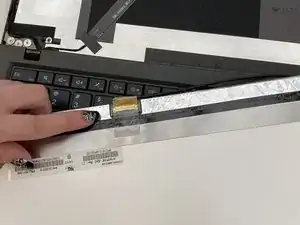

Remove the tape on the wire so you can unplug the connection, pulling upwards.
Information about disposal of your damaged screen can be found at E-Waste Recycling
