Lenovo ThinkPad T440p Display Replacement

Geschrieben von: Rasheed Adam
  • Kommentare: 1
Lenovo ThinkPad T440p Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

Display not working and needs replacing? Want to upgrade to a higher quality display? This guide will show you how to remove your T440p display to achieve just that.

Removing the display isn’t that difficult and doesn’t take too long. You’ll just need a plastic opening tool, a Phillips #0 screwdriver, and just 10 minutes of your time.

  1. 1rLeVrLLcjAMilZw
    1rLeVrLLcjAMilZw
    3AEPLSQU3FbGJGnA

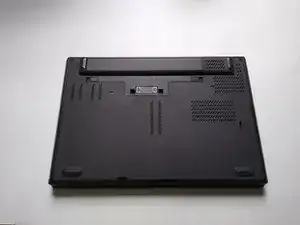

    • Flip the laptop over so that the bottom of the laptop is facing you.

  2. SEF5qpWxQmRqSnQH
    SEF5qpWxQmRqSnQH
    QVLvBGIpx4ZmT3Fe

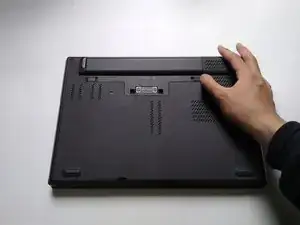

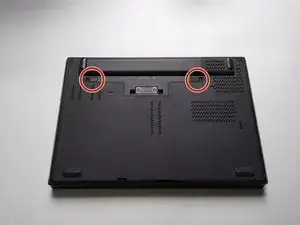

    • Slide each of the battery latches away from each other into the unlocked location.

  3. FP3LnuZdZCE2kjEw
    FP3LnuZdZCE2kjEw
    DIZ2pvk3dZEkeS1o

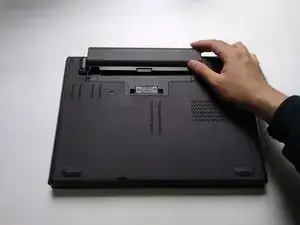

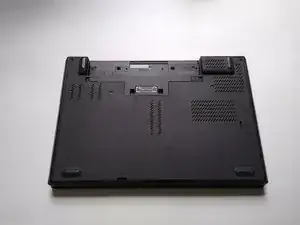

    • Slide the battery out of the battery compartment.

  4. 22E5Q5xiYmJX6r2Z
    22E5Q5xiYmJX6r2Z
    HjAOTDHQGgYrg4gg

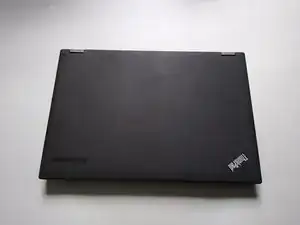

    • Flip the laptop over so that the top of the laptop faces you.

  5. QyHPaC3yq6Vglh3Z
    QyHPaC3yq6Vglh3Z
    lJ13EcQTN66YVgK2

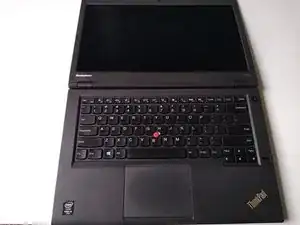

    • Lift the lid of the laptop until the top of the lid is touching the ground.

  6. kaeUsmH56xGgDeyl
    kaeUsmH56xGgDeyl
    eSeLVMifAuBuT3TN
    DMPRY1miF1vxBpYu

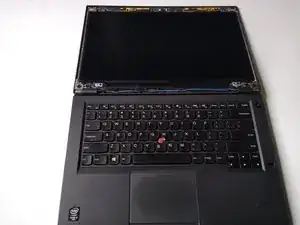

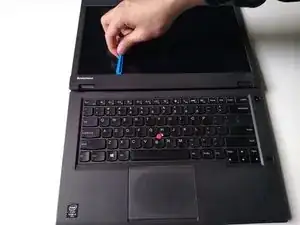

    • Carefully pry the display bezels away from the display using the plastic opening tool.

    • The edges on the underside of the bezel that touches the display may be sharp.

  7. J1MA2ec1lZFBjADB
    J1MA2ec1lZFBjADB
    2KWuV5CrR6vdI1ds

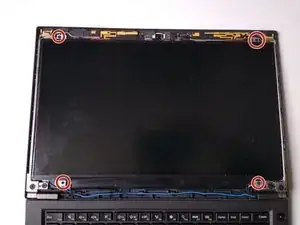

    • Use the Phillips #0 screwdriver to remove the four 3mm display screws.

  8. VTuVLdBG6Zk2MRkD

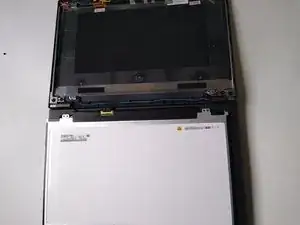

    • Carefully lift the display up and place it on the keyboard.

    • Don't remove it from the laptop. There's a cable still attached to it.

  9. IAHrIvp2aPNB6OKN
    IAHrIvp2aPNB6OKN
    XYf4WZ4qLaYNxpRR
    Gux4X4Itq3LDYDkJ

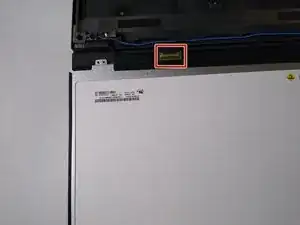

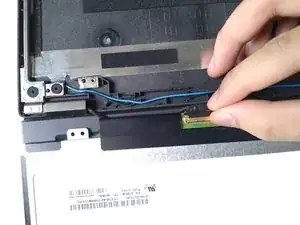

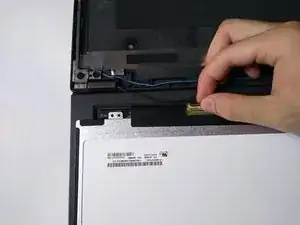

    • Locate the latch attached to the display cable.

    • Grab the latch and flip it over so that it is facing away from you.

  10. itPfMkZohEtCMqKx

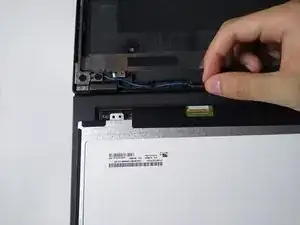

    • Gently remove the cable from the display by pulling it directly away from you.

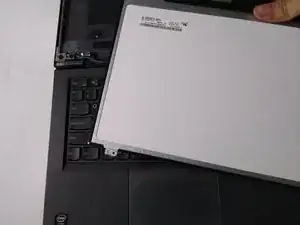

  11. hdWWYHhGBi1prB1P
    hdWWYHhGBi1prB1P
    VtaXLPKMyxp6dEbp

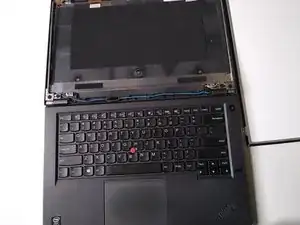

    • Remove the display from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
