Lenovo ThinkPad T440p Fan Replacement

Geschrieben von: Christian Abad
  • Kommentare: 0
Lenovo ThinkPad T440p Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

6 Minuten

Einleitung

The fan is critical to keeping you computer cool and preventing overheating within the Lenovo ThinkPad T440p. When replacing, be sure to only loosen the screws of the heat sink as they are attached to the component. This guide does not require any difficult steps but be careful when removing cables. Make sure to use a spudger and not any tool containing metals or sharp points as it could damage the cable.

  1. ksusH3IDUnrrJvCF

    • Flip the laptop so that the back is facing up.

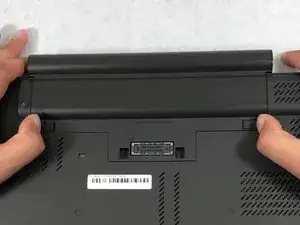

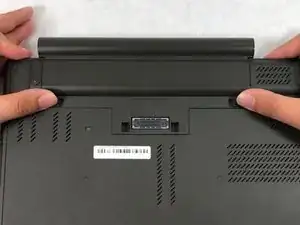

  2. 1eRdgiumIRcw5Tsq
    1eRdgiumIRcw5Tsq
    dDnKAtcTColIODed

    • Slide the battery latches to the unlocked position.

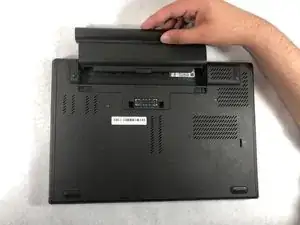

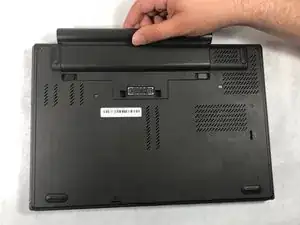

  3. XZwXNgqoVPPbBGU4
    XZwXNgqoVPPbBGU4
    vyWtOfI6GgUUOFiH

    • Slide the battery pack out of the battery slot.

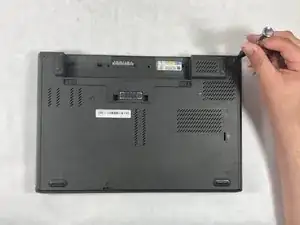

  4. pQeOjNUJNlygihtI
    pQeOjNUJNlygihtI
    q6WB6awCXUkUrJ6p

    • Use a Phillips #1 screwdriver to remove the two 9mm screws holding the back cover.

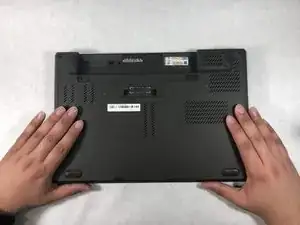

  5. 1eT2CjLvOIVXY4lq

    • Slide down the back cover.

  6. kqPxtExYtrPDdlDy

    • Remove the back cover.

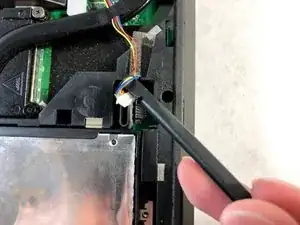

  7. 62MXYmAFF1lUmfly
    62MXYmAFF1lUmfly
    6G2PhjraRL1gYltY

    • Using the spudger detach the cable that is connected to the computer.

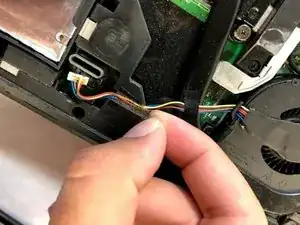

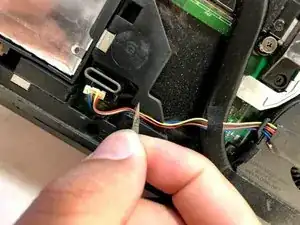

  8. SLHTVqSXgLcN3ojD
    SLHTVqSXgLcN3ojD
    mGMJXqWylyVBRkKH

    • Remove the tape that is over the cable.

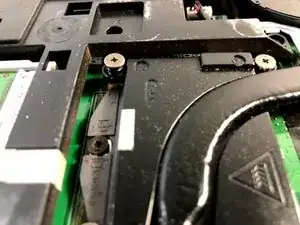

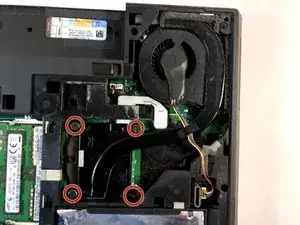

  9. DFiXSPn445otQftl
    DFiXSPn445otQftl
    AsvrhICIEUVWDOPH
    ESTLWfoLVoXPVp6I

    • Screws are attached to the heat sink. Do not try to remove them; just have the screws loosened.

    • Unscrew the four screws that are attached to the heat sink by using a Phillips #0 screwdriver.

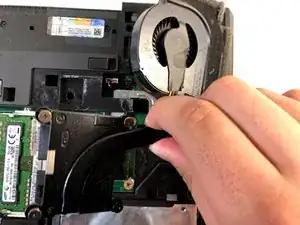

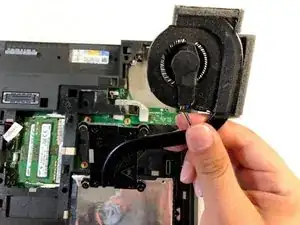

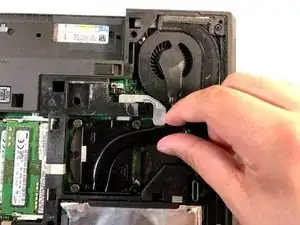

  10. OLJLwq2ShULWQaXM
    OLJLwq2ShULWQaXM
    356KdE162KPGUtGr
    dw11ANwnyAqFXLrO

    • Remove the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
