Lenovo ThinkPad T440p Hard Drive Replacement

Geschrieben von: Christian Abad
  • Kommentare: 0
Lenovo ThinkPad T440p Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

4 Minuten

Einleitung

The hard drive is primarily used for the Lenovo ThinkPad T440p’s storage. If your computer is slow, it most likely needs replacing. The replacement is simple and will only require unscrewing screws and using a spudger to lift the hard drive out.

  1. ksusH3IDUnrrJvCF

    • Flip the laptop so that the back is facing up.

  2. 1eRdgiumIRcw5Tsq
    1eRdgiumIRcw5Tsq
    dDnKAtcTColIODed

    • Slide the battery latches to the unlocked position.

  3. XZwXNgqoVPPbBGU4
    XZwXNgqoVPPbBGU4
    vyWtOfI6GgUUOFiH

    • Slide the battery pack out of the battery slot.

  4. pQeOjNUJNlygihtI
    pQeOjNUJNlygihtI
    q6WB6awCXUkUrJ6p

    • Use a Phillips #1 screwdriver to remove the two 9mm screws holding the back cover.

  5. 1eT2CjLvOIVXY4lq

    • Slide down the back cover.

  6. kqPxtExYtrPDdlDy

    • Remove the back cover.

  7. pHQ4dDT4We3YdXPc

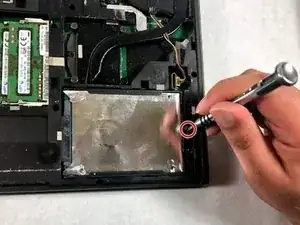

    • Use a Phillips #0 screwdriver to remove one screw holding the hard drive.

  8. JRjE5j4bWOpZdxe3
    JRjE5j4bWOpZdxe3
    R2J11lZMHoxx1Xdx

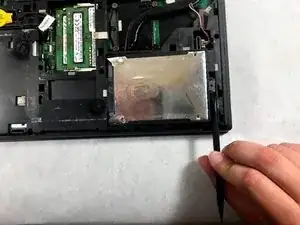

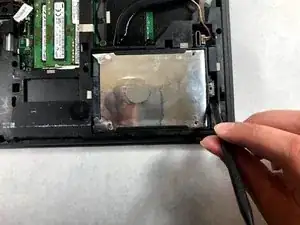

    • Place the spudger underneath the hard drive mount and lift it up.

  9. Y5BD4iA2tF5QQtmt
    Y5BD4iA2tF5QQtmt
    yY1FTovcs5NiEpDA

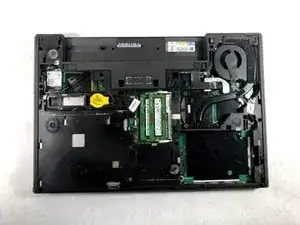

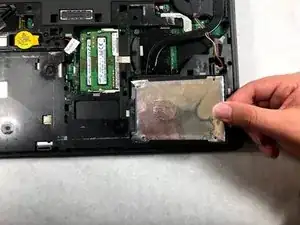

    • Remove the hard drive.

  10. HONMvTyKQ6pr1gjx
    HONMvTyKQ6pr1gjx
    SGM5kJpQpGN3AG3F

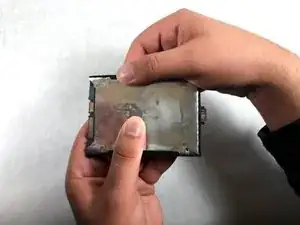

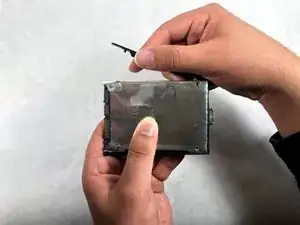

    • Remove the hard drive from the plastic mount.

Abschluss

To reassemble your device, follow these instructions in reverse order.
