Use this guide to replace the camera/microphone module cable in a Lenovo ThinkPad T460.
The built-in webcam (also called a laptop camera) in this laptop is integrated with the webcam. If you are experiencing issues with the webcam and microphone and have ruled out the camera/microphone module itself as the issue, you may need to replace your laptop’s camera/microphone module cable.
Make sure to disable the internal battery, power down your device, and disconnect from any external power sources before you begin.
-
-
Place the laptop so that the bottom is facing upwards.
-
Slide the latch on the left side of the battery to the left until it clicks in place.
-
-
-
Slide the latch on the right side of the battery to the right and hold it in place with your thumb.
-
Use your other hand to slide the battery towards the back of the laptop.
-
Lift the battery up and away from the laptop.
-
-
-
Insert the flat end of a spudger in between the bottom cover and the rest of the laptop, starting in the lower left corner.
-
Pry the lower left corner of the bottom cover up by a few millimeters.
-
Slide the spudger along the bottom of the laptop to release the clips until you reach the lower right corner.
-
-
-
Use the spudger to pry the upper left corner up by a few millimeters.
-
Pry up the sections of the bottom cover with printed logos of the ports.
-
-
-
Use the spudger to pry up the bottom cover in the lower portion of the external battery compartment by a few millimeters.
-
-
-

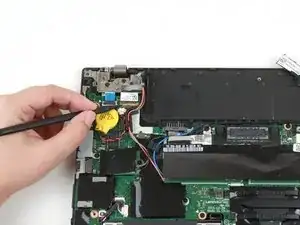

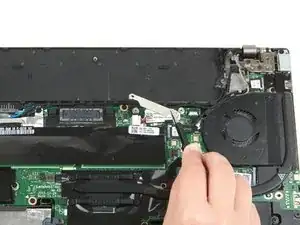

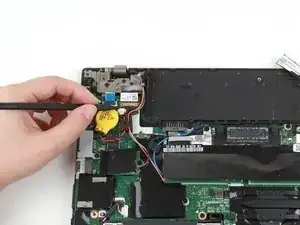

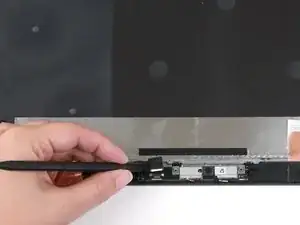

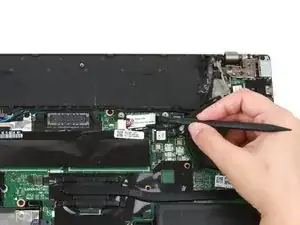

Use the pointed end of a spudger to lift up the metal clip on the camera/microphone cable.
-
-
-

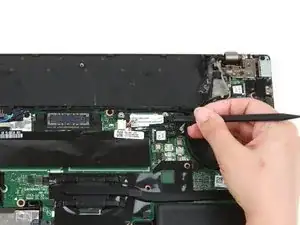

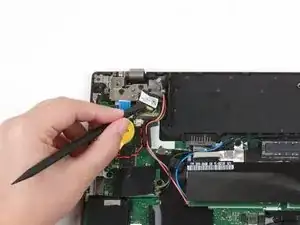

Use the flat end of a spudger to detach the camera/microphone cable connector from its socket.
-
-
-

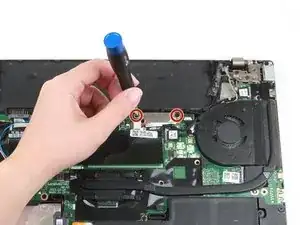

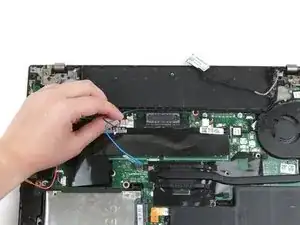

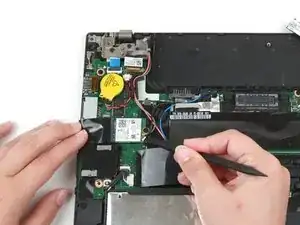

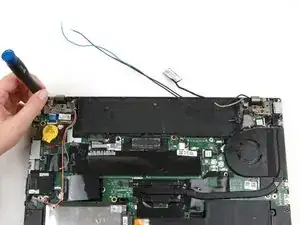

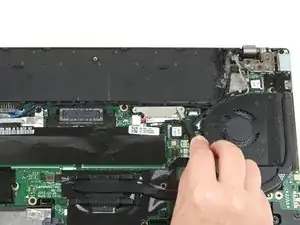

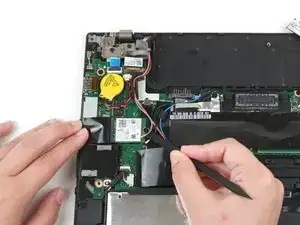

Use the flat end of a spudger to disconnect the black and gray coaxial cables from the Wi-Fi card.
-
-
-

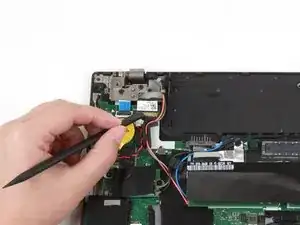

If your laptop has a WWAN card, disconnect the red and blue coaxial cables using the flat end of a spudger.
-
If your laptop does not have a WWAN card, remove the tape holding the red and blue coaxial cables in place.
-
-
-

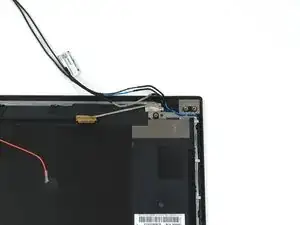

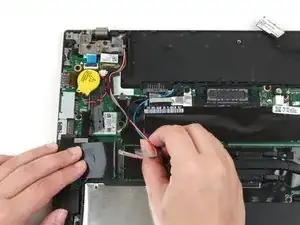

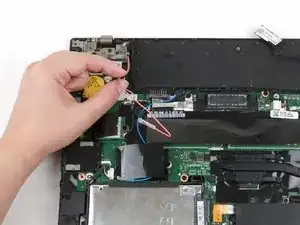

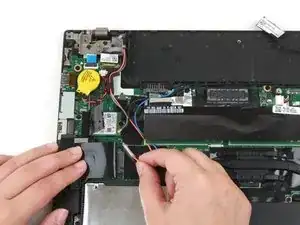

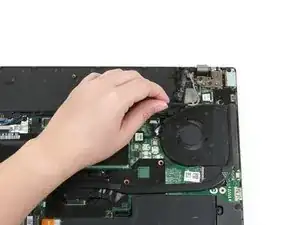

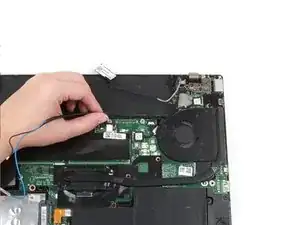

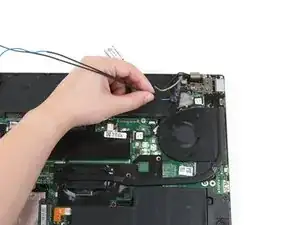

Use your fingers to remove the gray and red coaxial cables from their slots along the motherboard.
-
-
-

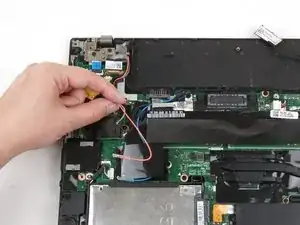

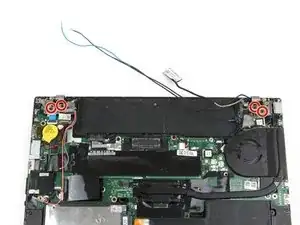

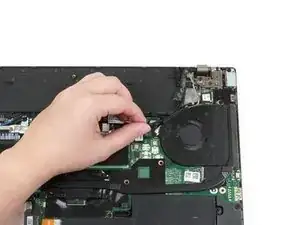

Use your fingers to remove the blue and black coaxial cables from their slots along the top of the motherboard.
-
-
-

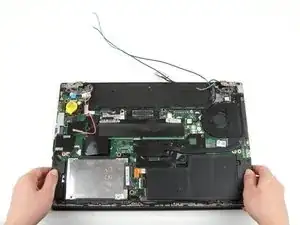

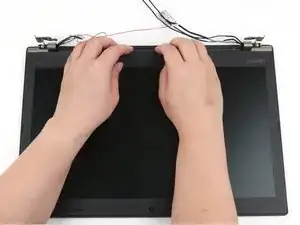

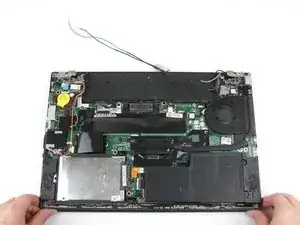

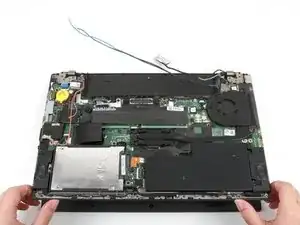

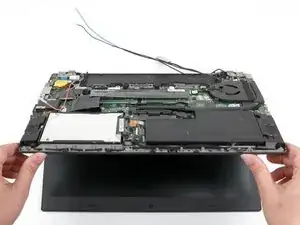

Lift the bottom of the laptop up by a few inches to rotate the two upper hinges.
-
Place the bottom of the laptop back down.
-
-
-

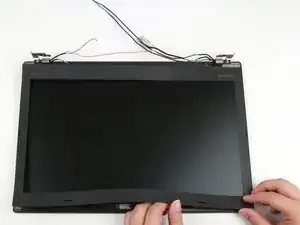

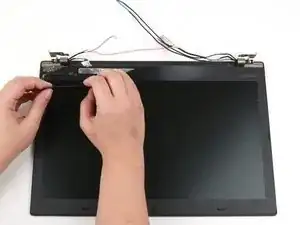

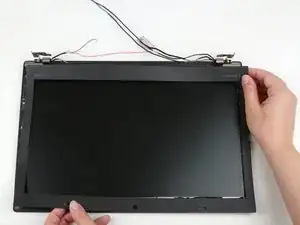

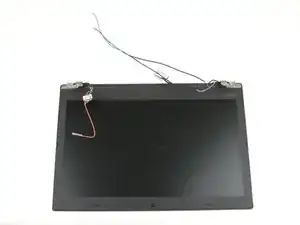

Use your hands to peel up the thin LCD bezel sheet from the rest of the display, starting in the area between the hinges.
-
Use your hands to continue peeling the bezel sheet away from the left side of the laptop.
-
-
-
Use your hands to continue peeling the bezel sheet away from the bottom and right sides of the laptop.
-

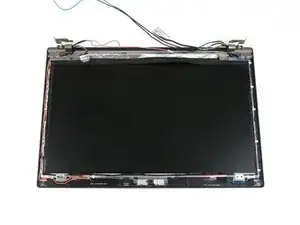

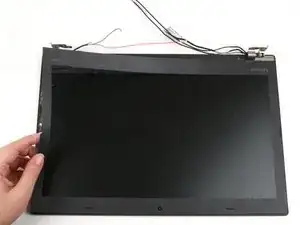

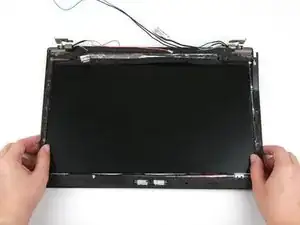

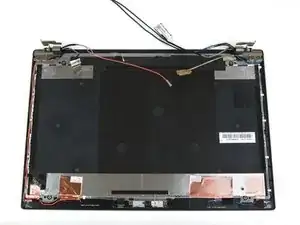

Use both hands to lift the LCD bezel sheet up and away from the laptop.
-
-
-

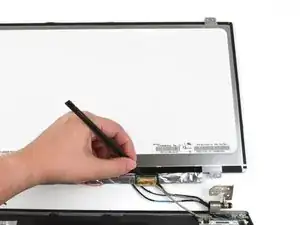

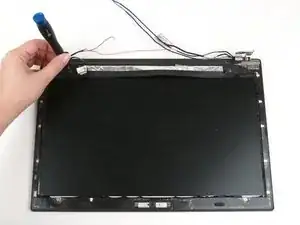

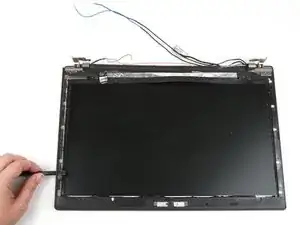

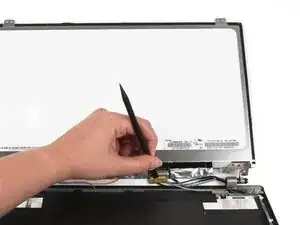

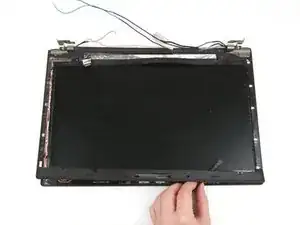

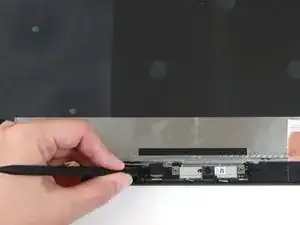

Use the flat end of a spudger to create a gap between the bezel and the display, starting in the upper left corner.
-

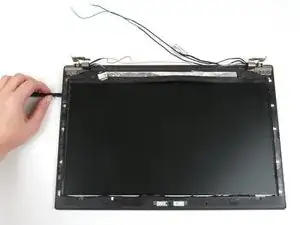

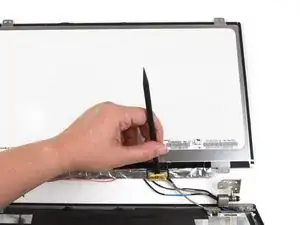

Continue to use the spudger around the left side, bottom, and right side of the laptop to detach the clips securing the bezel to the display.
-
-
-

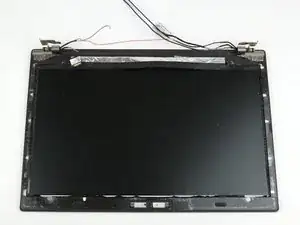

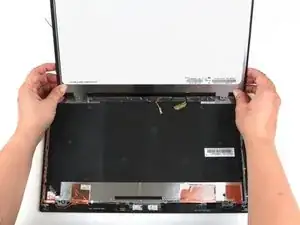

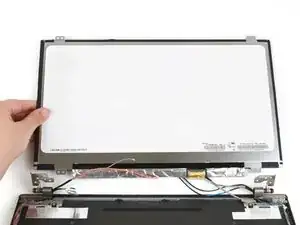

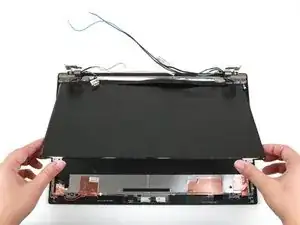

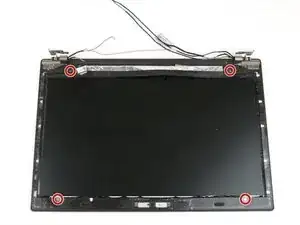

Use both hands to lift the bottom corners of the display panel
-
Gently flip the display panel over.
-
-
-

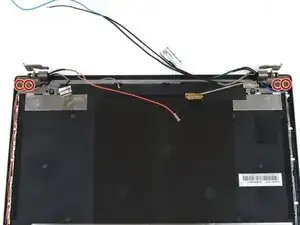

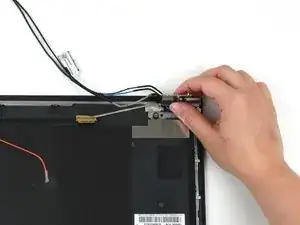

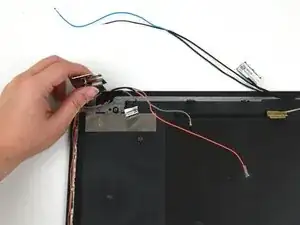

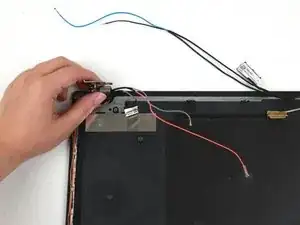

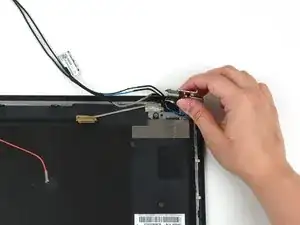

Use your fingers to lift the hinge in the upper right corner up and away from the laptop.
-
-
-

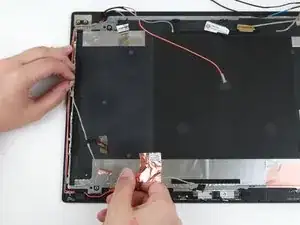

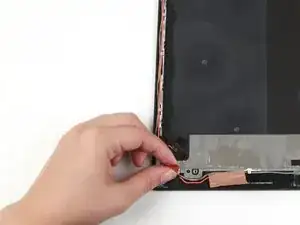

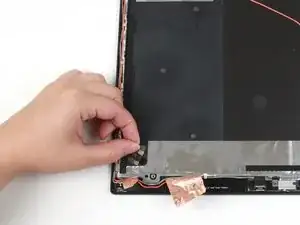

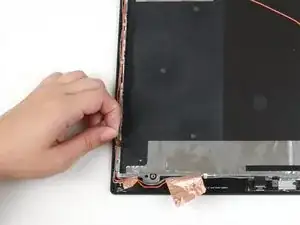

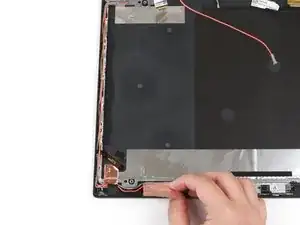

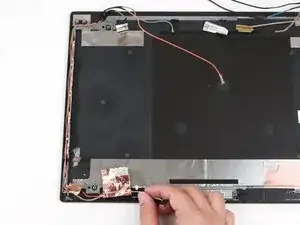

Use your fingers to peel the large copper tape up from the display assembly in the bottom left-hand corner.
-
-
-

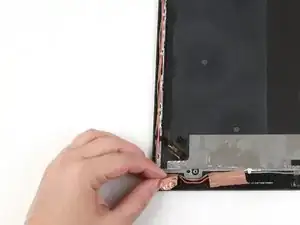

Use your fingers to peel the small copper tape up from the display assembly in the bottom left-hand corner.
-
-
-

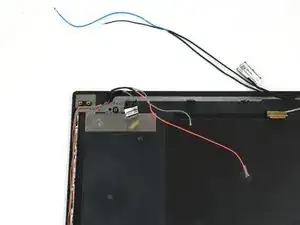

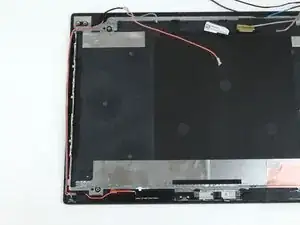

Use one hand to lift up the gray cable from the laptop.
-
Use your other hand to remove the gray wire from its slots along the left side of the display assembly.
-
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
