Lenovo ThinkPad T460 Charging Port Replacement

Place the laptop so that the bottom is facing upwards.

Slide the latch on the left side of the battery to the left until it clicks in place.

Slide the latch on the right side of the battery to the right and hold it in place with your thumb.

Use your other hand to slide the battery towards the back of the laptop.

Lift the battery up and away from the laptop.

Loosen the eight captive screws in the bottom cover using a Phillips #1 screwdriver.

Insert the flat end of a spudger in between the bottom cover and the rest of the laptop, starting in the lower left corner.

Pry the lower left corner of the bottom cover up by a few millimeters.

Slide the spudger along the bottom of the laptop to release the clips until you reach the lower right corner.

Slide the spudger along the right and top sides of the bottom cover to release the clips.

Use the spudger to pry the upper left corner up by a few millimeters.

Pry up the sections of the bottom cover with printed logos of the ports.

Use the spudger to pry up the bottom cover in the lower portion of the external battery compartment by a few millimeters.

Use both hands to lift the bottom cover up and away from the laptop.

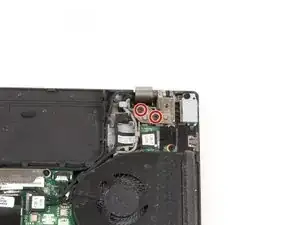

Remove two 4.7 mm screws from the hinge in the upper right-hand corner using a Phillips #1 screwdriver.

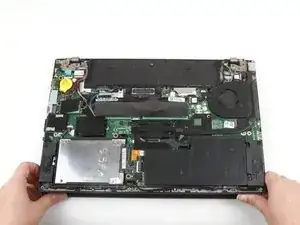

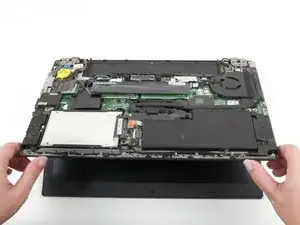

Lift the bottom of the laptop up by a few inches to rotate the upper right hinge.

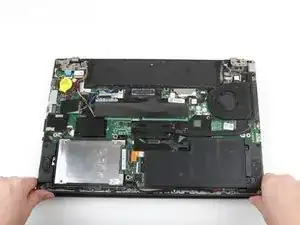

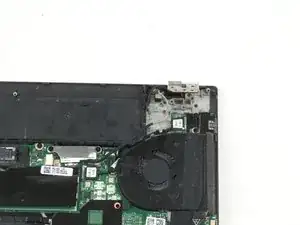

Place the bottom of the laptop back down.

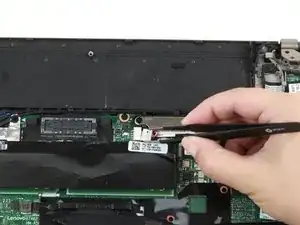

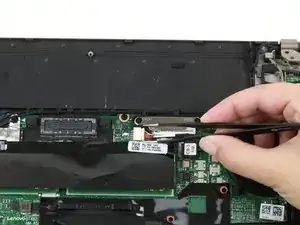

Use a pair of blunt nose tweezers to pull the white connector out of its socket.

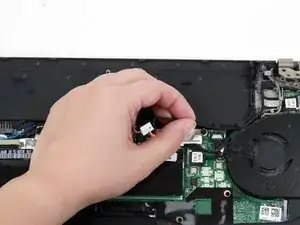

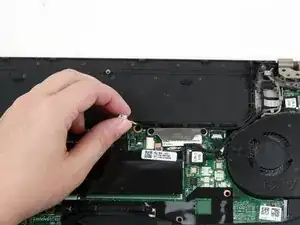

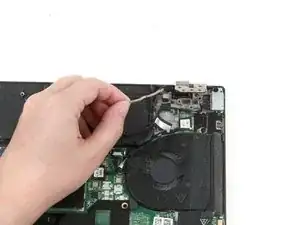

Use your fingers to remove the black cable from its slots above the motherboard.

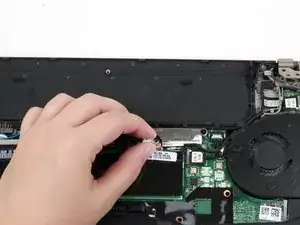

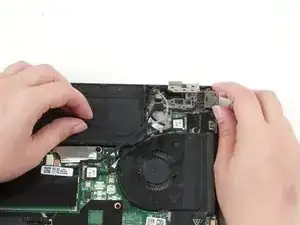

Use your fingers to lift the gray cable out of its slots.

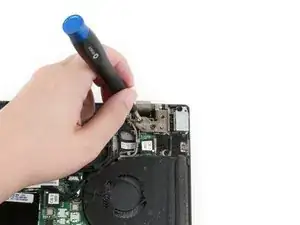

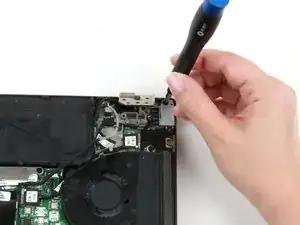

Remove the single 4.7 mm screw from the charging port bracket using a Phillips #1 screwdriver.

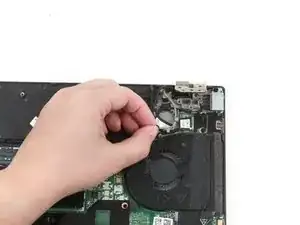

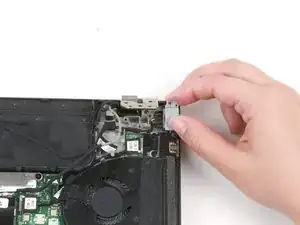

Use your fingers to remove the charging port bracket from the laptop.

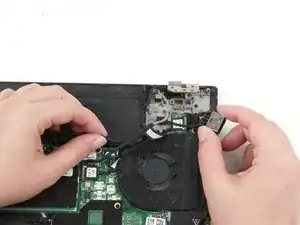

Use your fingers to slide the charging port out from beneath the gray cable to remove it from the laptop.
