Lenovo ThinkPad T460 Coin Cell Battery Replacement

Geschrieben von: Kristen Gismondi
  • Kommentare: 0
Lenovo ThinkPad T460 Coin Cell Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

15 - 20 Minuten

Einleitung

Use this guide to replace the coin cell battery in your Lenovo ThinkPad T460.

A coin cell battery, also called a CMOS battery, provides power to the BIOS firmware (contained on the motherboard) which is responsible for remembering specific information such as the computer’s date, time, and BIOS settings when the laptop is turned off.

When the coin cell battery fails, an error message will appear when you power on your laptop.

Make sure to disable the internal battery, power down your device, and disconnect from any external power sources before you begin.

  1. hpGBLDjKCJOAmOhp
    hpGBLDjKCJOAmOhp
    nVEmNtOLUmvCRuxI
    KXrNpWJaYJPtKlUh

    • Before you begin this guide, make sure to disable the internal battery, power down your device, and disconnect from any external power sources.

    • Place the laptop so that the bottom is facing upwards.

    • Slide the latch on the left side of the battery to the left until it clicks in place.

  2. 2XWHAAAk5aRY3BQV
    2XWHAAAk5aRY3BQV
    sgvRkAHRYSkDSJTx
    SM4Ogc4Z5LSH3IfF

    • Slide the latch on the right side of the battery to the right and hold it in place with your thumb.

    • Use your other hand to slide the battery towards the back of the laptop.

    • Lift the battery up and away from the laptop.

  3. fJAPIITqhnHVPha4
    fJAPIITqhnHVPha4
    rwxpCLeElhMO4mTL

    • Loosen the eight captive screws in the bottom cover using a Phillips #1 screwdriver.

  4. EhKT3cNUv5X5iyZS
    EhKT3cNUv5X5iyZS
    5pFBdiIBNnCjeOF3
    OMTnCkNweBXQPVAG

    • Insert the flat end of a spudger in between the bottom cover and the rest of the laptop, starting in the lower left corner.

    • Pry the lower left corner of the bottom cover up by a few millimeters.

    • Slide the spudger along the bottom of the laptop to release the clips until you reach the lower right corner.

    • You may hear some snapping noises as the clips are released.

  5. qZwtknGXRD1PjfGp
    qZwtknGXRD1PjfGp
    jJZ16u4lDwoyXlaU

    • Slide the spudger along the right and top sides of the bottom cover to release the clips.

    • You may hear some snapping noises as the clips are released.

    • Potential for device damage: If the clips do not release easily, check to ensure that the captive screws are fully loosened. Forcing the clips to detach can crack the bottom cover.

  6. MJKPDKiCCtb1hUIW
    MJKPDKiCCtb1hUIW
    ZOTL1WgX1W5e6HF3

    • Use the spudger to pry the upper left corner up by a few millimeters.

    • Pry up the sections of the bottom cover with printed logos of the ports.

    • Potential for device damage: Prying inside the ports themselves can damage your laptop. Be sure to only pry up on the sections of the cover that extend past the ports.

  7. KH1EpFUDcRAWNgBc
    KH1EpFUDcRAWNgBc
    gFHT5lrXqHwjvojq

    • Use the spudger to pry up the bottom cover in the lower portion of the external battery compartment by a few millimeters.

  8. PXAlHYCI2dgVnfIR
    PXAlHYCI2dgVnfIR
    DZlWteBTPOcMcdTj
    Ob1hlBRQeQFTcalZ

    • Use both hands to lift the bottom cover up and away from the laptop.

  9. MokpPkUpgZuGktQG
    MokpPkUpgZuGktQG
    U1JTatTSkJhjf1wv

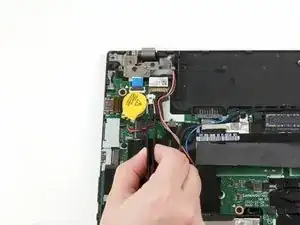

    • Use a pair of blunt nose tweezers to pull the white connector out of its socket.

    • This connector may be difficult to remove. You can use a pair of tweezers to gently rock the connector back and forth until it is free from the socket.

  10. GMTA32IFEaADKEvo
    GMTA32IFEaADKEvo
    iiTYLQEl43IK1j6a

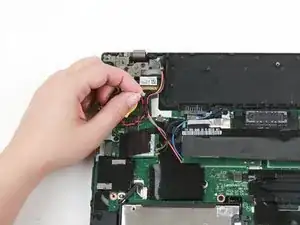

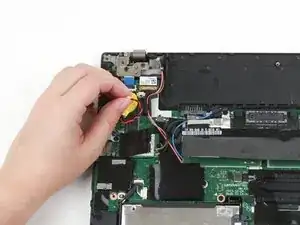

    • Use your fingers to pull the red and black bundled wire from its slot.

  11. xQH3LLXoC6IfYTRV
    xQH3LLXoC6IfYTRV
    WYpuZqvYUW42lJdw

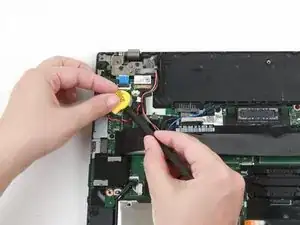

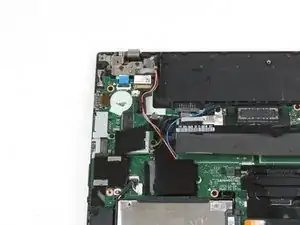

    • Pry the battery up using the flat end of a spudger.

    • You may need to loosen the adhesive underneath the battery with the spudger before the battery can be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
