Use this guide to replace the hard drive in your Lenovo ThinkPad T460 laptop.
A hard drive (also known as a hard disk drive, HDD, or hard disk) is a storage component in a computer. Hard drives use spinning disks and moveable parts, as opposed to the flash memory used in an SSD. Signs of a failing hard drive may include clicking or grinding noises, disappearing data, computer crashes, and an inability for your computer to recognize the hard drive.
If you are able to recover any data saved to your hard drive, be sure to back up your files before beginning this guide. Also, make sure to disable the internal battery, power down your device, and disconnect from any external power sources before you begin.
Werkzeuge
Ersatzteile
-
-
Place the laptop so that the bottom is facing upwards.
-
Slide the latch on the left side of the battery to the left until it clicks in place.
-
-
-
Slide the latch on the right side of the battery to the right and hold it in place with your thumb.
-
Use your other hand to slide the battery towards the back of the laptop.
-
Lift the battery up and away from the laptop.
-
-
-
Insert the flat end of a spudger in between the bottom cover and the rest of the laptop, starting in the lower left corner.
-
Pry the lower left corner of the bottom cover up by a few millimeters.
-
Slide the spudger along the bottom of the laptop to release the clips until you reach the lower right corner.
-
-
-
Use the spudger to pry the upper left corner up by a few millimeters.
-
Pry up the sections of the bottom cover with printed logos of the ports.
-
-
-
Use the spudger to pry up the bottom cover in the lower portion of the external battery compartment by a few millimeters.
-
-
-

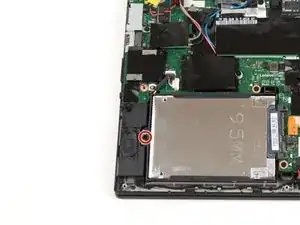

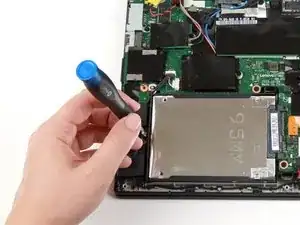

Remove the single 3.7 mm screw from the left side of the hard drive using a Phillips #1 screwdriver.
-
-
-

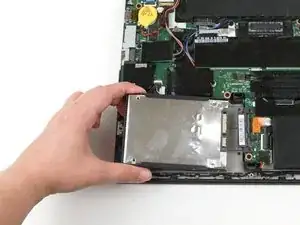

Use your hand to lift up the hard drive by a few millimeters.
-

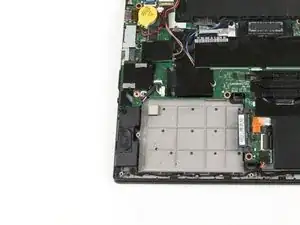

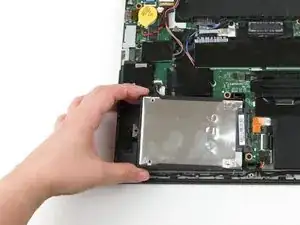

Pull the hard drive to the left to detach it from its connector, removing it from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
