Lenovo ThinkPad T460 Smart Card Reader Replacement

Geschrieben von: Kristen Gismondi
  • Kommentare: 0
Lenovo ThinkPad T460 Smart Card Reader Replacement

Schwierigkeitsgrad

Easy

Schritte

20

Zeitaufwand

30 - 35 Minuten

Einleitung

Use this guide to replace the smart card reader in a Lenovo ThinkPad T460.

The smart card reader’s job is to read a smart card, which is a device used to store data and provide login authentication.

If you cannot retrieve data or log in to your laptop using a smart card, or if you are experiencing error messages when using a smart card, you may need to replace your laptop’s smart card reader.

Make sure to disable the internal battery, power down your device, and disconnect from any external power sources before you begin.

  1. hpGBLDjKCJOAmOhp
    hpGBLDjKCJOAmOhp
    nVEmNtOLUmvCRuxI
    KXrNpWJaYJPtKlUh

    • Before you begin this guide, make sure to disable the internal battery, power down your device, and disconnect from any external power sources.

    • Place the laptop so that the bottom is facing upwards.

    • Slide the latch on the left side of the battery to the left until it clicks in place.

  2. 2XWHAAAk5aRY3BQV
    2XWHAAAk5aRY3BQV
    sgvRkAHRYSkDSJTx
    SM4Ogc4Z5LSH3IfF

    • Slide the latch on the right side of the battery to the right and hold it in place with your thumb.

    • Use your other hand to slide the battery towards the back of the laptop.

    • Lift the battery up and away from the laptop.

  3. fJAPIITqhnHVPha4
    fJAPIITqhnHVPha4
    rwxpCLeElhMO4mTL

    • Loosen the eight captive screws in the bottom cover using a Phillips #1 screwdriver.

  4. EhKT3cNUv5X5iyZS
    EhKT3cNUv5X5iyZS
    5pFBdiIBNnCjeOF3
    OMTnCkNweBXQPVAG

    • Insert the flat end of a spudger in between the bottom cover and the rest of the laptop, starting in the lower left corner.

    • Pry the lower left corner of the bottom cover up by a few millimeters.

    • Slide the spudger along the bottom of the laptop to release the clips until you reach the lower right corner.

    • You may hear some snapping noises as the clips are released.

  5. qZwtknGXRD1PjfGp
    qZwtknGXRD1PjfGp
    jJZ16u4lDwoyXlaU

    • Slide the spudger along the right and top sides of the bottom cover to release the clips.

    • You may hear some snapping noises as the clips are released.

    • Potential for device damage: If the clips do not release easily, check to ensure that the captive screws are fully loosened. Forcing the clips to detach can crack the bottom cover.

  6. MJKPDKiCCtb1hUIW
    MJKPDKiCCtb1hUIW
    ZOTL1WgX1W5e6HF3

    • Use the spudger to pry the upper left corner up by a few millimeters.

    • Pry up the sections of the bottom cover with printed logos of the ports.

    • Potential for device damage: Prying inside the ports themselves can damage your laptop. Be sure to only pry up on the sections of the cover that extend past the ports.

  7. KH1EpFUDcRAWNgBc
    KH1EpFUDcRAWNgBc
    gFHT5lrXqHwjvojq

    • Use the spudger to pry up the bottom cover in the lower portion of the external battery compartment by a few millimeters.

  8. PXAlHYCI2dgVnfIR
    PXAlHYCI2dgVnfIR
    DZlWteBTPOcMcdTj
    Ob1hlBRQeQFTcalZ

    • Use both hands to lift the bottom cover up and away from the laptop.

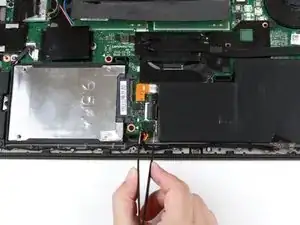

  9. jMDvHCqWJZtshNcx
    jMDvHCqWJZtshNcx
    i3XJF5HwAX3LkuJ6

    • Use a pair of blunt nose tweezers to pull the black connector out of its socket.

    • This connector may be difficult to remove. You can use a pair of tweezers to gently rock the connector back and forth until it is free from the socket.

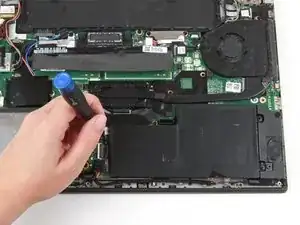

  10. SqxlVyN3pGbGnjPN
    SqxlVyN3pGbGnjPN
    wKbwAuoLkbkNcQDd

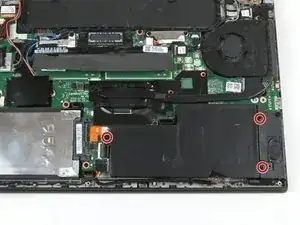

    • Remove the three 3.7 mm screws from the internal battery using a Phillips #1 screwdriver.

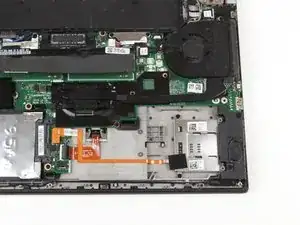

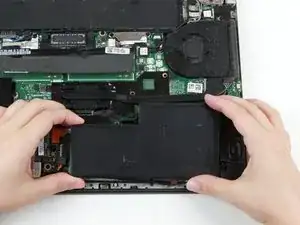

  11. yGKy2lXQkKXkrOdJ
    yGKy2lXQkKXkrOdJ
    jkEsGJStxbBnW1cS

    • Use your hands to lift the battery up and away from the laptop.

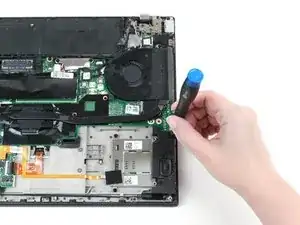

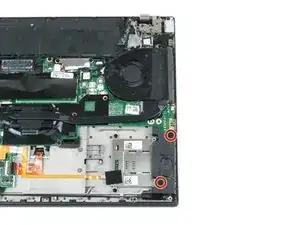

  12. h3EC5DPp5lZxbMds
    h3EC5DPp5lZxbMds
    1OQbyY4PIfD1FaHR

    • Remove two 5 mm screws from the speaker in the lower right-hand corner using a Phillips #1 screwdriver.

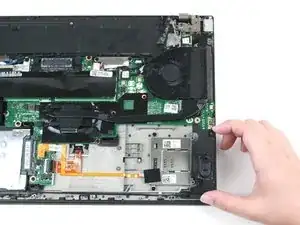

  13. hJpPSXoWdPCHvbGi
    hJpPSXoWdPCHvbGi
    BunoBUTn1fngGYsj
    NN4DgQ4hDTBt1lQH

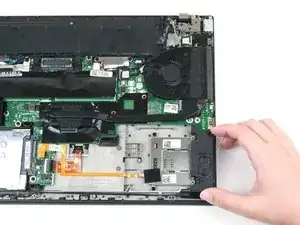

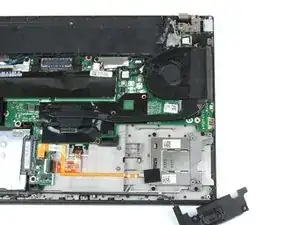

    • Use your hand to lift the speaker out of its compartment.

    • The speaker's wire will still be secured to the laptop; it is not necessary to remove the wire.

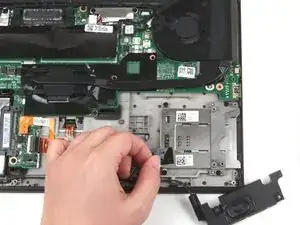

  14. nXRPTkAdsLgDj2pB
    nXRPTkAdsLgDj2pB
    Voy1Dc6xjxpwyQwQ

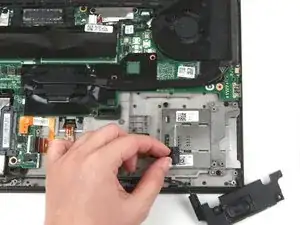

    • Use your fingers to lift the black flap up from the smart card reader cable connector.

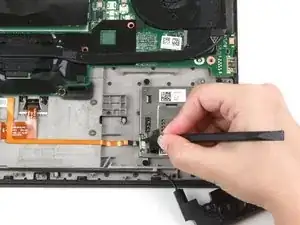

  15. tKBWRSHaGYxab2xR
    tKBWRSHaGYxab2xR
    GFWmXFjdIQIHeaxd

    • Use the pointed end of a spudger to open the white clip on the smart card reader connector.

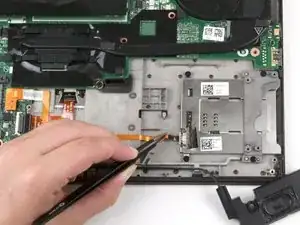

  16. A3orapksuv1vYhcs
    A3orapksuv1vYhcs
    TjoCvcuCaKchCFTX

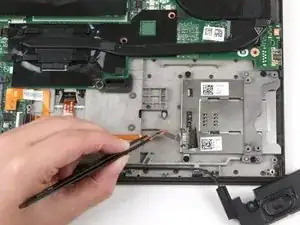

    • Use a pair of blunt nose tweezers to slide the cable out of the connector on the smart card reader.

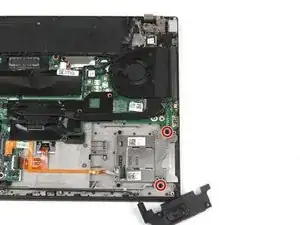

  17. mUP31xFwRGFLuF15
    mUP31xFwRGFLuF15
    hjXLGVjLGwskH6xV

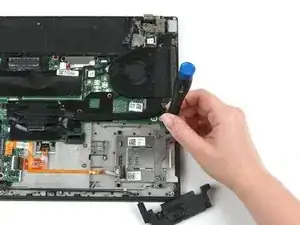

    • Remove two 3.8 mm screws from the smart card reader bracket using a Phillips #1 screwdriver.

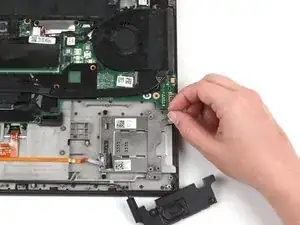

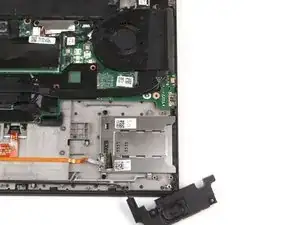

  18. NGJLvV4FSY3fGCIx
    NGJLvV4FSY3fGCIx
    2OgANOiMrFcCNLkb
    VFJAhHFUYCJI1h4A

    • Use your fingers to lift the smart card reader bracket up and away from the laptop.

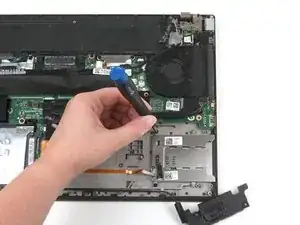

  19. NvGYEim1KCNEM1Rq
    NvGYEim1KCNEM1Rq
    RPOjLsOmNKilwnAD

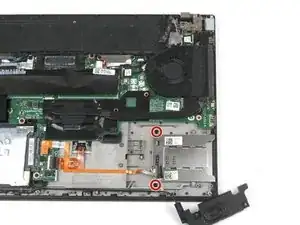

    • Remove two 3.7 mm screws from the smart card reader using a Phillips #1 screwdriver.

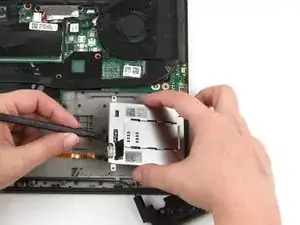

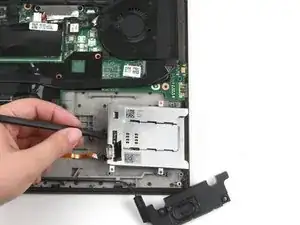

  20. Y6NPvPFvKICIoRuM
    Y6NPvPFvKICIoRuM
    ttGtEaRhLSDgwAoK
    VNEiXvvDTgDvoofI

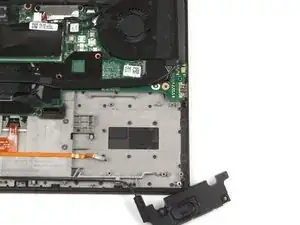

    • Use the flat end of a spudger to pry the smart card reader up by a few millimeters.

    • Use your other hand to lift the smart card reader up and away from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
