Lenovo ThinkPad T495 Battery Replacement

Geschrieben von: Christian Taylor
  • Kommentare: 0
Lenovo ThinkPad T495 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

If you've had a Lenovo ThinkPad T495 for a while, the battery may have degraded over time, as all lithium batteries do. If you have had your computer for a long time, or if you've constantly charged charged your battery then it may not last a long time anymore. If this is the case, then it is time to replace your battery. In this guide, you will be walked through the steps to do this.

  1. iAIOJ3CUr2jx1LMB

    • Use a Phillips #00 screwdriver to loosen the six captive screws.

    • The screws will stay attached to the back cover as you lift it off; do not attempt to remove them.

  2. JjXMsWIdvZBR5kdW

    • Use an iFixit opening tool to start prying under one of the hinges, between the baseplate and chassis, and work your way around the perimeter until the baseplate releases.

    • Lift off the baseplate.

  3. XuESI24iP4dOQTXY

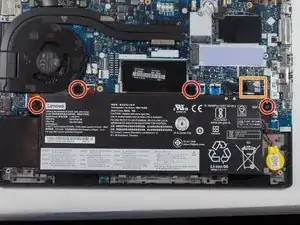

    • Use a Phillips #00 screwdriver to remove the four screws securing the battery.

    • On both sides of the plug, use your fingernails to "walk" out the battery cable connector until it releases.

  4. PZF5OuiCRvFvlIUY

    • Remove the battery by lifting it up and out with your fingers

    • The battery should lift out with no resistance. If you feel any resistance, double check that the screws are removed, and that the connector is released from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
