Lenovo ThinkPad T495 RAM Replacement

Geschrieben von: Christian Taylor
  • Kommentare: 0
Lenovo ThinkPad T495 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

25 Minuten

Einleitung

When a blue screen occurs on your Lenovo ThinkPad T495, an error code will appear somewhere on the screen, as well as a scannable QR code which can be used to diagnose what is wrong with your device. In the case of this guide, the lack of memory or faulty memory will be covered, and the stick of RAM will be replaced.

  1. iAIOJ3CUr2jx1LMB

    • Use a Phillips #00 screwdriver to loosen the six captive screws.

    • The screws will stay attached to the back cover as you lift it off; do not attempt to remove them.

  2. JjXMsWIdvZBR5kdW

    • Use an iFixit opening tool to start prying under one of the hinges, between the baseplate and chassis, and work your way around the perimeter until the baseplate releases.

    • Lift off the baseplate.

  3. jdTRAWYSADvaCsNt
    jdTRAWYSADvaCsNt
    xWfiObOhwBEmYR2K

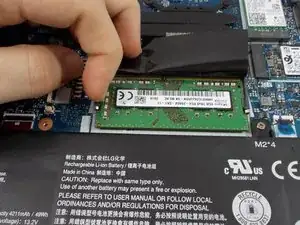

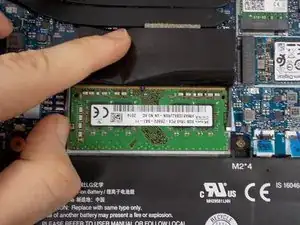

    • Lift the black flap to expose the RAM.

  4. BFOUslNDgREAS46s
    BFOUslNDgREAS46s
    An4WlTScMhfAQJnh
    TcrVbKxUFXLOu3ZR

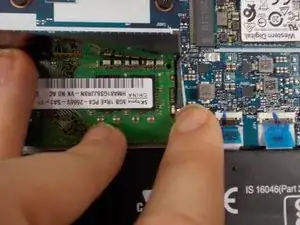

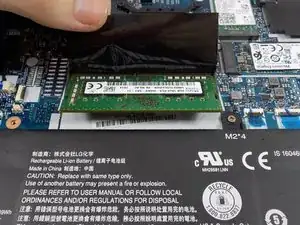

    • Use your fingers to gently pull the two arms on each side horizontally until the RAM springs up.

    • Grip the RAM between your fingers and pull it gently until it releases from the port.

    • When reinstalling the RAM, push it down vertically, toward the motherboard, until the arms audibly click, securing the RAM in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
