If you have an issue with distorted audio or none at all, then your speaker unit may be damaged or broken, and is in need of replacement. This guide will instruct you on how to replace your speaker unit for the Lenovo Thinkpad T495.
Werkzeuge
Ersatzteile
-
-
Use an iFixit opening tool to start prying under one of the hinges, between the baseplate and chassis, and work your way around the perimeter until the baseplate releases.
-
Lift off the baseplate.
-
-
-

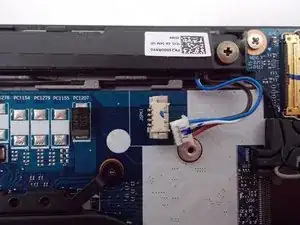

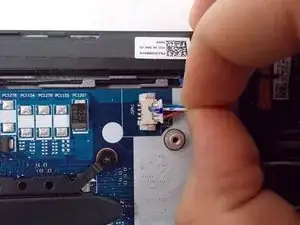

Grip the speaker cable as close as possible to its motherboard plug, and pull directly backwards, parallel to the motherboard, until the plug releases.
-
-
-

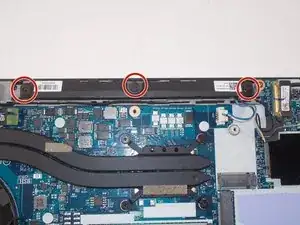

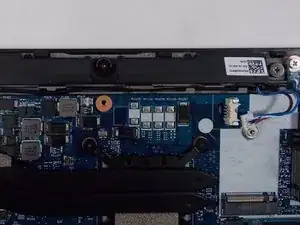

Use a Phillips #00 screwdriver to remove the three 1.6 mm screws.
-

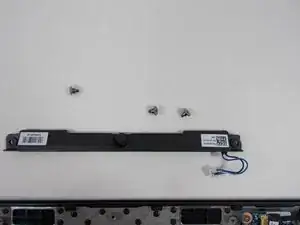

Holding both sides, lift the speaker up and out.
-
To reassemble your device, follow these instructions in reverse order.
