Lenovo ThinkPad T495s Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 Minuten

Einleitung

  1. FD5AhZMDKPCou1tR

    • Do not begin until the laptop is unplugged and completely powered off.

    • Flip the laptop over to reveal the back panel of the laptop.

  2. Mp1NQFa6io1dD1Jj
    Mp1NQFa6io1dD1Jj
    vWCIZnCkOjGIKnRw
    4sNkFaWMq63qwccU

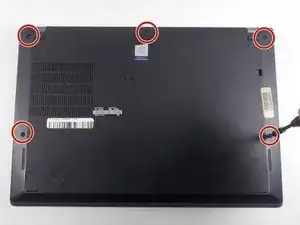

    • Loosen the five 4.0 mm captive screws with a Phillips #1 screwdriver.

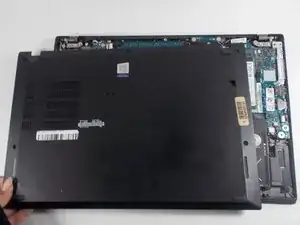

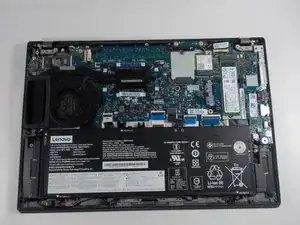

    • The screws will stay attached to the back cover as you lift it off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
