Einleitung

If you need to replace the Solid State Drive (SSD) on your Lenovo ThinkPad T495s, this is the guide for you! SSDs use flash-based memory, which is much faster than a traditional hard drive. Installing an SSD in your laptop is one of the best ways to speed up your laptop.

  1. FD5AhZMDKPCou1tR
    • Do not begin until the laptop is unplugged and completely powered off.

    • Flip the laptop over to reveal the back panel of the laptop.

  2. Mp1NQFa6io1dD1Jj
    Mp1NQFa6io1dD1Jj
    vWCIZnCkOjGIKnRw
    4sNkFaWMq63qwccU
    • Loosen the five 4.0 mm captive screws with a Phillips #1 screwdriver.

    • The screws will stay attached to the back cover as you lift it off.

  3. 2RckImLJdHxYemkX
    2RckImLJdHxYemkX
    5LpUOkmKjI23wxOV
    TvAsZGiNQyZlTgpt

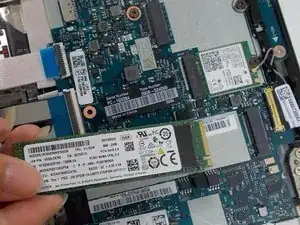

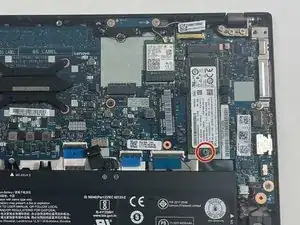

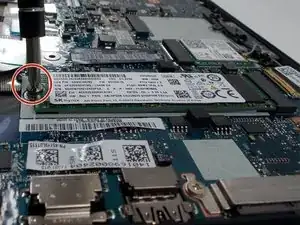

    • Use a Phillips #1 screwdriver to unscrew one 2.2 mm screw at the bottom of the SSD.

    • Use your hands to pull the SSD toward yourself, removing the SSD.

Abschluss

To reassemble your device, follow these instructions in reverse order.
