Lenovo ThinkPad T500 Keyboard Replacement

Geschrieben von: Matthew Fajardo
  • Kommentare: 0
Lenovo ThinkPad T500 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Unlike some laptops that have their keyboard built-in, Thinkpad keyboards can be easily removed in just a few steps.

  1. gMWyehTWK52UjQhJ

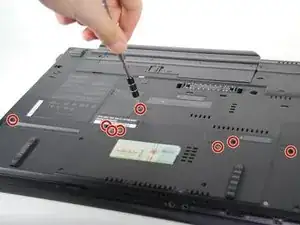

    • Remove the eight 14mm screws using the Phillips #0 Screwdriver.

  2. LaCrY2JyWCFTBPqi

    • Lift the palm rest panel.

    • Lift the palm rest panel slowly; there is a ribbon cable connected under it.

  3. XBLylmEEjvtTfGit
    XBLylmEEjvtTfGit
    3pajteIg54kRoFvu

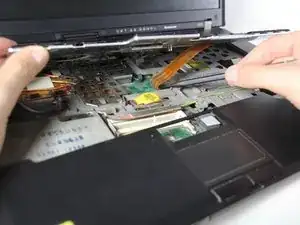

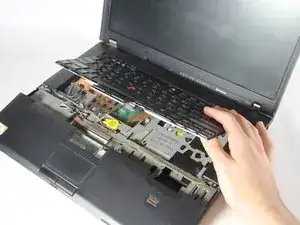

    • While lifting the panel, lift the keyboard up.

    • Be sure to lift the keyboard slowly; there is a ribbon cable attached under it.

  4. ptlmVMMHLSvX3DRq

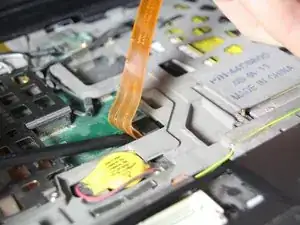

    • Use the spudger to disconnect the ribbon cable.

  5. KjgthCVx6QKWFIxl

    • Remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
