Lenovo ThinkPad T500 Screen Replacement

Geschrieben von: Brian Egana
  • Kommentare: 4
Lenovo ThinkPad T500 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. ZqCgMq5ajjhqvKMn

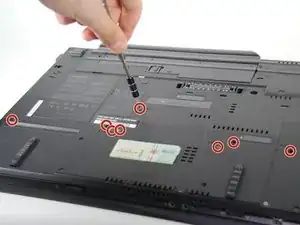

    • Remove the eight 14mm screws using the Phillips #0 Screwdriver.

  2. vFnwiSEXGyW3Nk1b

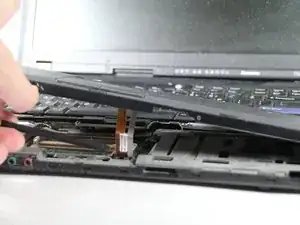

    • Lift the palm rest panel up.

    • Be sure to lift the panel slowly; there is a ribbon cable attached to the bottom.

  3. fuCnHMM2uiyhWR4C

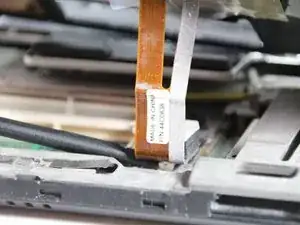

    • Use the spudger to disconnect the ribbon cable.

  4. LJmEanQBltQNnHpW

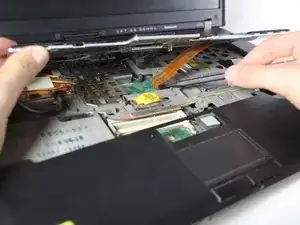

    • With the panel disconnected, lift the keyboard.

    • As with the panel, lift the keyboard slowly; there is a ribbon cable attached to the bottom.

  5. 2hatAolPTKlgjwhC

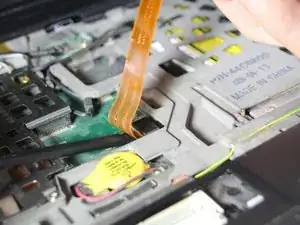

    • Disconnect the ribbon cable with the spudger.

  6. 3G4v2kkKiD43WLsc
    3G4v2kkKiD43WLsc
    IZ3gXL2OhbMwSfbg

    • Remove the keyboard and the panel.

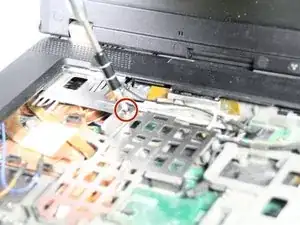

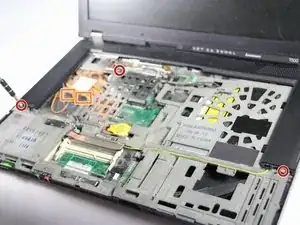

    • Using the Phillips #0 Screwdriver, remove the three 3 mm screws that are at the bottom sides and near the top-left of the speaker cover.

    • Disconnect the orange and blue cables next to the left side of the speaker cover.

  7. APL612NkBQHp3qIR

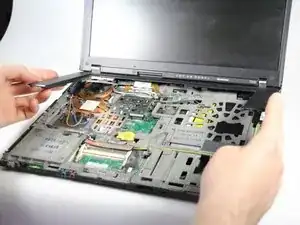

    • Remove the speaker cover.

    Per rimuovere questa parte occorre svitare altre due vito da sotto, sul lato posteriore

    Marco Bartolini -

    Yes, there is another screw or two that have to be removed from the underside of the laptop before you can remove the speaker cover.

    martin8777 -

  8. Qf3dFboRqSEkbqWb

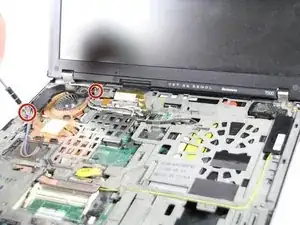

    • Remove the two 3mm screws on the left speaker with the Phillips #0 Screwdriver.

  9. imCiqkJwkcYU1WVT
    imCiqkJwkcYU1WVT
    1u2PL4FsN3wGOcaH

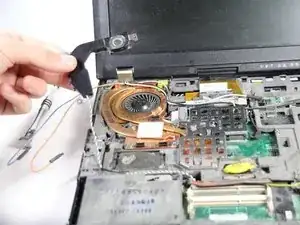

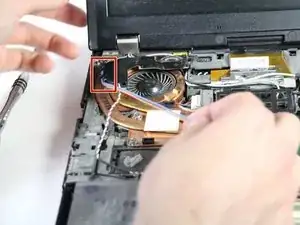

    • Detach the blue and orange cables from the left speaker's clamps.

  10. 6kmJJ1UnJIgMp6fY
    6kmJJ1UnJIgMp6fY
    TUmiZtxDlQvQIjJt

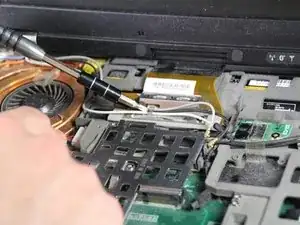

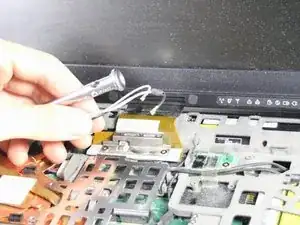

    • Using the Phillips #0 Screwdriver, lift the metal fastener up and remove the black and white wires.

  11. vH6ShdtjiDY1tX2k
    vH6ShdtjiDY1tX2k
    mR32rdYXNKdGHKYh

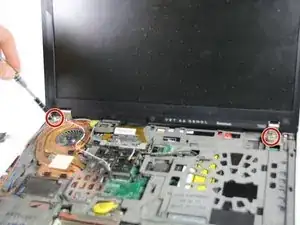

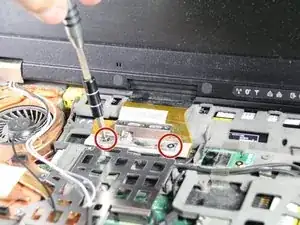

    • Remove the two 3mm screws next to the lid hinges, as well as the two 3mm screws on the lid's ribbon cable.

    Per rimuovere il display occorre svitare altre due vito da sotto, sul lato posteriore

    Marco Bartolini -

  12. RbFmEILWFAAqKlYE

    • Use the spudger to detach the screen's ribbon cable.

  13. TJmGbHFqFmGQEx5q

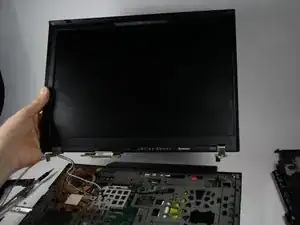

    • Remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
