Lenovo ThinkPad T530 Hard Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

3 - 5 Minuten

Einleitung

This guide should help you with removing & replacing the Lenovo ThinkPad T530 hard drive (HDD) with a new one or a solid state Drive (SSD). This is a remarkably simple repair as the HDD is designed to be accessible.

You can find the official Lenovo documentation attached as well.

  1. aksLoa3gTX12JIim
    aksLoa3gTX12JIim
    GZqb4u2gRUlfIAW2
    OMProWRsO4PA2TCQ

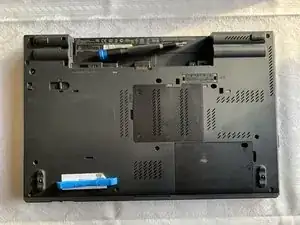

    • Before removing any parts, turn off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables. Don't turn the device on before fully reassembling it again.

    • Place it on a flat, sturdy surface and unplug the power cord.

    • Remove the battery by moving the battery latch and sliding the battery out.

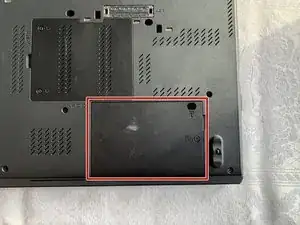

    • Locate the drive enclosure.

  2. nSEgodg2pkBsJNPW
    nSEgodg2pkBsJNPW
    RdEbIZwJQqmcDJoR

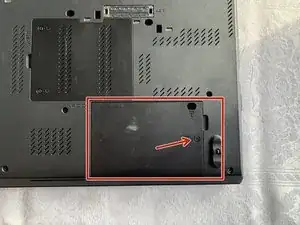

    • Use a small Philips screwdriver to unscrew the single screw that holds down the drive enclosure cover. Loosen the screw, but do not remove it.

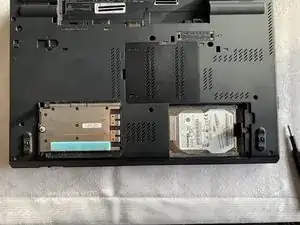

    • Carefully remove the drive enclosure cover.

  3. GLMHsfcHVp5LakG5
    GLMHsfcHVp5LakG5
    Y6GYs4wCGMJvTfCB

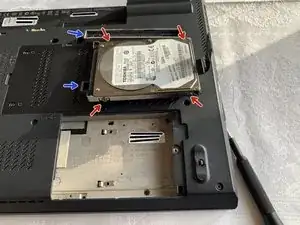

    • Slightly lift & pull on the black pull tab until the hard drive and the two rubber rails come out of the enclosure.

    • The hard drive should come out of the enclosure effortlessly.

    • Remove the two rubber rails (blue arrows) & four screws (red arrows). Those should be reused if you are replacing the HDD with a new HDD or SDD.

Abschluss

To reassemble your device, follow these instructions in reverse order.
