Einleitung
Use this guide to replace the back panel on your Lenovo Thinkpad T560.
The back panel covers most of the inside components of the Lenovo Thinkpad T560. As a result, removing the back panel is often a prerequisite step for replacing other components.
Before removing the back panel, turn off your laptop and disconnect it from any external power sources. Then, make sure to remove the external battery first. This is done by clicking the two switches inward that are on the sides of the external battery, and then sliding the external battery from the laptop. This laptop is missing the external battery so we aren't able to show you the process.
Werkzeuge
Ersatzteile
-
-

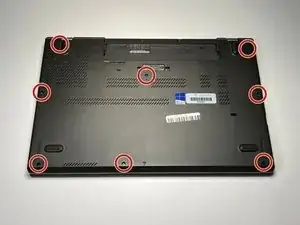

Using the Phillips #0 screwdriver, remove the eight 7 mm screws holding the back panel to the T560.
-
-
-

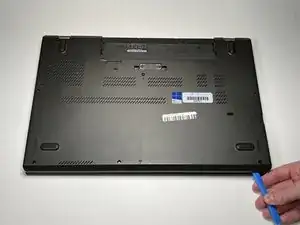

Use the iFixit opening tool to pry the back panel off your T560.
-
Work your way around the perimeter of the device to undo the clips and detach the back panel.
-
To reassemble your device, follow these instructions in reverse order.
The big problem here is where to find a new internal battery. I wish I had some suggestions to make, and would welcome possibilities. Searching on the Lenovo parts site has not proved fruitful--if you've had some success, I'd be glad to hear of it! These are pretty good computers, and battery failure is the main thing sending them to the landfill.
