Einleitung

  1. ZwOiApgcr3QbHQoe
    ZwOiApgcr3QbHQoe
    ODvxBADe6QZZ6Asc
    LnZMt2HjpiOg5uQT

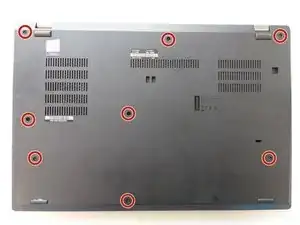

    • Unscrew the 8 screws holding the back panel in place.

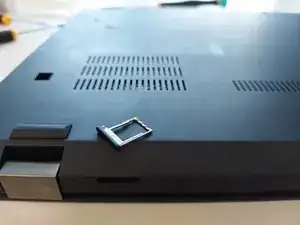

    • Pull out the SIM holder.

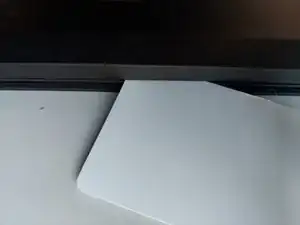

    • Use a plastic prying tool to release all the clips holding the panel in place.

  2. hkgXwc1kiBXBilHH

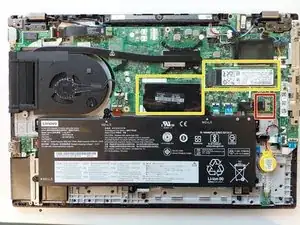

    • It is recommended to disconnect the battery.

    • Once you opened the back cover, it is a good idea to upgrade the RAM or the SSD if you want.

    • It is also recommended to use compressed air to remove any dust in the laptop and the fan.

  3. UjEwxwfb3KXLQMiq
    UjEwxwfb3KXLQMiq
    3TVFOkAujxWpr62R
    uCQh6VuCEmLnlVFS

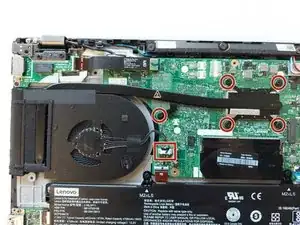

    • Unscrew the 5 screws holding the CPU cooler. Disconnect the fan cable by releasing the latch on the connector and pulling the cable out.

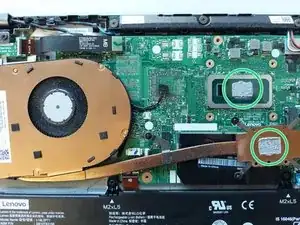

    • Clean the old thermal paste both from the cooler and the CPU. It is best to use isopropyl alcohol and cotton buds or paper towel, but be careful not to go too hard on the CPU

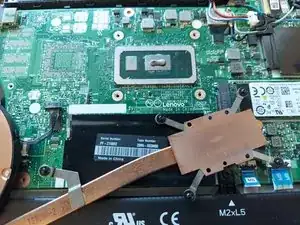

    • Once you removed the old thermal paste its time to apply new one.

    • Dont use too much thermal paste, just enough to cover some portion of the pad. If you have a spreader, use it. The thermal paste will apply evenly after you tighten the heatsink.

    • Last, put the heatsink back carefully and tighten the screws in order 1 -> 5 to ensure even pressure. Dont forget to plug in the fan cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
