Einleitung

This guide will show you how to replace broken speakers in a ThinkPad W520. Along the way, you will have a chance to upgrade or replace your RAM.

  1. MXFtIDHkDnwwBosY
    MXFtIDHkDnwwBosY
    gsjO6qamJpQkWfqk
    h5HDX1DLg3fhRoUN

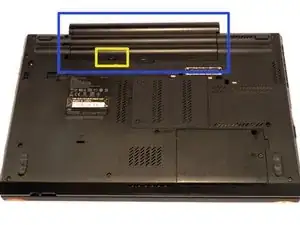

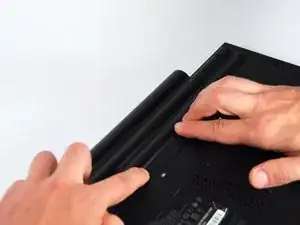

    • Make sure your laptop is unplugged and powered off.

    • Use your left hand and push the unlock switch all the way to the right.

    • Use your right hand to push the battery.

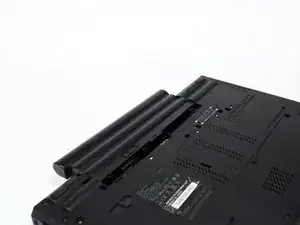

  2. pqXIbg6nUpQQvIGo
    pqXIbg6nUpQQvIGo
    1115krWUQMS23DYX

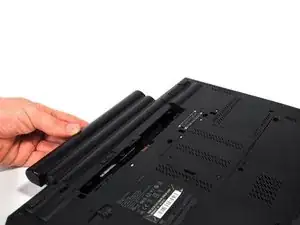

    • Slide the battery out.

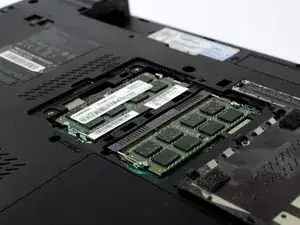

  3. qxVa6Ofx31SwNqrI
    qxVa6Ofx31SwNqrI
    tOJpySnQj4TRKmIW
    FAPtBtQcMTCLQyg6

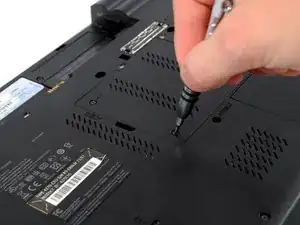

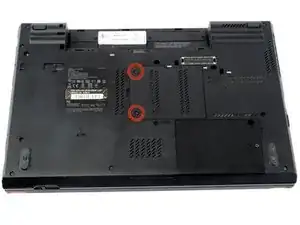

    • Unscrew the two Phillips #0 screws.

    • The screws remain attached to the cover.

    • Lift up and remove the cover.

    • Here is your first opportunity to modify your RAM configuration. This compartment can hold two DDR3 SDRAM sticks. You can install up to 8 GB sticks in each slot, allowing for an expansion of 16 GB of RAM.

    • If your laptop has a dual-core processor any RAM installed here won't function.

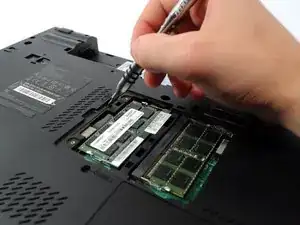

  4. RZAwOoxPHy1uANfv
    RZAwOoxPHy1uANfv
    RT2tfjVnmpOQGyOI

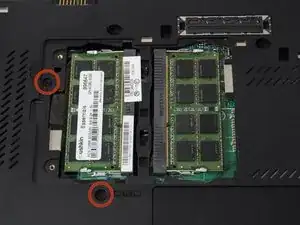

    • Remove the two 13.75 mm Phillips #0 screws.

    • These screws hold the keyboard in place.

  5. WRLYGGDKIJ6KoGON
    WRLYGGDKIJ6KoGON
    oGTbDAtCikQ6SIpV

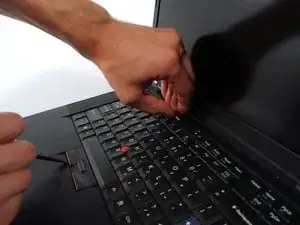

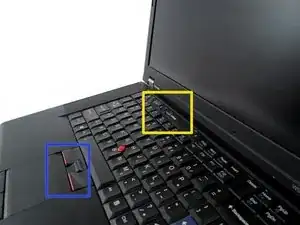

    • Flip your laptop over and open the screen.

    • This step requires both hands.

    • With your left thumb, grip the keyboard right below the blue "ThinkVantage" button. Use your other fingers as support only.

    • Using a spudger with your right hand, put pressure on one of the upper mouse buttons.

    • After your hands are in place, gently but firmly push towards the screen. The keyboard should move about 2 mm towards the screen.

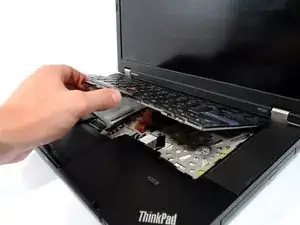

  6. NWTj3KDv46ATADCx
    NWTj3KDv46ATADCx
    hnKHtALpHh54DlQi
    2XqBDNZPQ2tCH5DM

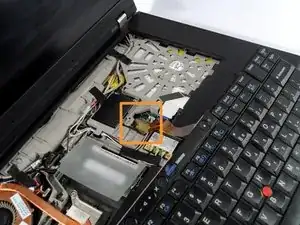

    • Gently lift the keyboard up and away from the screen.

    • Don't pull the keyboard up quickly, there is a connecting ribbon that could be damaged.

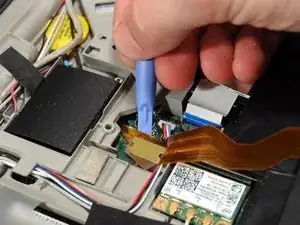

    • Using a plastic opening tool, remove the keyboard connecting ribbon from the motherboard.

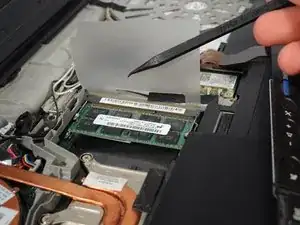

  7. 5FB2BeUcwWegFMMY
    • Here is your second chance to modify your RAM configuration. As before, there are two DDR3 SDRAM slots. Here they are stacked on each other, not side by side like the bottom. You may install up to 8 GB in each slot, allowing for 16 GB of RAM total.

    • If your computer has a dual-core processor, these are the RAM slots that will work.

  8. cFMEo4FEye1AAyAu
    cFMEo4FEye1AAyAu
    ymUBjgvGKlUBj4Gt

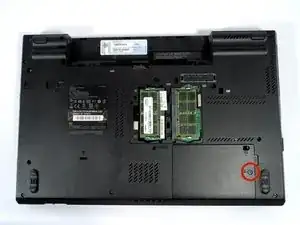

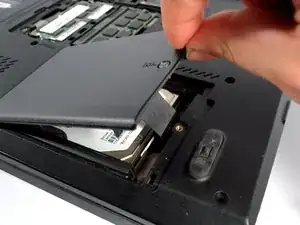

    • Unscrew the Phillips #0 screw securing the hard drive cover.

    • The screw does not detach from the cover.

    • Lift up and remove the cover.

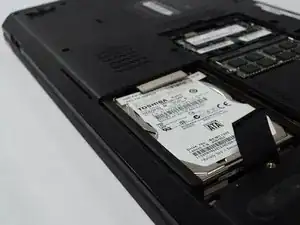

  9. AgNBo5acpomVjFnX
    AgNBo5acpomVjFnX
    XZoyglU1oY2JDmVP
    • Pull the black tab that is attached to the hard drive up and away from the laptop.

    • The hard drive should easily slide out.

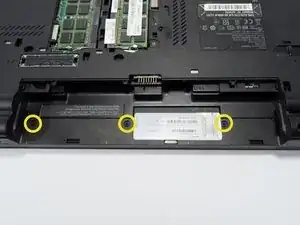

  10. rUEJhEVeNHeytcG2
    rUEJhEVeNHeytcG2
    e1audkg6ojx5RsbR
    soPFFEl51CRlPijj

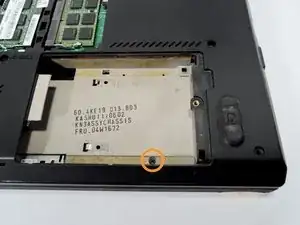

    • Remove the seven 13.75 mm Phillips #0 screws from the case.

    • Remove the 3.75 mm Phillips #0 screw from below where the hard drive used to be.

    • Remove the three 3.75 mm Phillips #0 screws from below where the battery used to be.

    • Be careful with where you put your screws!

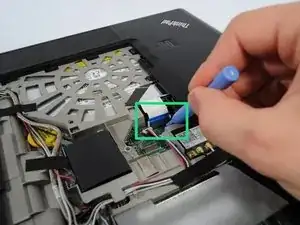

  11. vNCsRqWB3UNLTWBq
    vNCsRqWB3UNLTWBq
    B2WqTuqWplKlFXRR
    wS6Pahov3PsiuBZT

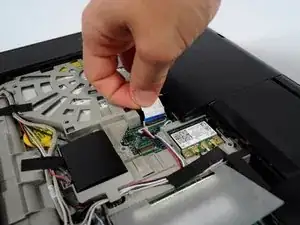

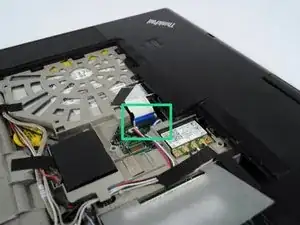

    • Before the top casing can be removed, there are two more things to do.

    • First, the ribbon cable that connects the trackpad to the motherboard needs to be removed.

    • A fingerprint scanner is optional on this laptop - mine has it - and it is connected to the motherboard on the same ribbon as the trackpad.

    • Use a plastic opening tool to lift up the ZIF connector.

    • Pull the cable out of the connector.

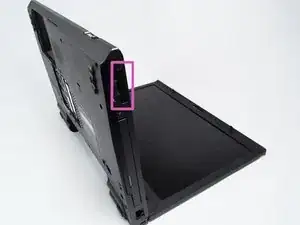

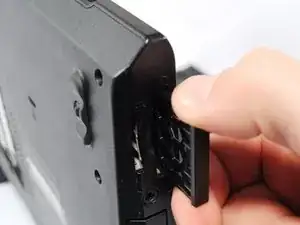

  12. Z2Iwi4HorRsMKlWp
    Z2Iwi4HorRsMKlWp
    KxdaFW6CMYYSUbvW
    qCCAKFOGwDBFd6re

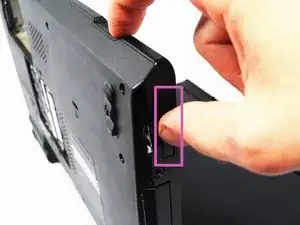

    • The last thing to do before removing the top casing is taking out the dummy card in the ExpressCard 34 slot.

    • Flip the laptop so its resting on the back of the screen.

    • Using your thumb, press the plastic ExpressCard dummy into the case until you hear a click.

    • Let go and then pull out the card.

    • If you have a real ExpressCard in the slot, this procedure is the same.

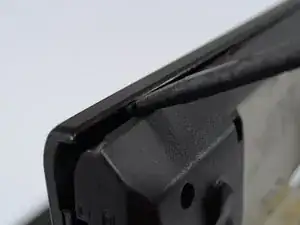

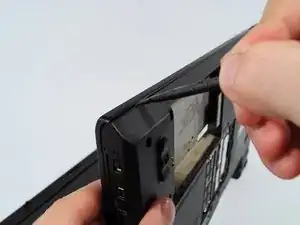

  13. sMAspGOMHGVTbkfF
    sMAspGOMHGVTbkfF
    HwafyrVv6YJgbiJJ
    VRNHrWSb3dFUFRUS

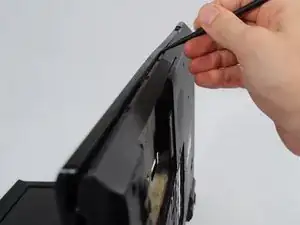

    • Using a spudger, start about an inch from the very left of the laptop.

    • Press the spudger into the edge of the casing.

    • Slide the spudger to your right, along the edge of the casing.

  14. FNhTE4dKYZdRn46n
    FNhTE4dKYZdRn46n
    Umqu5Y1jKAJQSx2c
    cuHBponTGEmZ4gP3

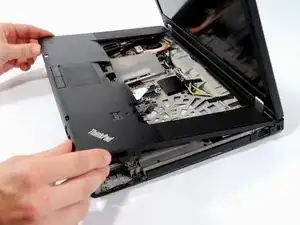

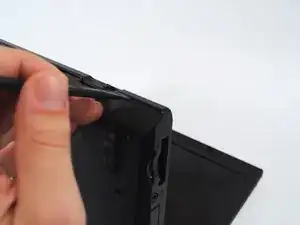

    • Once you reach the screen release mechanism, remove the spudger.

    • Put the spudger on the edge of the casing, about an inch from the very right of the laptop.

    • Gently push until you hear the clip release.

    • Set the laptop down on its base.

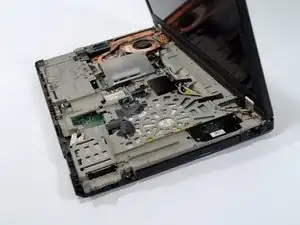

    • Slowly pull up the casing with both hands at the corners. There should be a few more clips that release.

    • Fully remove the casing.

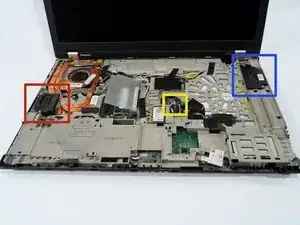

  15. wnpW3HkRYOQFLjnG
    • Here you can see the left speaker, the right speaker, and the connector that both speakers attach to.

    • Left speaker

    • Right Speaker

    • Connector

    • We will start with the left speaker.

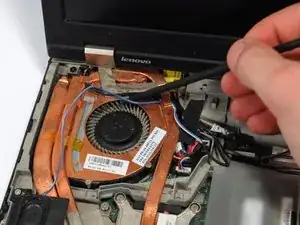

  16. pbVsHQgOPQGiumbO
    pbVsHQgOPQGiumbO
    UveHaG4CbiiVAq2f
    xwyQybdBLGPLiAZK

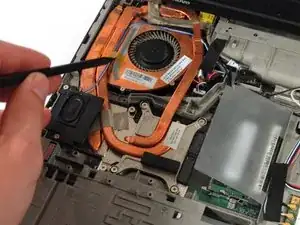

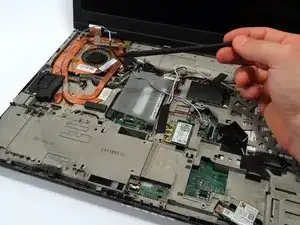

    • The left speaker is connected with the blue and white wire. The two wires should be stuck to each other.

    • Using a spudger and your hand as needed, gently remove the wire from all constraints.

    • Be careful not to damage any other wires. Do not dramatically bend any of the wires.

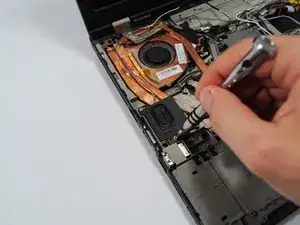

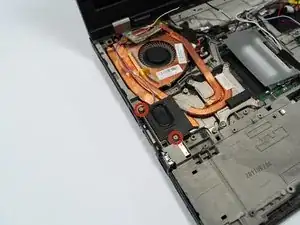

  17. GFCUZnSw2qqWpSmd
    GFCUZnSw2qqWpSmd
    UfRWidIEOPhbhJhw
    WYVP1ZiHkeRZuFZD

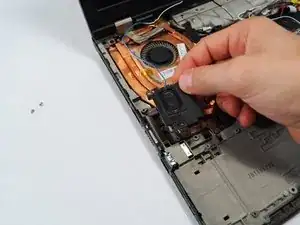

    • Remove the two 3.5 mm Phillips #0 screws from the speaker.

    • Remove the speaker.

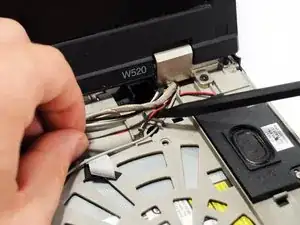

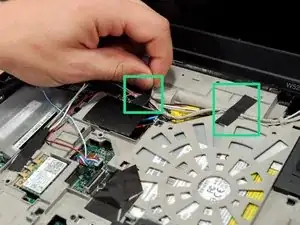

  18. 3JOPpxEDPBDyaGJm
    3JOPpxEDPBDyaGJm
    LDOyjQw6LexJZAPa
    ngRT64Qos6V2Gyru

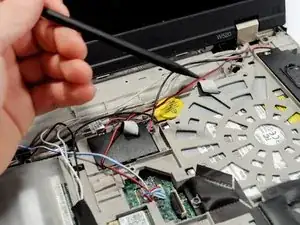

    • The right speaker is connected with the black and red wires. The black and red wires should be stuck together.

    • First lift up the two pieces of black tape, but don't fully remove them.

    • Using a spudger and your hand as needed, gently free the black and red wire from all constraints.

    • Be careful not to damage any other wires. Do not dramatically bend any of the wires.

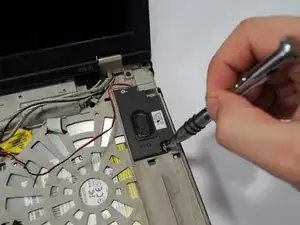

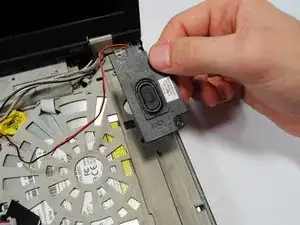

  19. mdlxNW4xjpSnboMI
    mdlxNW4xjpSnboMI
    tCSwfnwfA6hOH1fX
    KHvLSnsiNNSZ2vMa

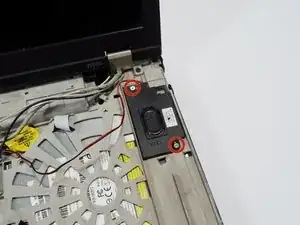

    • Remove the two 3.5 mm Phillips #0 screws.

    • Remove the speaker.

  20. CIwvMgBdlRIP5MTT

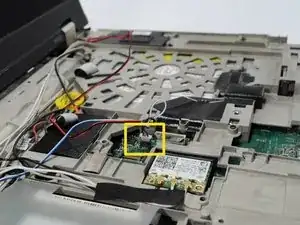

    • Now, we must remove the speaker wire connector from the motherboard.

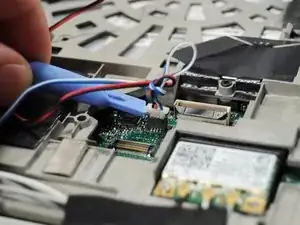

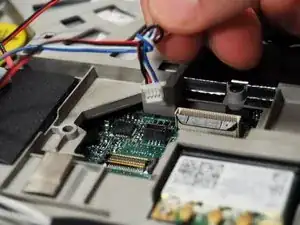

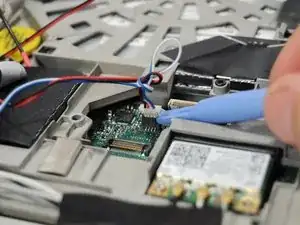

  21. Ttit1yVIMeLVXXoL
    Ttit1yVIMeLVXXoL
    G3FVigswXlAIRHJQ
    WucwmSgBm3XZBJlq
    • Using a plastic opening tool, gently pry up on the right side of the connector.

    • Then repeat on the left side.

    • Repeat process until the connector comes off.

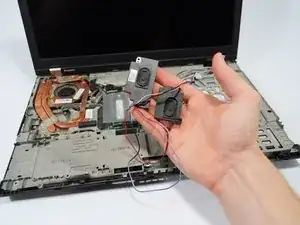

  22. BlwosaevutRGljxJ
    • Pass the speakers under any other wires that are restricting them.

    • The speakers are now free to be removed and replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
