Lenovo ThinkPad X1 Carbon (2nd Gen) Back Cover Replacement

Geschrieben von: Eevee Murdock
  • Kommentare: 2
Lenovo ThinkPad X1 Carbon (2nd Gen) Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 - 7 Minuten

Einleitung

If an internal piece of your Lenovo ThinkPad X1 Carbon (2nd Gen) needs to be replaced, use this guide to remove the back cover to gain access to the internal parts.

Before you begin, make sure your computer is off.

  1. vJVYFGHi4AdBNVpA

    • Using a Phillips #0 screwdriver, remove the seven 7mm screws holding the back cover onto your computer.

  2. yE5O5OyDFplvoRvl
    yE5O5OyDFplvoRvl
    1BLOxJZqCT1AVE1i

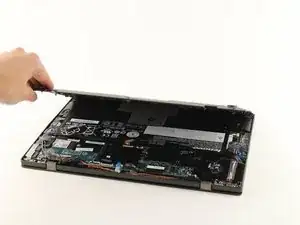

    • Use a plastic opening tool or your fingers to pry off the cover.

    Use the plastic tool as seen in the picture (pry at the hinge side) as on the nearside of the laptop are some plastic scoop brackets, so prying at the front will be a lost cause and may cause damage.

    Casey -

Abschluss

To reassemble your device, follow these instructions in reverse order.
