Lenovo ThinkPad X1 Carbon (2nd Gen) Battery Replacement

Geschrieben von: Eevee Murdock
  • Kommentare: 6
Lenovo ThinkPad X1 Carbon (2nd Gen) Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

8 - 10 Minuten

Einleitung

If your Lenovo ThinkPad X1 Carbon (2nd Gen) won’t turn on or last the full battery life, use this guide to replace the battery.

The battery stores the energy for your computer.

Before using this guide, check that your computer has been charged in a reliable outlet by trying multiple outlets. Also, try using multiple charging cords to make sure your cord isn’t broken.

Before you begin, make sure your computer is off and unplugged.

  1. vJVYFGHi4AdBNVpA

    • Using a Phillips #0 screwdriver, remove the seven 7mm screws holding the back cover onto your computer.

  2. yE5O5OyDFplvoRvl
    yE5O5OyDFplvoRvl
    1BLOxJZqCT1AVE1i

    • Use a plastic opening tool or your fingers to pry off the cover.

    Use the plastic tool as seen in the picture (pry at the hinge side) as on the nearside of the laptop are some plastic scoop brackets, so prying at the front will be a lost cause and may cause damage.

    Casey -

  3. YkCMvVCdChmPjflk
    YkCMvVCdChmPjflk
    tehbRPuh6EMHYAgw

    • Using your fingers, disconnect the battery from the motherboard.

  4. sARbPUXNQQUMnBHe

    • Using a Phillips #0 screwdriver, unscrew the five 4.3mm screws attaching the battery to the computer.

  5. GimPoGZyG5lmmcYT

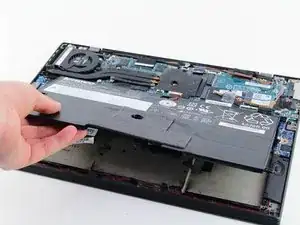

    • Remove the battery by pulling it directly towards you.

    Before installing the new battery, the attached cables connecting it to the board need to be bent or kinked in a similar manner to how the old battery’s cables were. I looked at the old battery’s cables for an idea of how to bend the new cables.

    Also, I saw how the old battery had some very thin foam attached to the battery (as seen in the photos), and that the replacement iFixit battery didn’t have such foam. I couldn’t figure out a way to remove the foam from the old battery without destroying it, so I went ahead and installed the new battery without it.

    Nhan Nguyen -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Eevee Murdock

Mitglied seit: 23/01/20

1002 Reputation

4 Kommentare

iFixit replacement battery is rejected by X1 Carbon gen2 chassis as not-genuine/unauthorized. Is there some additional step to getting the battery to be recognized/allowed? Something in the BIOS? Or is the battery faulty?

lenovo_battery -

Any comments from @ifixit?

Martin Optilon -

Hi there! Thanks for bringing this to our attention. @lenovo_battery, sorry to hear you're having trouble with your battery. Please reach out directly to our customer support team by emailing support@ifixit.com.

Kristen Gismondi -

Hi,

Great guide. I found that my screw heads were a bit stripped and the #0 driver was too small and bounced too much. The #1 driver worked better for me. Thanks for promoting the repair revolution! - MiLo
