Lenovo ThinkPad X1 Carbon (2nd Gen) Power Jack Replacement

Geschrieben von: Eevee Murdock
  • Kommentare: 8
Lenovo ThinkPad X1 Carbon (2nd Gen) Power Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

15 - 45 Minuten

Einleitung

If your Lenovo ThinkPad X1 Carbon (2nd Gen) charger will not work, the screen randomly turns blue, or the laptop randomly freezes, use this guide to replace the motherboard.

The motherboard allows all of the components of your computer to communicate with each other.

Before using this guide, if the charger will not work, try using a few different outlets to charge your computer and check that your battery firmware is updated.

Also, try turning it completely off and on again.

Before you begin, make sure your computer is off.

  1. vJVYFGHi4AdBNVpA

    • Using a Phillips #0 screwdriver, remove the seven 7mm screws holding the back cover onto your computer.

  2. yE5O5OyDFplvoRvl
    yE5O5OyDFplvoRvl
    1BLOxJZqCT1AVE1i

    • Use a plastic opening tool or your fingers to pry off the cover.

    Use the plastic tool as seen in the picture (pry at the hinge side) as on the nearside of the laptop are some plastic scoop brackets, so prying at the front will be a lost cause and may cause damage.

    Casey -

  3. YkCMvVCdChmPjflk
    YkCMvVCdChmPjflk
    tehbRPuh6EMHYAgw

    • Using your fingers, disconnect the battery from the motherboard.

  4. sARbPUXNQQUMnBHe

    • Using a Phillips #0 screwdriver, unscrew the five 4.3mm screws attaching the battery to the computer.

  5. GimPoGZyG5lmmcYT

    • Remove the battery by pulling it directly towards you.

    Before installing the new battery, the attached cables connecting it to the board need to be bent or kinked in a similar manner to how the old battery’s cables were. I looked at the old battery’s cables for an idea of how to bend the new cables.

    Also, I saw how the old battery had some very thin foam attached to the battery (as seen in the photos), and that the replacement iFixit battery didn’t have such foam. I couldn’t figure out a way to remove the foam from the old battery without destroying it, so I went ahead and installed the new battery without it.

    Nhan Nguyen -

  6. HshXANKBW16SnToK

    • Use a Phillips #1 screwdriver to undo the four 5 mm screws attached to the heat sink.

  7. ysZrFdYQHjLYhuoH

    • Undo the black clasp that holds the ribbon cable, attached to the fan, in place and disconnect the ribbon cable.

  8. o4V1XUFDJOxDNNf3

    • Remove the fan by lifting it directly up.

    Clean off using a cotton bud the old Thermal paste from the fan heatsink. When replacing the fan onto the new motherboard, you will need to apply a thin layer of Thermal Paste, which may or may not have come with the replacement motherboard. Apply the paste onto both metal plates on the motherboard.

    Brian Miller -

  9. 1SItElKWRBKDeGuA
    1SItElKWRBKDeGuA
    FuyEwvtXsOwF6CJ4

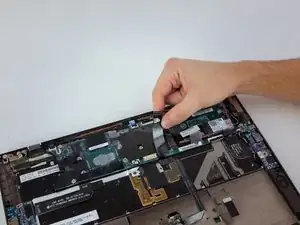

    • Disconnect all 10 of the ribbon cables attached to the motherboard.

  10. Bcmuy6ehSWgmZ1i2
    Bcmuy6ehSWgmZ1i2
    CoCU3M6PpbDl3QwM

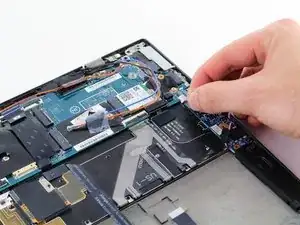

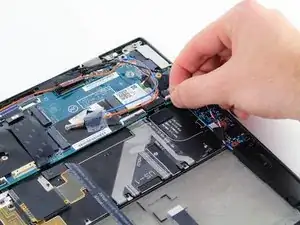

    • Disconnect the wire connecting the motherboard to the speaker.

  11. pOxdjUCrXiSVfcxV

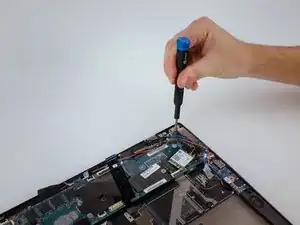

    • Use a Phillips #1 screwdriver to unscrew the 4mm screw holding the metal covering over the power jack prongs.

  12. NYepn1ig5KbWZrwt

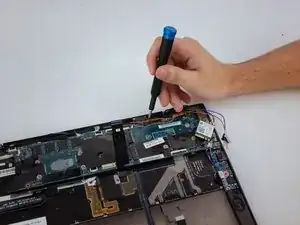

    • Use a Phillips #1 screwdriver to unscrew the 4mm screw holding down the Micro-SD card tray.

    Use a pin to remove the SD card tray.

    Brian Miller -

  13. JfIMBYUdlC32nlgv
    JfIMBYUdlC32nlgv
    HrNcNSUM3kHe2E1G

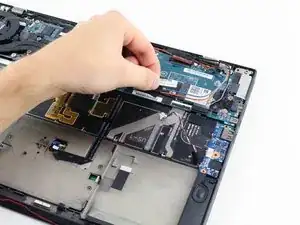

    • Un-tape the orange and blue wires from the motherboard.

  14. dwatUwvQfkBl6FDQ

    • Remove the black and grey wires from the cable comb on the motherboard.

  15. F6P6ILm1SsRoGSAE
    F6P6ILm1SsRoGSAE
    QkwNfTRUBIFVxGmR

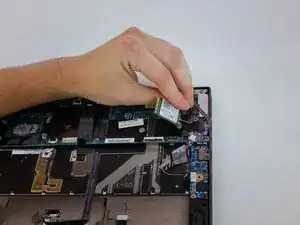

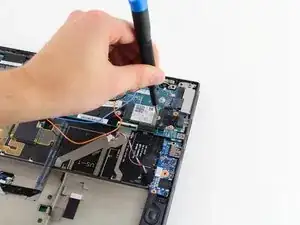

    • Use a Phillips #1 screwdriver to unscrew the 3.7mm screw holding down the wifi card.

    • Remove the wifi card.

  16. 3T5bjQ2kKoBkWB6P
    3T5bjQ2kKoBkWB6P
    4ZRHApOBnXjTUJEO

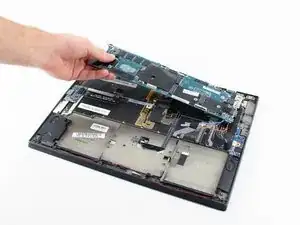

    • Carefully remove the motherboard by lifting it and pulling towards the left.

    Need to also remove all 5 Motherboard Screws before lifting it off.

    Brian Miller -

    On the right hand side in the middle is a plastic-pin that prevents the board pulling left. You have to lift the board a bit more than you want to. Or fiddle on the right side, to lift it up a bit there too.

    Thomas -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Eevee Murdock

Mitglied seit: 23/01/20

1002 Reputation

2 Kommentare

All going as described, until the final step trying to pull the motherboard out, and there is something still holding it in place. With a bit of a wiggle and pull, there is something about near the screw hole that was holding the wifi card down preventing the card from lifting there. Any clues?

Tim Ellison -

Answering my own question: Removing the motherboard requires that you first pop the SIM card / MicroSD card holder out of the socket, otherwise it won’t lift out. Submitted an update to the guide to save others falling into the same trap.

Tim Ellison -
