Lenovo ThinkPad X1 Carbon 5th Gen Speakers Replacement Replacement

Geschrieben von: Diego Garcia reyes
  • Kommentare: 0
Lenovo ThinkPad X1 Carbon 5th Gen Speakers Replacement Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 - 50 Minuten

Einleitung

This guide will show users how to replace the speakers on the Lenovo ThinkPad X1 Carbon 5th Gen, Type 20K3-S0DQ00 S/N PF-0VPYSA 1710. This will help users that are experiencing audio issues with their device. It will allow for an audio jack replacement as well as the speaker replacement because the two are connected. We recommend users attempt to clean the speaker/ audio jack first using compressed air before coming to this guide.

The device should be powered off and disconnected from the charger when working on the device.

  1. 5lXhOY3gDKakMlif

    • Turn the laptop on to its back.

  2. vLAVlgiHWlgHXyuI

    • Use the Phillips #1 screwdriver to remove five 1.2 mm screws from the back cover of the laptop.

  3. JhfGyoy6HYlQV1LE

    • Remove the back cover using the opening tool, leaving the laptop back exposed.

    • Use the opening tool to pry the edge and work your way around the perimeter.

    • Careful to undo the clips before removing the back cover.

  4. xIj4ybrxx2mo1lFf
    xIj4ybrxx2mo1lFf
    QmYKbJLYdWEKltN4

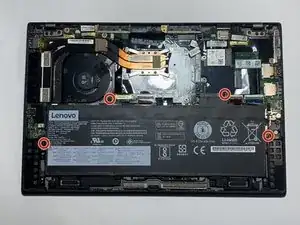

    • Use the Phillips #1 screwdriver to remove the four 1.2 mm screws that secure the battery.

  5. YMEUtAHqUXONQHeJ
    YMEUtAHqUXONQHeJ
    xU2FDfpTIWZFrMnW
    5jAcETbIPHf1TDb5

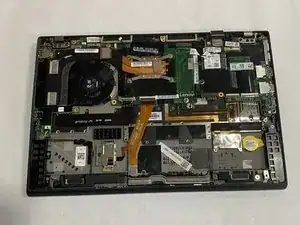

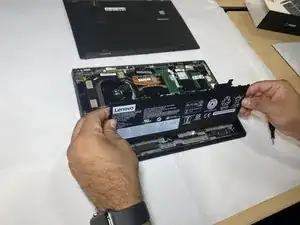

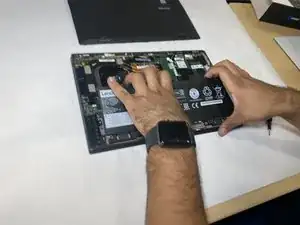

    • Remove the battery using your hand or a prying tool.

  6. kDPlueTiuBq1IdOZ
    kDPlueTiuBq1IdOZ
    M3B65PnEOXVh3Klm

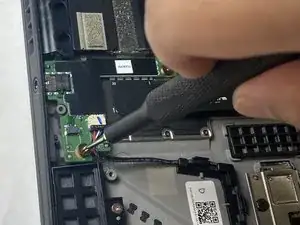

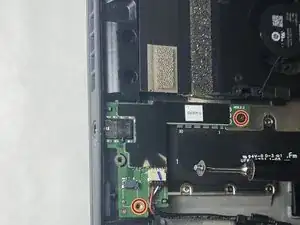

    • Use the Phillips #1 screwdriver to remove the two 1.2 mm screws.

  7. KuSMIFaw2WUwenQR
    KuSMIFaw2WUwenQR
    1Wb2c3ZD6P4mtkgi
    LscVNH5ELpluwN5U

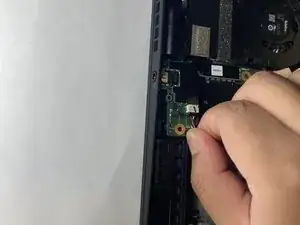

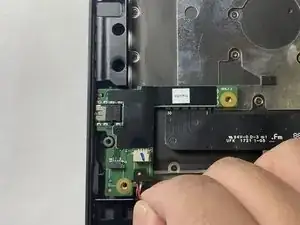

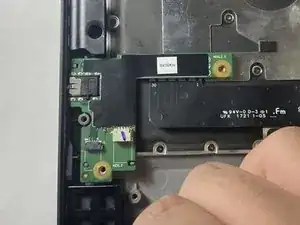

    • Unplug the speaker cable from the board.

  8. r3fWY4FyjvJxSvkv
    r3fWY4FyjvJxSvkv
    OLFmxTbhesDsbbSp
    YQFMlrWKDFDgAZXA

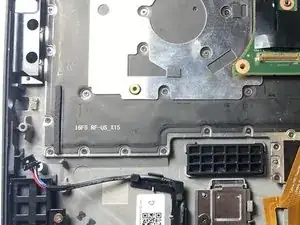

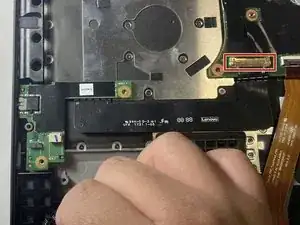

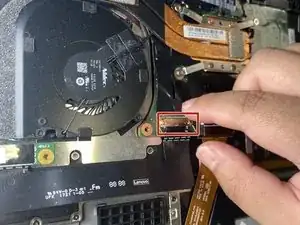

    • Lift up the marked latch and remove the cable.

    • Remove the speaker.

Abschluss

You will have the speaker replaced and fully working. To reassemble your device, follow these instructions in reverse order.
