Einleitung

This guide will show how to replace the Wi-Fi card on the Lenovo ThinkPad X1 Carbon 5th Gen, Type 20K3-S0DQ00 S/N PF-0VPYSA 1710. This will be helpful to users who are struggling with Wi-Fi issues. Replacing a Wi-Fi card can allow for Wi-Fi connectivity and for increased signal strength and range.

The device should always be powered off and disconnected from the charger when being worked on.

  1. 5lXhOY3gDKakMlif
    • Turn the laptop on to its back.

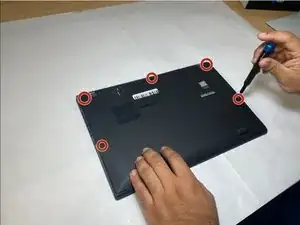

  2. vLAVlgiHWlgHXyuI
    • Use the Phillips #1 screwdriver to remove five 1.2 mm screws from the back cover of the laptop.

  3. JhfGyoy6HYlQV1LE
    • Remove the back cover using the opening tool, leaving the laptop back exposed.

    • Use the opening tool to pry the edge and work your way around the perimeter.

    • Careful to undo the clips before removing the back cover.

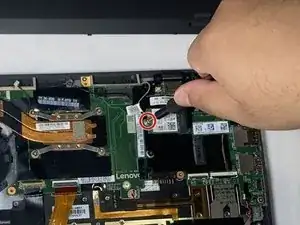

  4. nEwUZKermQAcPTbr
    • Use the Phillips #1 screwdriver to remove the 1.2 mm screw that's holding the Wi-Fi card in place.

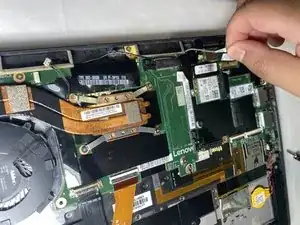

  5. mFNPfghutnUyaKf2
    • Disconnect the white and black coaxial antenna cables from the Wi-Fi card.

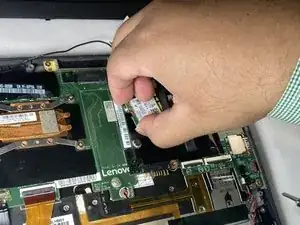

  6. arMrVbZrG6VBVEGR
    arMrVbZrG6VBVEGR

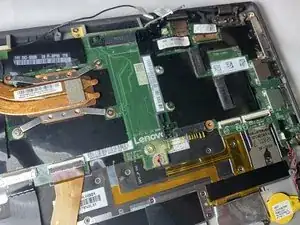

    tmsMhxdHPUJYBDNP
    • Slide the card out to remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
