Lenovo ThinkPad X1 Carbon 7th Gen Display Replacement

Geschrieben von: Everett James Barkley
  • Kommentare: 1
Lenovo ThinkPad X1 Carbon 7th Gen Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

1 Stunde

Einleitung

Reasons for failure in the display on this device include physical damage and cracks or shatters, vertical or horizontal lines appearing on the display, a flickering display, an extremely dim display, or failure to produce all pixels correctly. If you are experiencing any of these issues, a display replacement should return your computer to full functionality. This guide will show you how to replace the display in your Lenovo ThinkPad X1 Carbon 7th Generation laptop.

  1. xjUTndxP5QoSGLm1
    xjUTndxP5QoSGLm1
    xQlcma2edcb4NRgB

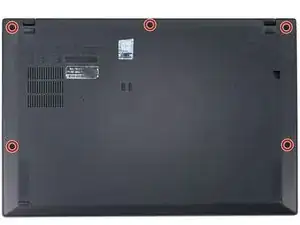

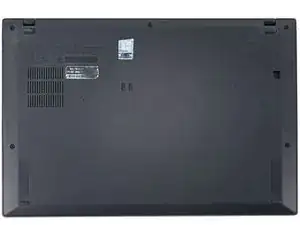

    • Use a Phillips #1 screwdriver to loosen the five captive screws securing the back cover.

  2. dNJZNyWIerbt5ycp
    dNJZNyWIerbt5ycp
    IS2TTkcFxt1PAVtE
    k6MWeuOQ1ZgPfvZf

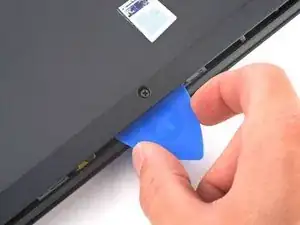

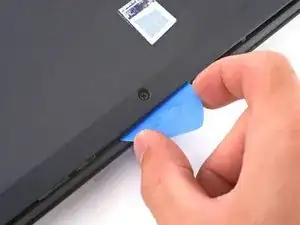

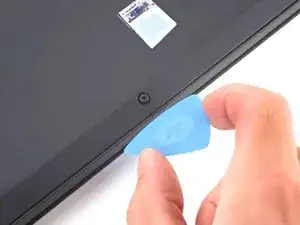

    • Insert an opening pick at a 45˚ angle between the back cover and frame near the rear middle screw.

    • Pry up on the pick to release the clips securing the back cover to the frame.

    • You will hear several clicks while prying up.

  3. W5K1uGLZ1U5RUdPk
    W5K1uGLZ1U5RUdPk
    DTNWxxJF4lEpZsWY
    GnFK6P6bhrixKaSV

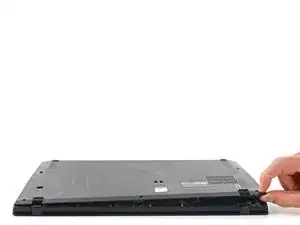

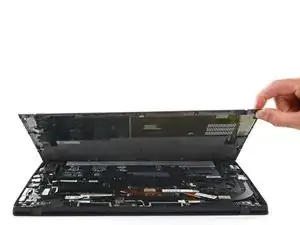

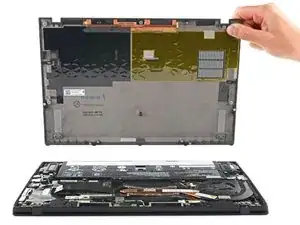

    • Lift the back cover up and remove it from the chassis.

    • You will hear several clicks while lifting up.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

  4. 14F6SXOaVMGaRC5v

    • Remove the six 2mm screws from the display hinges using a Phillips #0 screwdriver.

    • Remove each of the cables connecting the display assembly to the motherboard:

    • A display cable on the left

    • Two coaxial cables in the middle

    • Two more cables on the right

  5. BooF65tJAAG2kliM
    BooF65tJAAG2kliM
    SOY1QlscbL3dVQ61

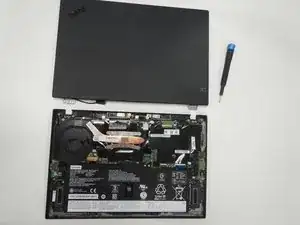

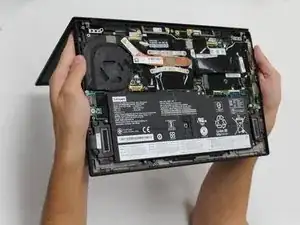

    • Lift the computer up and rotate the display backwards until it is detached from the rest of the computer as shown.

Abschluss

To reassemble your device, follow these instructions in reverse order.
