Before using this guide, check if your pen is inserted in the charging slot correctly or if it is chipped or damaged near the charging connector. You may also follow the guide through Step 3 to ensure that the charging wire has not been disconnected from the port on the circuit board. If it is, reconnect the wire and test the charging port.
If you have determined that the charging port is damaged or no longer charges the pen, replace the charging port with this guide. Use care when handling the ribbon cable to avoid damage to internal components.
Werkzeuge
-
-

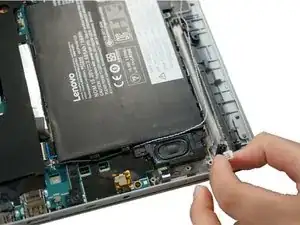

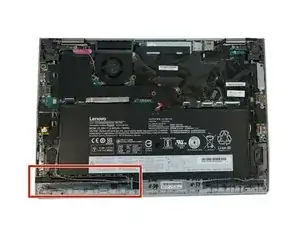

Remove the pen from its slot on the side of the laptop before removing the pen charging port.
-
-
-

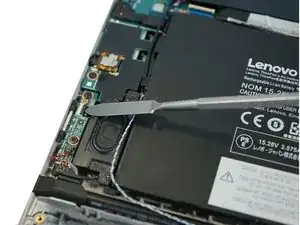

Lift the tab with a spudger to expose the ribbon cable.
-

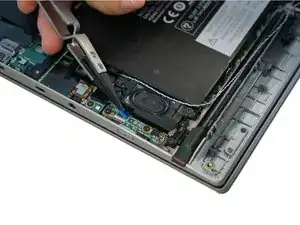

Carefully pull out the ribbon cable using Pro/ESD/Angled tweezers.
-
-
-

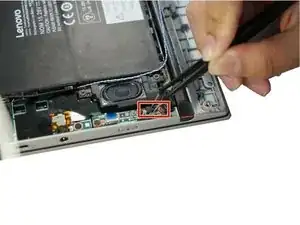

Disconnect the red and black charger wire from the port on the circuit board.
-

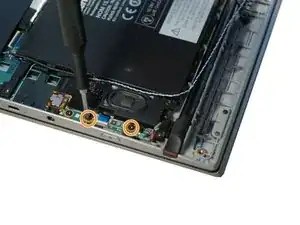

Remove two 4 mm screws using the Phillips #0 screwdriver.
-
-
-

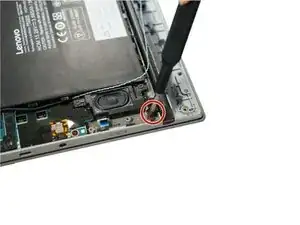

Remove a single 6 mm screw from the charging port using the Phillips #0 screwdriver.
-

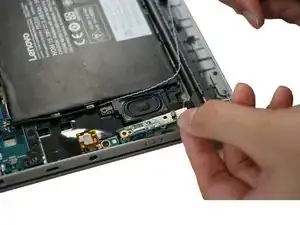

Remove the black charging port using your fingers.
-
To reassemble your device, follow these instructions in reverse order.
