Lenovo ThinkPad X1 Yoga 2nd Generation SSD Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

If you are running out of storage space on your laptop, you can either transfer files to an external storage device or follow this guide to replace and upgrade your solid-state drive. Before you do so, check how much storage space you have on your laptop, which will help you decide if you need to upgrade the SSD or not. The Lenovo X1 ThinkPad Yoga 2nd Generation comes with a 256 GB SSD, so you have the option to upgrade to a 512 GB or 1 TB SSD.

Additionally, back up your SSD before you replace it so you do not lose any data. These instructions can also be followed to simply transfer files to an external storage device.

  1. RUVanctWGYInflPC

    • Ensure the laptop is powered off and the charging cable is disconnected before opening the back cover.

    • Flip over the laptop to access the back cover.

  2. CIooEkrOuiwyjePc
    CIooEkrOuiwyjePc
    ncptBZUdWSkQD3Ke

    • Use a Phillips #0 screwdriver to remove the eight 8 mm screws.

    More pricesely, screws need to be unscrewed, but not removed, since they stay attached to the back cover. Trying to remove them may damage the small gaskets around the screw shaft.

    Edouard Rossignol -

  3. 5YNLPLYLjWPDbLPI

    • Remove the back cover.

    • A popping sound may occur when the back cover is removed.

    Good solution, but where do I find the battery?

    Brian Arnold -

  4. m1irrnCUJApZPMFq

    • Use a Phillips #0 screwdriver to remove one 6 mm screw.

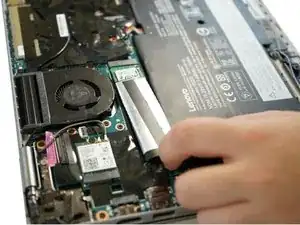

  5. roL2OySp5FLo5ldu
    roL2OySp5FLo5ldu
    lMrip5KTGpAu2GdT

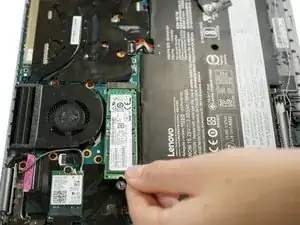

    • Slide the SSD out of the shiny covering.

    • Remove the SSD.

Abschluss

To reassemble your device, follow these instructions in reverse order.
