Lenovo ThinkPad X1 Yoga 2nd Generation Speakers Replacement

Geschrieben von: Ashley Haraguchi
  • Kommentare: 2
Lenovo ThinkPad X1 Yoga 2nd Generation Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

If you have determined that faulty speakers are the cause of distorted audio, follow this guide to replace them. If you are unsure, follow these steps in the Troubleshooting Page to determine if the issue is caused by your headphones, the audio jack, or the speakers themselves. Removing the speakers is also necessary before replacing the battery.

  1. RUVanctWGYInflPC

    • Ensure the laptop is powered off and the charging cable is disconnected before opening the back cover.

    • Flip over the laptop to access the back cover.

  2. CIooEkrOuiwyjePc
    CIooEkrOuiwyjePc
    ncptBZUdWSkQD3Ke

    • Use a Phillips #0 screwdriver to remove the eight 8 mm screws.

    More pricesely, screws need to be unscrewed, but not removed, since they stay attached to the back cover. Trying to remove them may damage the small gaskets around the screw shaft.

    Edouard Rossignol -

  3. 5YNLPLYLjWPDbLPI

    • Remove the back cover.

    • A popping sound may occur when the back cover is removed.

    Good solution, but where do I find the battery?

    Brian Arnold -

  4. PICdA6GZFLXDNXLw
    PICdA6GZFLXDNXLw
    MQ1thHDgkauXxrgR

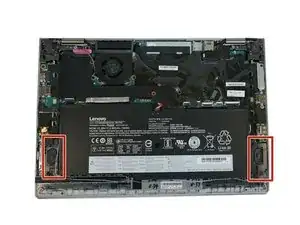

    • Follow the ribbon cable that runs from the left speaker to the motherboard.

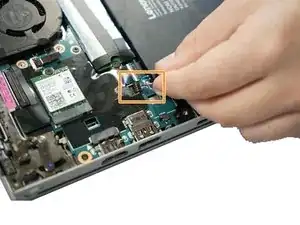

    • Pull the black connector up and release the cable wire by hand.

    • If needed, pull this connector up using the Pro/ESD/Angled tweezers.

  5. cpE231ZGmboWYgMi
    cpE231ZGmboWYgMi
    hibJkwMQYWDmDB6L

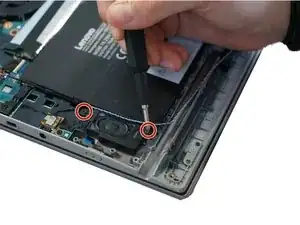

    • Remove two 6 mm Phillips #0 screws from each speaker.

  6. gTaOaeZiCBeNUQ1K
    gTaOaeZiCBeNUQ1K
    jHeQt2bOxnAWCZFb

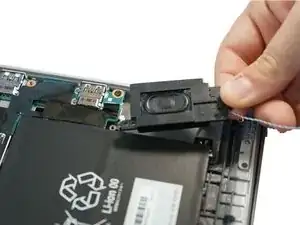

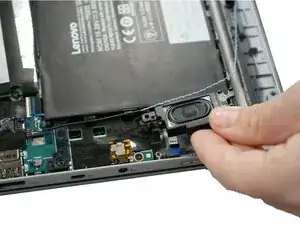

    • Use your fingers to remove the speakers from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
