Lenovo ThinkPad X1 Yoga 2nd Generation Trackpad Replacement

Geschrieben von: Luke James Wiggins
  • Kommentare: 2
Lenovo ThinkPad X1 Yoga 2nd Generation Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 - 30 Minuten

Einleitung

The Trackpad is an essential component to the laptop, allowing you to operate the computer. Oftentimes, after long term use the trackpad will become stuck, jammed, or unresponsive when trying to use it. If your trackpad has issues like this then you may need to replace it.

  1. RUVanctWGYInflPC

    • Ensure the laptop is powered off and the charging cable is disconnected before opening the back cover.

    • Flip over the laptop to access the back cover.

  2. CIooEkrOuiwyjePc
    CIooEkrOuiwyjePc
    ncptBZUdWSkQD3Ke

    • Use a Phillips #0 screwdriver to remove the eight 8 mm screws.

    More pricesely, screws need to be unscrewed, but not removed, since they stay attached to the back cover. Trying to remove them may damage the small gaskets around the screw shaft.

    Edouard Rossignol -

  3. 5YNLPLYLjWPDbLPI

    • Remove the back cover.

    • A popping sound may occur when the back cover is removed.

    Good solution, but where do I find the battery?

    Brian Arnold -

  4. PICdA6GZFLXDNXLw
    PICdA6GZFLXDNXLw
    MQ1thHDgkauXxrgR

    • Follow the ribbon cable that runs from the left speaker to the motherboard.

    • Pull the black connector up and release the cable wire by hand.

    • If needed, pull this connector up using the Pro/ESD/Angled tweezers.

  5. cpE231ZGmboWYgMi
    cpE231ZGmboWYgMi
    hibJkwMQYWDmDB6L

    • Remove two 6 mm Phillips #0 screws from each speaker.

  6. gTaOaeZiCBeNUQ1K
    gTaOaeZiCBeNUQ1K
    jHeQt2bOxnAWCZFb

    • Use your fingers to remove the speakers from the device.

  7. 4BKE1HuVTFBFwbFH

    • Use a spudger to pop the ribbon cable that runs from the upper-middle portion of the battery to the motherboard out of the motherboard.

    • Do not use a metal spudger as indicated in the photos. The metal spudger should only be used for serious prying power. If it's used on the internal components of a device, it may puncture or damage the components in your device.

  8. OHQ516jIe1qAR4KM

    • Use a Phillips #0 screwdriver to remove one 6 mm screw from the bottom-middle portion of the battery.

  9. GSHhKXZdlLRPOQxd

    • Remove the battery.

  10. byaVtS22icV5bPUY
    byaVtS22icV5bPUY
    uoaWPIKsovTHbfjL

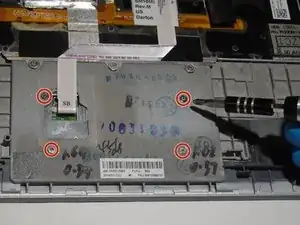

    • Using a Phillips #0 screwdriver, remove four 3 mm screws.

  11. cFfVrpJShIOGQ3wH

    • Lift up the laptop and remove the trackpad from the device.

    • When you lift up the bottom panel, the trackpad should fall from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
