Lenovo ThinkPad X1 Yoga 2nd Generation Wi-Fi Card Replacement

Geschrieben von: Travis Spranger
  • Kommentare: 2
Lenovo ThinkPad X1 Yoga 2nd Generation Wi-Fi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

20 - 40 Minuten

Einleitung

This guide will take you through the steps of replacing the Wi-Fi Card on a Lenovo ThinkPad X1 Yoga 2nd Generation. The Wi-fi Card is an important aspect of any laptop because it is how the user connects the laptop to an available wireless network. Before beginning, make sure to power off your device completely and disconnect from any external power source.

  1. RUVanctWGYInflPC

    • Ensure the laptop is powered off and the charging cable is disconnected before opening the back cover.

    • Flip over the laptop to access the back cover.

  2. CIooEkrOuiwyjePc
    CIooEkrOuiwyjePc
    ncptBZUdWSkQD3Ke

    • Use a Phillips #0 screwdriver to remove the eight 8 mm screws.

    More pricesely, screws need to be unscrewed, but not removed, since they stay attached to the back cover. Trying to remove them may damage the small gaskets around the screw shaft.

    Edouard Rossignol -

  3. 5YNLPLYLjWPDbLPI

    • Remove the back cover.

    • A popping sound may occur when the back cover is removed.

    Good solution, but where do I find the battery?

    Brian Arnold -

  4. PICdA6GZFLXDNXLw
    PICdA6GZFLXDNXLw
    MQ1thHDgkauXxrgR

    • Follow the ribbon cable that runs from the left speaker to the motherboard.

    • Pull the black connector up and release the cable wire by hand.

    • If needed, pull this connector up using the Pro/ESD/Angled tweezers.

  5. cpE231ZGmboWYgMi
    cpE231ZGmboWYgMi
    hibJkwMQYWDmDB6L

    • Remove two 6 mm Phillips #0 screws from each speaker.

  6. gTaOaeZiCBeNUQ1K
    gTaOaeZiCBeNUQ1K
    jHeQt2bOxnAWCZFb

    • Use your fingers to remove the speakers from the device.

  7. 4BKE1HuVTFBFwbFH

    • Use a spudger to pop the ribbon cable that runs from the upper-middle portion of the battery to the motherboard out of the motherboard.

    • Do not use a metal spudger as indicated in the photos. The metal spudger should only be used for serious prying power. If it's used on the internal components of a device, it may puncture or damage the components in your device.

  8. OHQ516jIe1qAR4KM

    • Use a Phillips #0 screwdriver to remove one 6 mm screw from the bottom-middle portion of the battery.

  9. GSHhKXZdlLRPOQxd

    • Remove the battery.

  10. 51OlLJEwAOhHwGwl
    51OlLJEwAOhHwGwl
    MUkAIRYPaqpmobGU
    EeIoFFXwiUXKr4yx

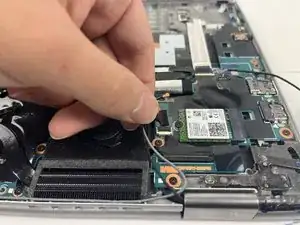

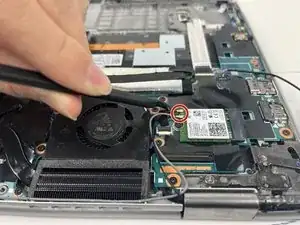

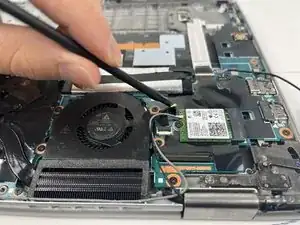

    • Disconnect the gray and black coaxial cables from the Wi-Fi-Card using a spudger.

    • Be gentle as you're disconnecting these cables. The base can break off the Wi-Fi card if the they're pulled on too hard.

  11. UJEryPTvuMZKGxji

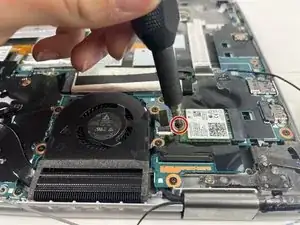

    • Remove the 3 mm screw from the Wi-Fi card using a Phillips #0 screwdriver.

  12. 3UECQhXxhVPmKFGQ
    3UECQhXxhVPmKFGQ
    DytgfSLNjZHAFHij

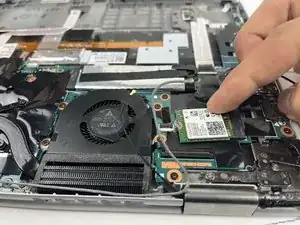

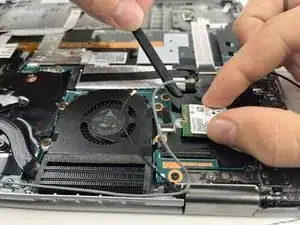

    • Gently slide the Wi-fi card out from the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
