Lenovo ThinkPad X1 Yoga Display assembly Replacement

Start by flipping over the notebook and loosen all of the nine screws. They should remain in the backcover though.

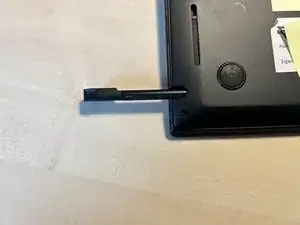

Remove your stylus if not already done.

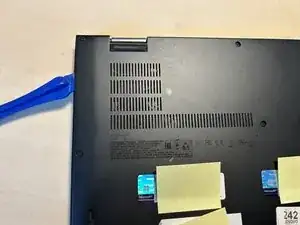

Remove the cover from the upper corner by using a spudger.

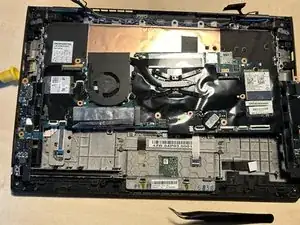

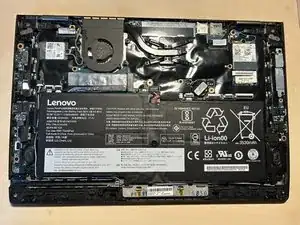

In the following steps we will work on the notebook as shown in the first picture.

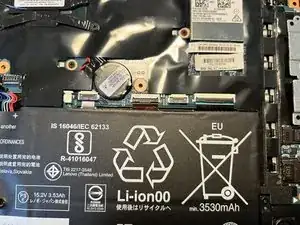

But before we do anything else the battery must be unplugged first.

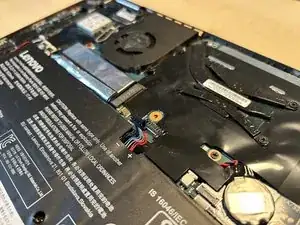

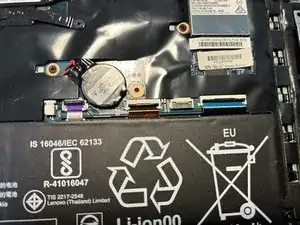

Use a pair of tweezers or a spudger to lift off the battery connector from the mainboard.

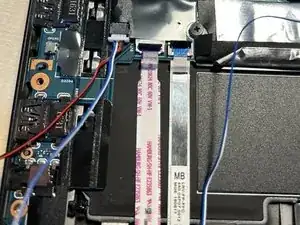

On the upper left corner you will find a ribbon connector which must be removed.

Flip up the lever completely and pull out the cable.

Another display connector like the left is located in the right.

Do as you did before - flip up the lever and pull out the ribbon cable.

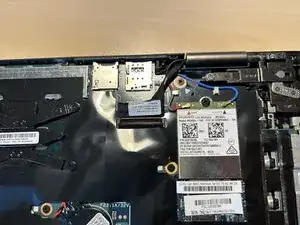

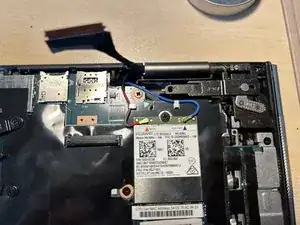

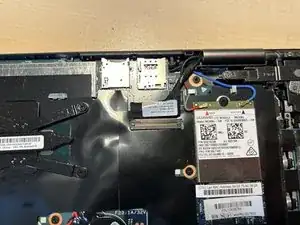

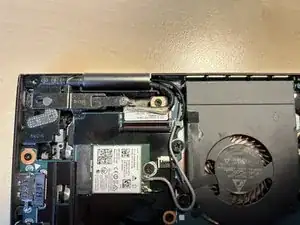

If you have a LTE card installed like me unplug the two connectors with a pair of tweezers but make sure not to damage cables nor connectors.

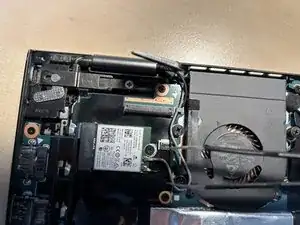

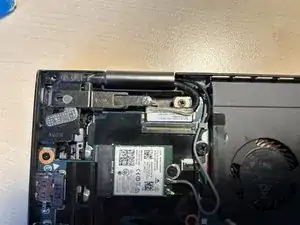

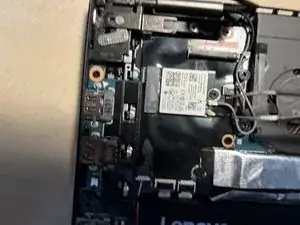

The wi-fi card is located on the left side and also uses two antenna connectors.

Gently unplug the connectors as you did before with the LTE card.

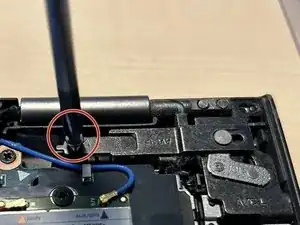

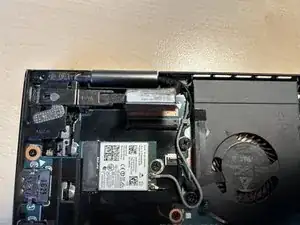

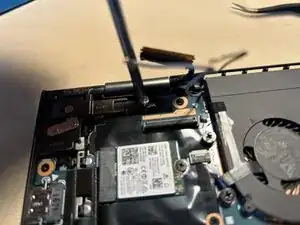

While you're here you could unscrew the left hinge if you like.

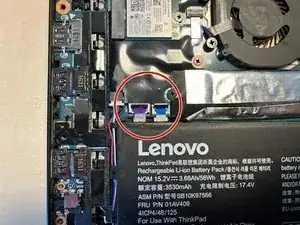

There are ribbon cables above the battery. Unplug them in the same manner as you already did before.

Before we move on we should just unscrew all screws marked with red circles.

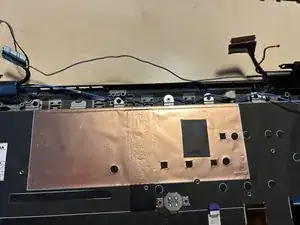

There is a metal shield holding down the mainboard to the right side which has to be removed as well.

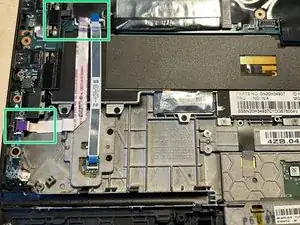

Left to the battery are more ribbon connectors to unplug.

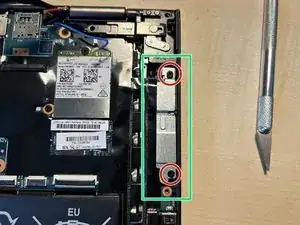

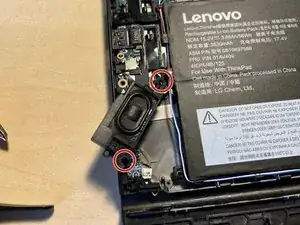

If not already done unscrew the two screws holding the right speaker.

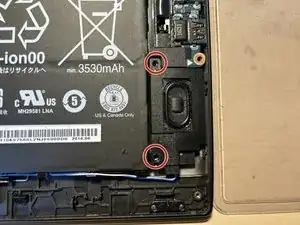

The left speaker is secured with two screws as well.

When removed the battery should come out as well.

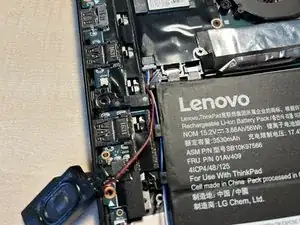

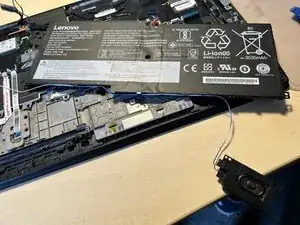

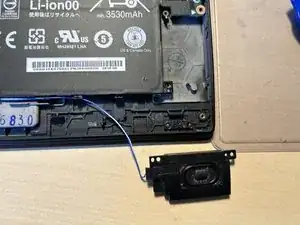

Note that the right speaker is attached to the battery by its wiring. You do not need to untangle them though.

I did separate battery and wiring which is not mandatory though.

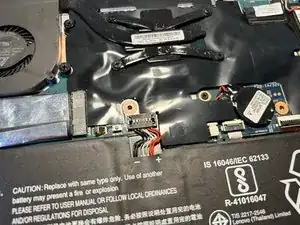

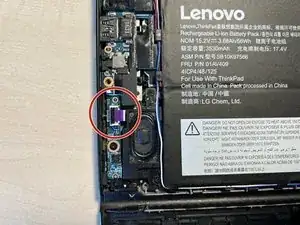

Use a spudger or your fingernails to pull out the speaker plug from the mainboard by the white plastic - not the cable!

With the speakers, wires, ribbon cables and all screws removed you can go ahead and finally remove the mainboard.

After removing the battery, unscrewing all the screws and disconnecting all ribbon connectors the mainboard can be lifted out from the left to the right.

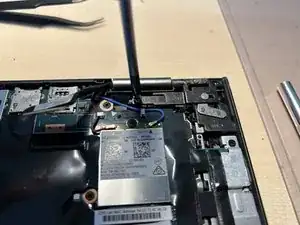

If not already done in a preceding step you will find two silver PH1 screws in the upper left and right corners by the display hinges.

Remove both of them to separate the display assembly from the C-Cover.

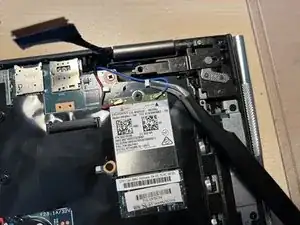

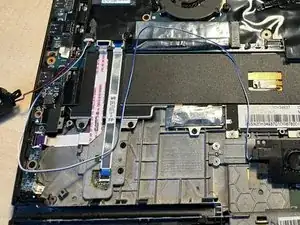

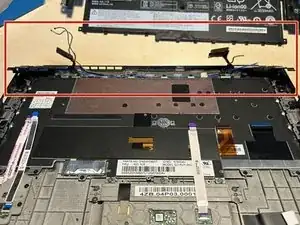

Depending on your configuration you have one or two wires tucked in the upper area of the device

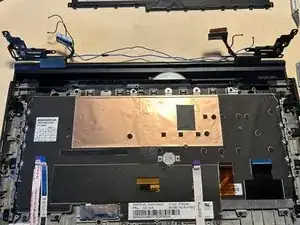

When you have removed all wiring from the C-Cover you may flip up the hinges carefully and remove the screen.
