Lenovo ThinkPad X100e Fan Replacement

Geschrieben von: Claire Hall
  • Kommentare: 3
Lenovo ThinkPad X100e Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

45 Minuten

Einleitung

Use this guide to replace a noisy or burned-out fan.

  1. 1GanaibkptErmPXU

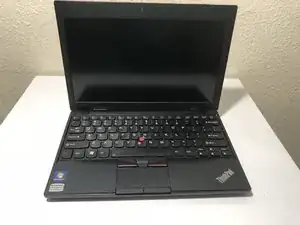

    • Flip the computer over and remove the battery.

    • Please view the Battery Replacement Guide if more detailed instructions are needed.

  2. 1MjKH3LRfuieEf3c

    • Locate the screws on the back of the laptop. Unscrew all 7 screws using a magnetic screwdriver fit with a PH0 bit.

    • All 7 screws should be bounded to the panel.

  3. HhXi4XbVaNUCCElk

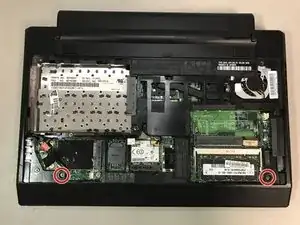

    • Remove the following screws with a magnetic screwdriver fit with a PH0 bit.

    • There should be 2 screws total.

    You’ll want to remove the hard drive now (or some time before step 15) so that it doesn’t end up supported only by the SATA connector.

    Brian Candler -

  4. quHCMZ2oDku1vG5e

  5. JWIENQYgJkVwXhxm

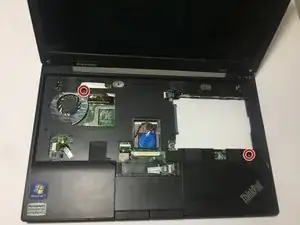

    • Using the magnetic screwdriver fit with a PH0 bit, unscrew the two screws shown in the picture.

  6. 3XHU6sUxbaoiTOdA

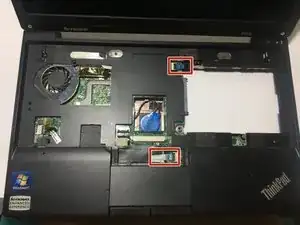

    • Disconnect the two wired ribbons by pulling up the little black tabs, then pull the wires out.

  7. IZXhJghbXPYK2nOx

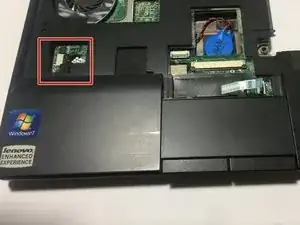

    • Disconnect the little black wire by simply pulling it out.

  8. FcGhAn5GcCIalnUQ

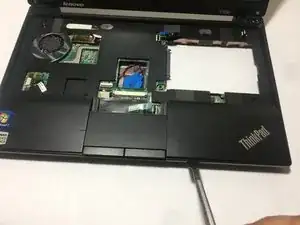

    • Using the spudger, go beneath the frame to pry the frame off the device.

    • The best place to start from is the bottom, near the trackpad.

    • Place the frame aside once this step is completed.

  9. grnR12CjDUUBMoaJ

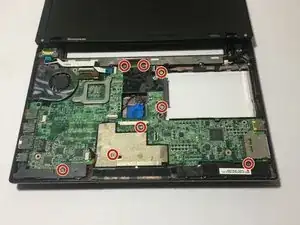

    • Using the magnetic screwdriver, unscrew all 8 screws shown.

    • Be sure to place all your screws on the magnetic mat.

  10. RgyFlvh3Bu6ZEWKM

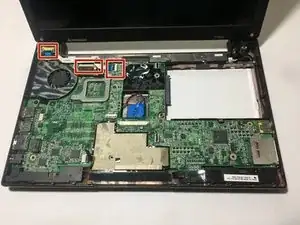

    • Disconnect the three wired ribbons on the top left side of the panel.

  11. AdPrLMeTfxLrcGLs
    AdPrLMeTfxLrcGLs
    piLAJrZnOtV5VFKc

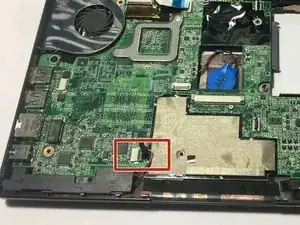

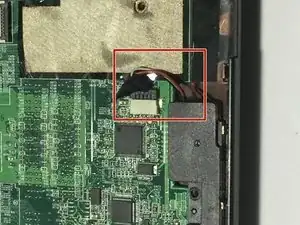

    • Disconnect the wired plug, then close the device and flip it over.

  12. ocyf4LCBQtnL2YRG
    ocyf4LCBQtnL2YRG
    rDODdscxCfHKFxWw

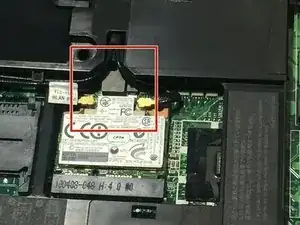

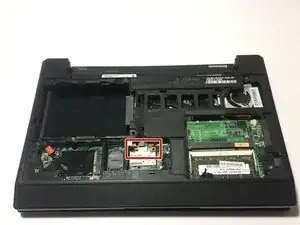

    • Simply pull the two plugs up and out to disconnect the wires.

  13. o6hcT1kAfhpcHTuQ

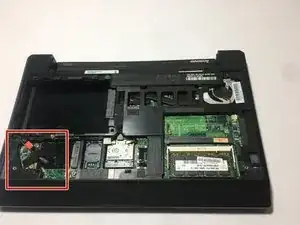

    • Flip the device back over to untape the two black wires located at the bottom left corner of the device.

  14. L42gt5H5BLJexHKL
    L42gt5H5BLJexHKL
    RJsRAwCsLJHTwgDF

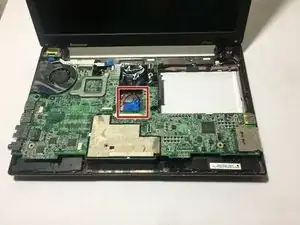

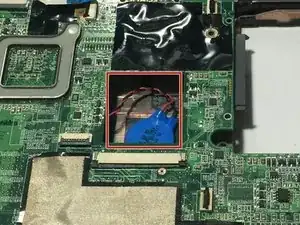

    • Simply disconnect the blue connector at the center of the device.

  15. VaHCmJgWNIBZvRKF

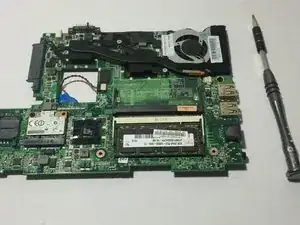

    • Using your fingers, slowly push the panel out of the plastic body.

    • Place the plastic body aside once the panel is free.

    When lifting the board away, I also had to unplug a power cable which was connected to the underside. It was obvious enough though.

    Brian Candler -

  16. OCZyRFYKbfa4cdli
    OCZyRFYKbfa4cdli
    DS4iPnLcUu5gHQnP

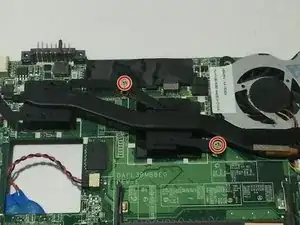

    • Using the same magnetic screwdriver, unscrew the two screws as shown in the picture.

    If you remove the fan in this way, note that it exposes the CPU thermal surface. Use a good CPU cleaning solution and reapply fresh thermal paste when re-fitting or replacing the fan.

    Brian Candler -

  17. GHN4yUQPQjJO5U1B
    GHN4yUQPQjJO5U1B
    Ti2VpwQTQ5ABjKXD

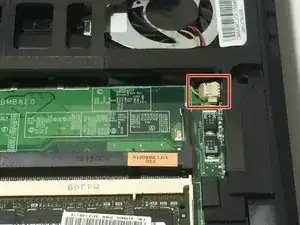

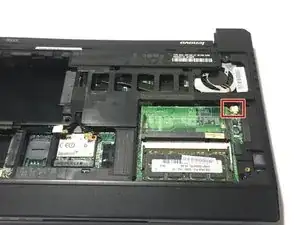

    • Disconnect the plug right below the Fan. A pair of pliers might be useful during this step.

    • If you need to clean your cooling fan, simply spray compressed air onto the fan to clean in and rid it of debris. Repeat the previous steps in reverse order to put your laptop back together.

    • If you need to replace your cooling fan, simply place your new fan in, and follow the steps in reverse order to put your device back together.

Abschluss

Then you are good to go.
