There is a lack of disassembly guides online for the Lenovo X131e. This machine is really really, really old, but there are still many people and mainly schools that use this machine every once in a while. My goal is to upload a high-quality disassembly of this product for the world to enjoy

  1. CNq4WOYfTi63nb2g
    CNq4WOYfTi63nb2g
    NKamF655yGFj6hg4

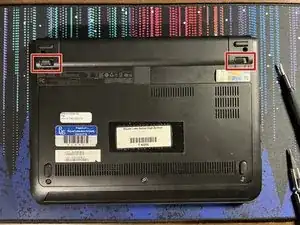

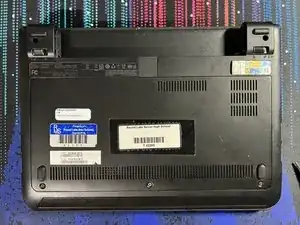

    • Remove external battery by unlocking the safety latches near the external battery

    • Move the safety latches from the "Locked" to "Unlocked"

  2. sYWWPPdmLEDxkDAH

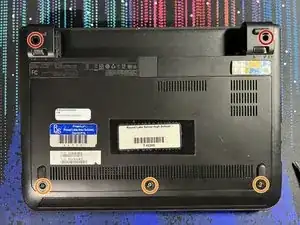

    • Remove the two 7 mm Phillips 1 screws from the top left and right corners.

    • Two 7mm Phillips #1 screws

    • Unscrew the 3 captive screws (they will NOT come out, once they unscrew and "click," they are out of their socket)

  3. eZvVGjDmFMepaLqn
    eZvVGjDmFMepaLqn
    Ou3YG1QBOFq6AZjB

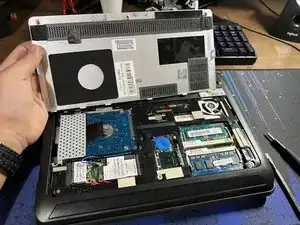

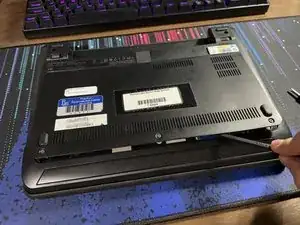

    • Insert a plastic spudger and pry up the bottom cover from the laptop.

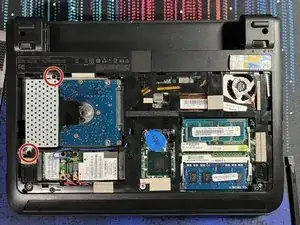

  4. RmrFLAxTYDZlMICS
    RmrFLAxTYDZlMICS
    Rp2duuHR1cVAbfSh
    • Here you can access RAM, HDD, WiFi and WiFi modules.

    • Remove the two 6 mm Phillips #1 screws holding down the HDD Cage

    • Then pull the HDD plastic pull tab at a slight angle to unseat the HDD from the computer.

  5. hlsFnGZLxo13c2CD
    hlsFnGZLxo13c2CD
    JmPEldvfDTCKQbZR
    ZPAdyA1HaeCWHQvh

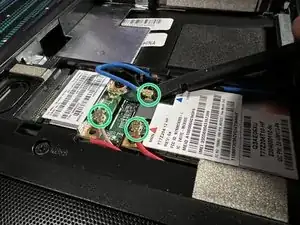

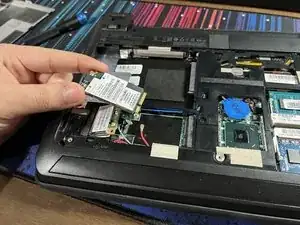

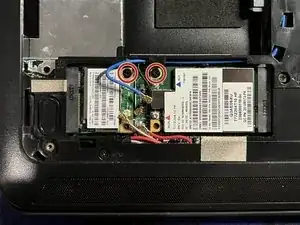

    • Insert a plastic spudger underneath the antenna cable connections.

    • Be careful and make sure to pry up evenly as the connector is small and fragile. It will pop out with relatively small effort if prying at the correct angle.

    • Remove the two 4 mm Phillips #1 screws and then pull out the WiFi modules.

  6. sqZZvHipADg4pf1E

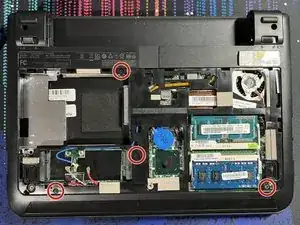

    • Remove the four 9 mm Phillips #1 screws that are holding down the keyboard.

  7. UhQkZn2lOPTuOuJN
    UhQkZn2lOPTuOuJN
    xrZyl6yqWyDuHdov
    VEhUGrwnYn6uJceT

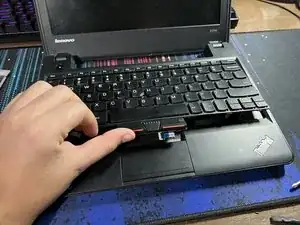

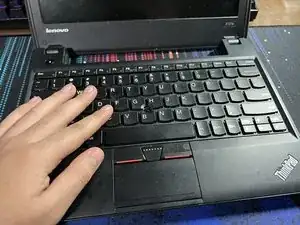

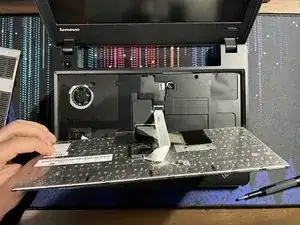

    • Press both hands down firmly on the keyboard and slide forward to unseat the keyboard.

    • Next lift and slightly pull out the keyboard.

    • Be careful when lifting the keyboard as there are two ribbon cables attached to the main laptop which can tear easily.

  8. TNGO4WfT6pSGTBgl
    TNGO4WfT6pSGTBgl
    v4FSGucXe3VQx2Od

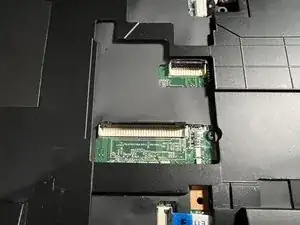

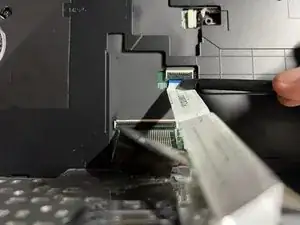

    • Unlatch the ribbon cables' retaining flap with a plastic spudger.

    • Note: When reattaching the ribbon cables, they don't slide "in" to their connector, they lay on the pins, and what holds them down is their retaining flap.

    • Make sure the pins are aligned with the ribbon cable when securing the retaining flap.

  9. 32QjxfAIVwbjAAL4

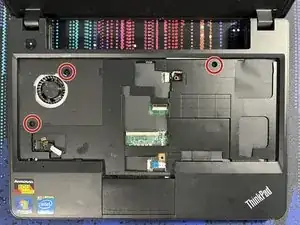

    • Unscrew the three 5 mm Phillips #1 screws that are holding down the top cover.

  10. DjQXJLpSS2G2H3XB
    DjQXJLpSS2G2H3XB
    YhJpSF1LGF1pyG1W

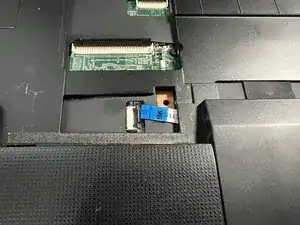

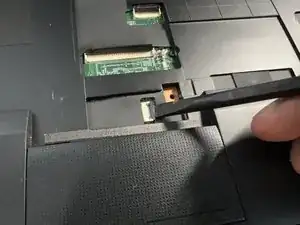

    • Use a plastic spudger to lift the lap on the trackpad's ribbon cable.

    • Then carefully pull out the ribbon cable.

  11. R5k3ABxhPZXlXAKh
    R5k3ABxhPZXlXAKh
    FRaHYTxvOX26OJif

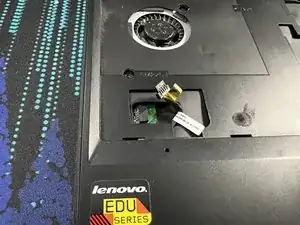

    • With your fingers, grip the other exposed cable and carefully pull out horizontally to disconnect the connection.

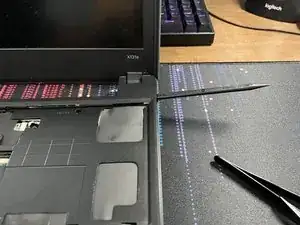

  12. VbXSHDFdKZIhViHE
    VbXSHDFdKZIhViHE
    ytw6YaPj5YddXFSL
    4WLeHGsEPrUyFRpE

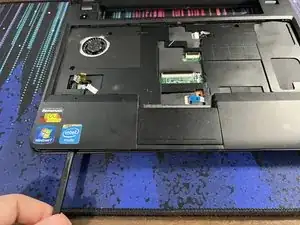

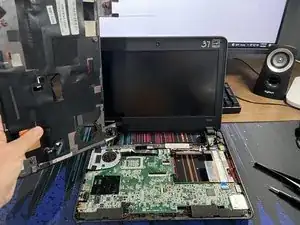

    • Insert a plastic spudger in between the top cover and frame of the laptop. Start prying, making your way around the whole laptop.

    • Remember to make sure the two 7 mm screws from Step #2 have been removed or else the top cover will not come off.

  13. MdNV3KW3GUOZvJYH
    MdNV3KW3GUOZvJYH
    UZLuhYA2hAQCrH6C

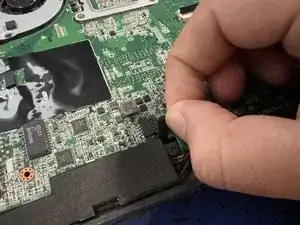

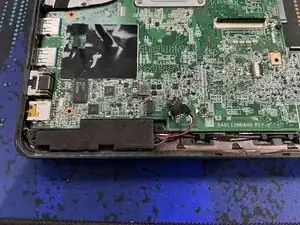

    • Disconnect the speaker wire from the motherboard with your fingers or tweezers.

  14. ISNPbgDxaLB4BBpb
    ISNPbgDxaLB4BBpb
    pxtc4oHrNIKnTT1s

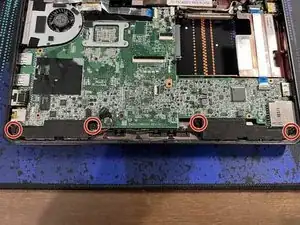

    • Remove the four 6 mm Phillips #1 screws holding down the speakers near the bottom of the case.

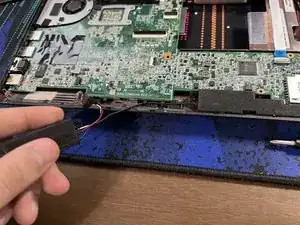

    • Pull out the two speakers and their wiring carefully.

  15. HrCGFfVssxIeY6Ss

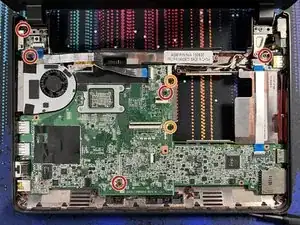

    • Remove the five 4 mm Phillips #1 screws.

    • These can be identified by a small white arrow pointing towards their socket.

    • Remove the two 6 mm Phillips #1 screws near the middle of the board.

  16. JtusFY2M6X5XTRca
    JtusFY2M6X5XTRca
    xbbkBJS6wViDuRJZ

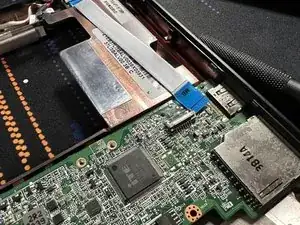

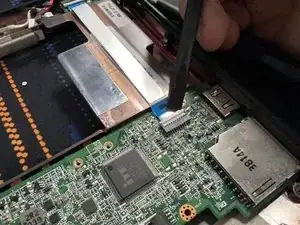

    • Disconnect the safety latch near the bottom right with a plastic spudger and carefully remove the ribbon cable.

  17. dluZULTYMJCcEWKM
    dluZULTYMJCcEWKM
    PPwPJHvQrGiHuO2S
    aUwRQFNXAv2jEUrY

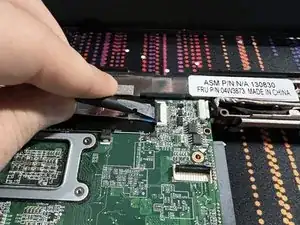

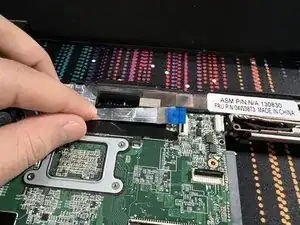

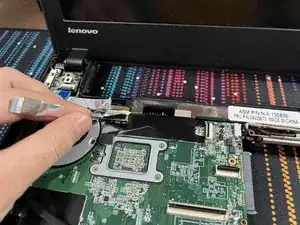

    • Insert a plastic spudger to remove the safety latch of the top middle ribbon cable, then disconnect the ribbon cable.

    • when the ribbon cable meets the fold, carefully peel the cable off as there is some adhesive holding it down in place.

  18. hkBvLhHG2LYqVKA3
    hkBvLhHG2LYqVKA3
    nXwcBnyaO2wDTQAx

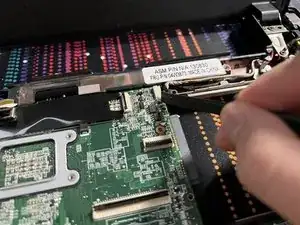

    • Disconnect the last visible cable by pushing it horizontally out with a plastic spudger.

  19. rpbWWCKQAWds5IPh
    rpbWWCKQAWds5IPh
    icRkgfdFLo4Gkr54
    5QLKSPPcPVi1hoBv

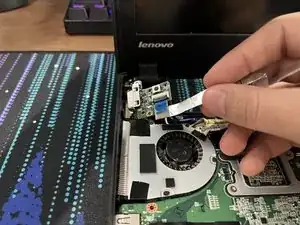

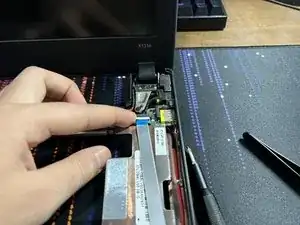

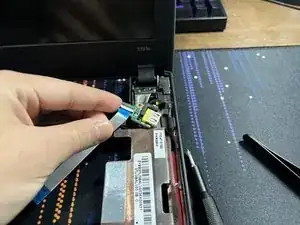

    • Remove the small boards on the top left and right of the laptop with either your hands or tweezers.

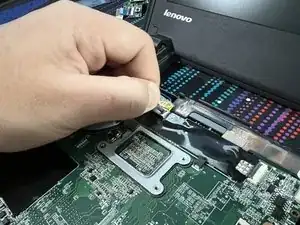

  20. ZVYXEPELVGjjSBnp
    ZVYXEPELVGjjSBnp
    kQwbsCTPWDbwjMJw
    sws3rxMkbKgnlcEK

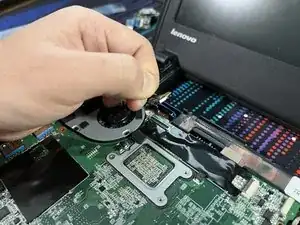

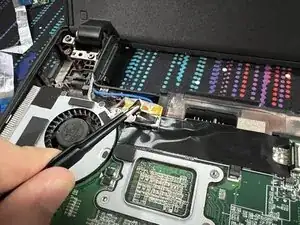

    • Peel off from the right of the sticker, there will be a black plastic pull tab that is there.

    • With your fingers, grip and pull the tab up vertically, with some force, the connector will disconnect.

  21. LvEEoIdgRxYAoZRa
    LvEEoIdgRxYAoZRa
    CKNMxANUNV5Bv43E
    aL1lKBLpNYdbmKUM

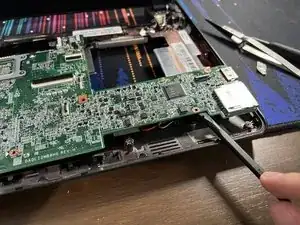

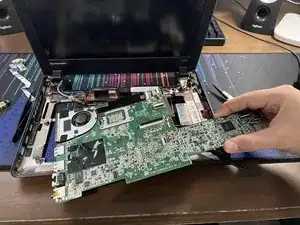

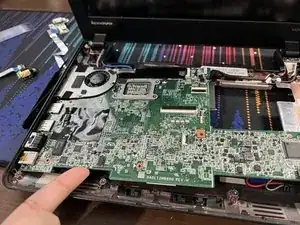

    • Insert plastic spudger from the left and slightly raise the motherboard.

    • There are plastic pegs on the left side of the motherboard, insert another pry tool or a finger underneath from the right side of the motherboard and lift "up" a bit to free the motherboard from the pegs.

    • After that, you can pull the motherboard away by pulling to the left.

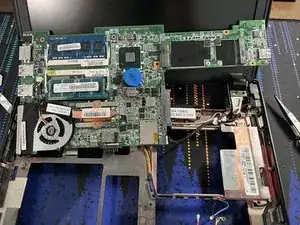

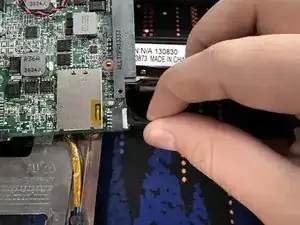

  22. lx6O4vn2pb5acvrd
    lx6O4vn2pb5acvrd
    Kn3GSdVxXuNISHWj
    T6TGRELJntBKXNdW

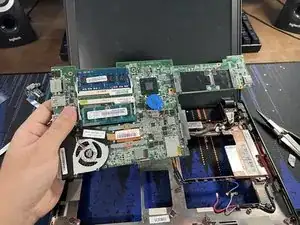

    • Flip the motherboard to its other side.

    • Then pull out the charging cable by holding it with your fingers and "wiggling" it out.

    • The motherboard is now free.

  23. aqHO6ROKuOeOO2xQ
    aqHO6ROKuOeOO2xQ
    GRqQagBoCXUT3mNG
    ZRYlRSNWVZsYVBvR

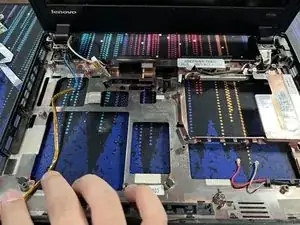

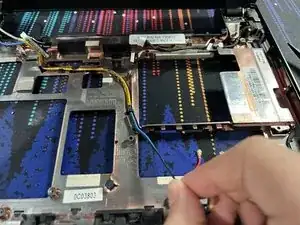

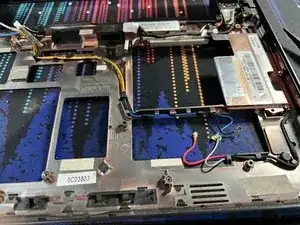

    • Grab the black and blue antenna cables carefully pull them out of their path until they're no longer held down.

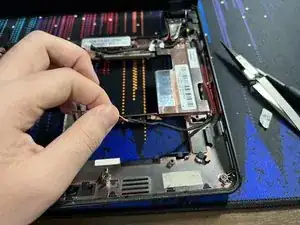

  24. wImSUexgmhTKmvSf
    wImSUexgmhTKmvSf
    ZFPg4iMVUvwf4Dgh
    ygOlZNDmHtYUXPnG

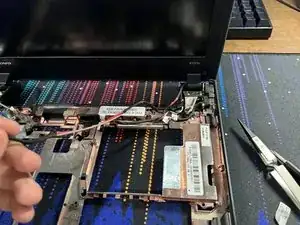

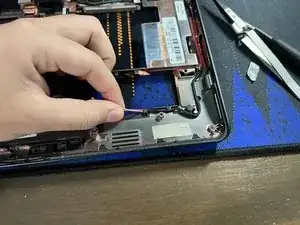

    • Do the same thing with the gray and red antenna cables.

  25. oR5RJE1owH2aWpMu
    oR5RJE1owH2aWpMu
    J1nCNfSyYOgIc6Ed

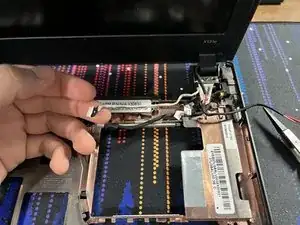

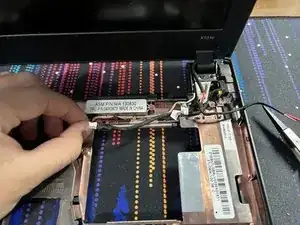

    • Grab and remove the last cable from its place.

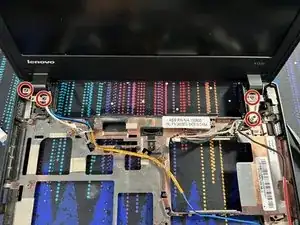

  26. OvGeXIaFDQo5uvZi
    OvGeXIaFDQo5uvZi
    GWRiZBqbOGcgbwZe

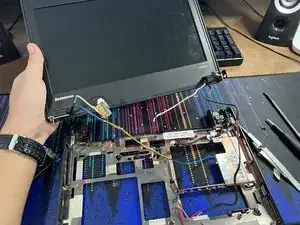

    • Remove the four 6 mm Phillips #1 screws from the hinges.

    • The display will now be free.

    • Note: If you noticed any screws attached to my hinges, those are there because my computer's frame is broken, and I didn't want to lose the threading for the screws. If your frame isn't broken, then there won't be any screws left on the hinges.

  27. iDZUoc5SZyWZI4dX
    iDZUoc5SZyWZI4dX
    MHcuxNbFcUluMCFy
    Xr6OkFeN53HXfTIu

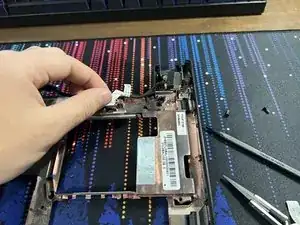

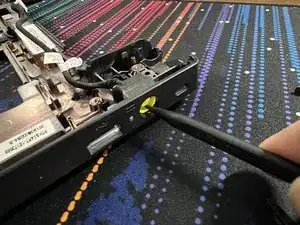

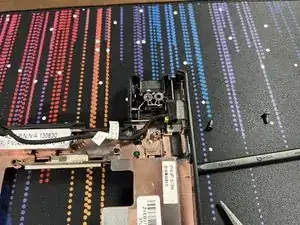

    • The charging port is held down with pressure

    • Stick a plastic spudger on the bottom port of the charging port and pry up to remove the port.

  28. AgYeDVQNBMIAMTUC
    AgYeDVQNBMIAMTUC
    3XnVMwgyMyv5waxG
    yUZrLFSwxDX6KQZS

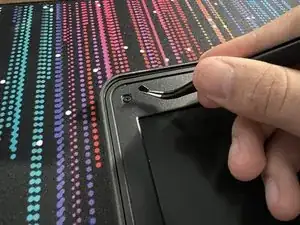

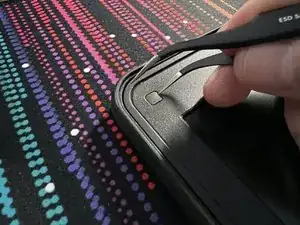

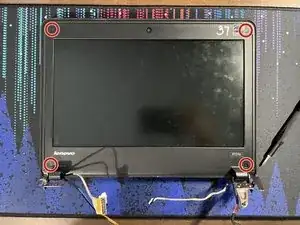

    • Now that the display is free, insert a thin metal prying tool like tweezers or a needle to pry off the plastic screw covers in the four corners.

  29. NVRRgvARphprGHeo
    NVRRgvARphprGHeo
    4yVk4Idu2hUGY2oL
    ruxBqnfCKNkpLLGm

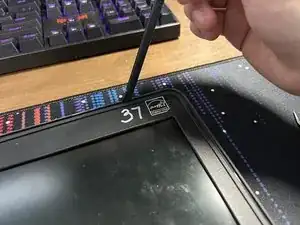

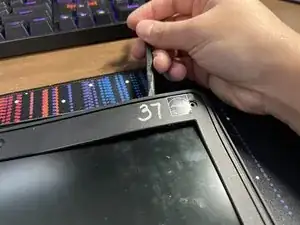

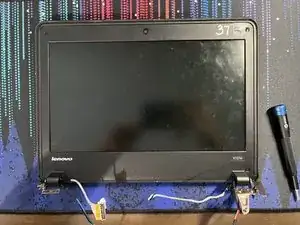

    • Now insert a plastic spudger between the top of the assembly and the bezel and start prying.

    • Make your way around the bezel. You can also pry from the other side of the bezel by the screen with your finger to make it easier.

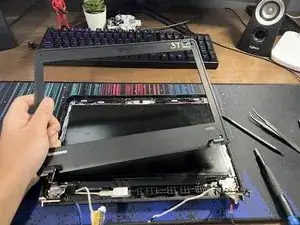

  30. X21fTID4Ok3dPiEC
    X21fTID4Ok3dPiEC
    KDVm3INNXXkKW3CD

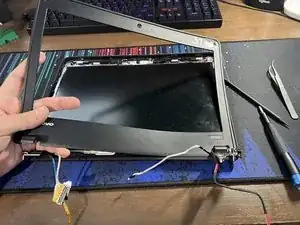

    • Keep prying until the bezel is free.

  31. yInZQcoasEddBfDM
    • Remove the four 4 mm silver screws holding down the LCD panel.

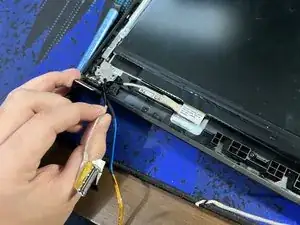

  32. vQfBsommUdMVLU3x
    vQfBsommUdMVLU3x
    ie6xXw3LY2QGMRUt

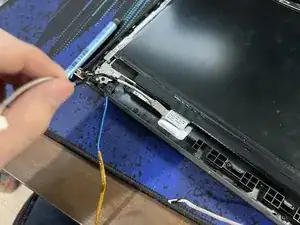

    • Lift and remove the silver shielded wire connected to the LCD panel out of the way.

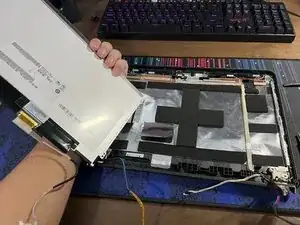

  33. N5rrmIrNbSmuBwnp
    N5rrmIrNbSmuBwnp
    gbmCZ1WdRI2c2yi1
    rdpWkKgEW6QtkmZm

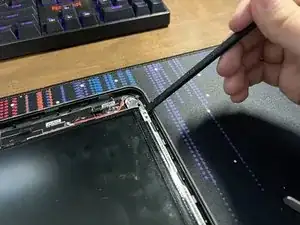

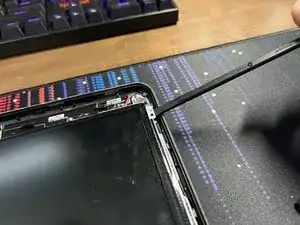

    • Use a plastic prying tool near the edge of the panel where the silver screws once were to lift up the LCD panel.

    • The LCD panel is now free.

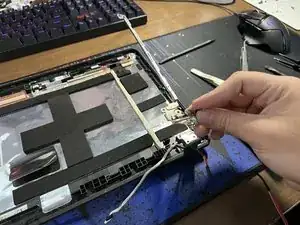

  34. wMakh6TwukrYoZgM
    wMakh6TwukrYoZgM
    AYMdmhhyRS14bVWR
    DpHyu4pwLraIshET

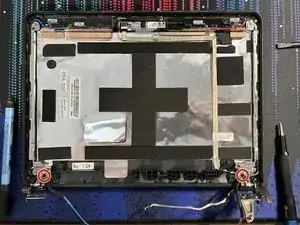

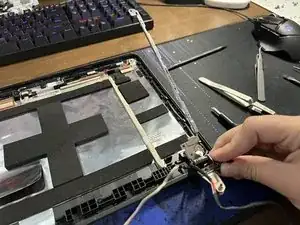

    • Remove the two 6 mm screws holding down the two hinge assemblies.

    • The hinges are no longer secured to the frame and can be lifted away.

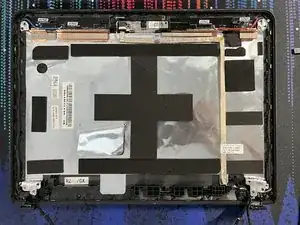

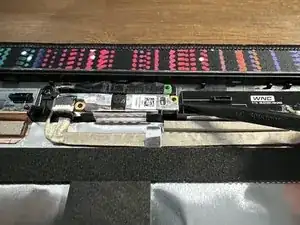

  35. 2IsQtxDMNcZKwumP
    2IsQtxDMNcZKwumP
    V5XE2DfSMmQ6RROl
    VjeMfIxOQfMFAEPr
    • The webcam and microphone are both attached to a silver shielded cable.

    • The webcam assembly can be lifted away.

    • There is black tape over the microphone that can be peeled off by tweezers, and then the microphones can be lifted away too.

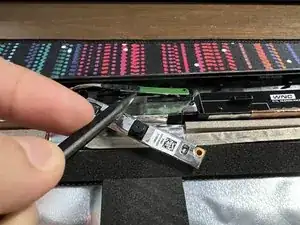

  36. WD2XdTs4KVrhkOxI
    WD2XdTs4KVrhkOxI
    RBEwCFhgwmuxv3IV
    VVMPwUQwlPHCgWnD

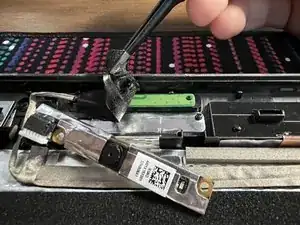

    • Peel away the black cloth tape covering the microphone Printed Circuit Board (PCB)

    • The microphone's PCB is glued down. Insert a plastic spudger from the left and make your way to the right to slowly release the microphone's PCB.

    • With that, the microphone along with the webcam are now free.

  37. F2yaDJssIqWWr1SR
    F2yaDJssIqWWr1SR
    TgPxnGAiHcqGWbsT

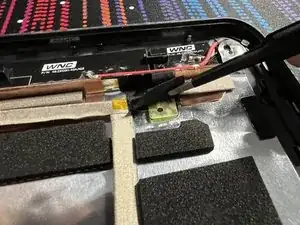

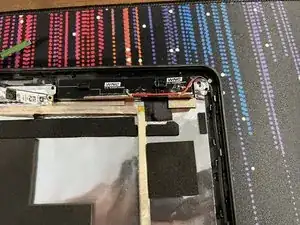

    • Farther down the same shielded cable, there is more black cloth tape.

    • Peel it away with some pliers.

  38. rBLnUnwHpJkNNnFL
    rBLnUnwHpJkNNnFL
    bwi5LVd1WKFpjUgP

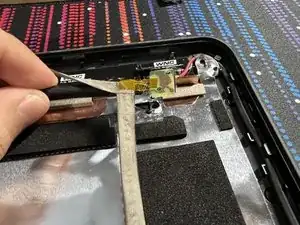

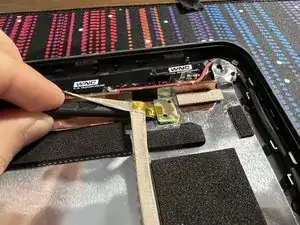

    • Because the small PCB is glued down with adhesive, insert a plastic spudger from the left, underneath the shielded cable, to pry it away.

  39. P4kERfAXuaN6Ubhb
    P4kERfAXuaN6Ubhb
    WUG5sSj6ZtxNZTNF

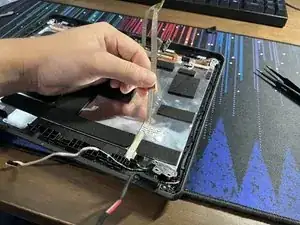

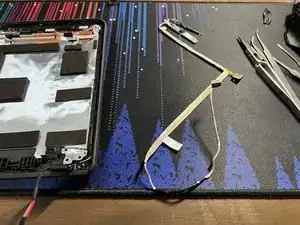

    • Carefully peel away the rest of the shielded cable.

    • Make sure to remove the cable from its cable routing carefully when you get to the bottom.

    • The cable is now free.

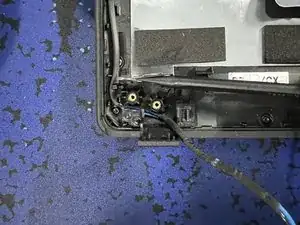

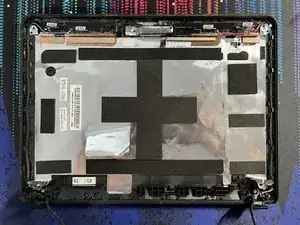

  40. yRsVL1ng1IgkaB4J
    yRsVL1ng1IgkaB4J
    YbK6EfD3tOWcgdOg
    pvHSBmiKlCLNtaHo
    • Lift the cable shielding covering the cable routing for the WiFi and cellular antennas.

    • Start removing the cable's from their routing slots.

  41. NDJEWgjeX1gn6Tco

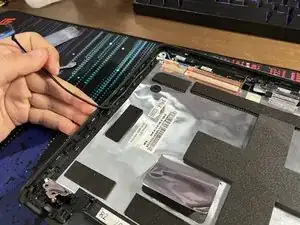

    • Keep removing until you get to the top two black PCB's that the cables are attached to the frame.

  42. AaY5FauIsnC1C2G2
    AaY5FauIsnC1C2G2
    LUV4NOfYYQKmWkKE
    Z1rgUM4vLpgH1Zpp

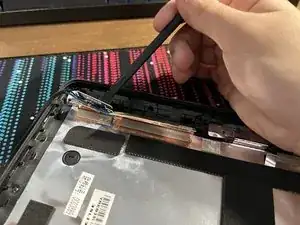

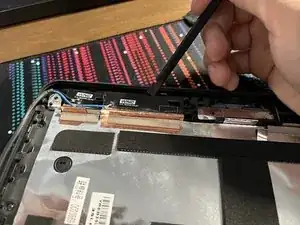

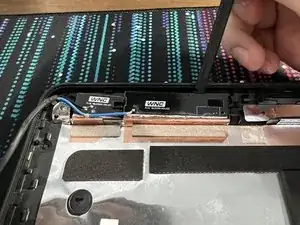

    • Insert a plastic spudger between the the PCB and the frame, and carefully pry up.

    • The PCB should lift with relatively little effort.

    • Now do the same with the other PCB.

  43. BfP3TaWWaRXrQBUR
    BfP3TaWWaRXrQBUR
    KciS563YnDI3swJU

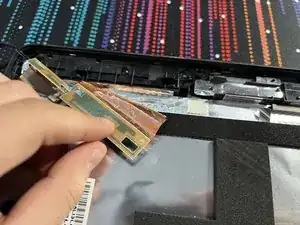

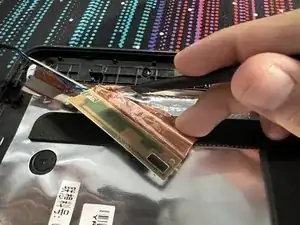

    • Peel away the PCB's and their attached copper tape carefully.

    • Please see the next step if the silver shielding is peeling away with the copper tape.

  44. mbTVc424RyWKnlVR
    mbTVc424RyWKnlVR
    Eb6flLrQojJcnQ6A

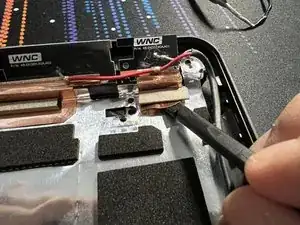

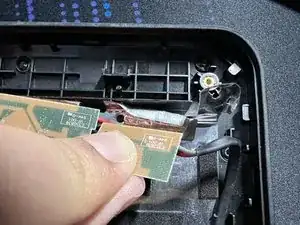

    • If the Silver Shielding starts to peel away with the copper tape, then insert a plastic pry tool from the bottom (other side) and start peeling from there.

    • Now the silver shielding won't get damaged.

  45. WmDd2w5d2ROO3cFi

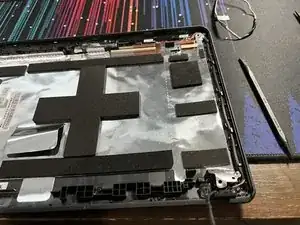

    • Repeat steps 40-44 on the other side with the other antenna cable.

  46. 4pxAWNX65UuuRplh

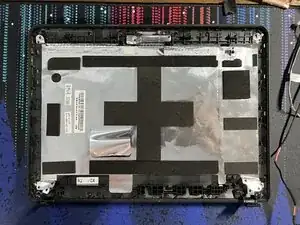

    • The laptop is now fully disassembled. Thanks for reading my guide!

Abschluss

To reassemble your device, follow these instructions in reverse order.

I’ve attached the Hardware Maintenance Manual from Lenovo for this machine in case you need a more specific guide to a certain part.

If I missed something, let me know and I’ll update the guide!
