Lenovo ThinkPad X140e Hard Drive Replacement

Geschrieben von: kevin hull
  • Kommentare: 1
Lenovo ThinkPad X140e Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 - 5 Minuten

Einleitung

Hard drive replacement is necessary if your laptop fails to boot or because of hard drive errors. Prior to hard drive replacement, you will need to remove the back panel, both of which are quick, easy tasks.

  1. rsM6AoRGsrYFR3wn

    • Flip the laptop upside down so that the battery is facing away from you.

    • Battery removal is not necessary to complete this guide.

  2. ZmELJd3YhneW5FFj
    ZmELJd3YhneW5FFj
    XQ6KbGMVgV6GEjJP

    • Locate the three 3 mm Phillips #0 screws on the back panel.

    • Remove each screw using a small Phillips #0 screwdriver.

  3. 4NsJ1DIFoO6Fbrbg

    • Using a small plastic opening tool, pry off the back casing starting at a point closest to you and working around the perimeter of the case.

  4. fixQuj3d2LIxnivS

    • After removing the back panel, locate the hard drive located to the far left. It is distinguishable from other parts based on it's rectangular shape.

  5. C4RXSSkTu4LeqqPl
    C4RXSSkTu4LeqqPl
    5FVETFbDKJQdDAgn

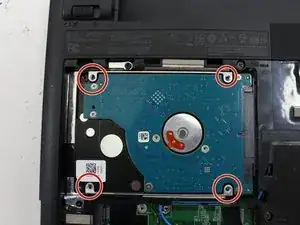

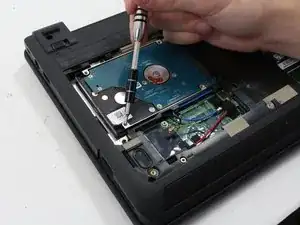

    • Remove the four 3.5 mm Phillips #0 screws attached on the four corners of the hard drive.

  6. JkM4tjcXWJpVFGpE
    JkM4tjcXWJpVFGpE
    2jeeBJPKQhprOemM

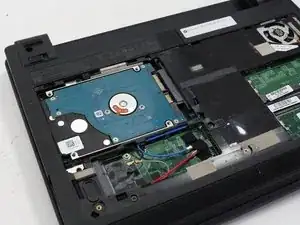

    • Slide the hard drive to the left.

    • Grip the hard drive on both sides and proceed to lift up to remove the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
