This replacement guide will enable users to properly remove the fingerprint scanner on the Lenovo ThinkPad X280.

The fingerprint scanner is commonly used as an authentication device to grant users access to the device.

If your device’s sensor is dirty and failing to work properly, your device is unresponsive to your fingerprint, and/or fails to recognize your fingerprint, your fingerprint scanner may be insufficient.

It is important to note that typically only one finger can be used to relay an appropriate response from your device. Using multiple fingers can result in an ‘error’ or ‘fingerprint cannot be read’ message. In addition, in order to remove or replace the fingerprint scanner, you must first remove the battery.

Before consulting this guide, review this document for more solutions.

  1. LbGdYpaKVCEDgeTF
    • To begin, ensure that the device is completely powered off and not connected to an energy supply.

    • Close the device and flip it over to expose the back panel.

  2. kCAJQ6NRJyjIpQJ6
    kCAJQ6NRJyjIpQJ6
    vAvTvuYrVqPyi1XF
    • Use a Phillips #1 screwdriver to unscrew the five captive screws on the back panel until a small pop is heard.

    • These are captive screws and do not come out completely.

  3. tdURQQikBpcB6Aeq
    tdURQQikBpcB6Aeq
    PIrBlwPDQyt2dFSZ
    • Gently wedge an opening tool or spudger under the back panel, and loosen the clips around the perimeter until the back panel comes off.

    • Remove the back cover.

  4. CDc3tKl3jveRmvRw
    CDc3tKl3jveRmvRw
    WuIgHA42wXknVcPi
    hpQCeuRNoGK5OBep
    • Using the Phillips #1 screwdriver, remove the four 5 mm screws that are holding the battery down.

    • Remove the battery.

  5. I1rNUlN4BYJNwRkT
    I1rNUlN4BYJNwRkT
    XStTYojSA6UtbE4L
    EaSglm6icPq66DZu

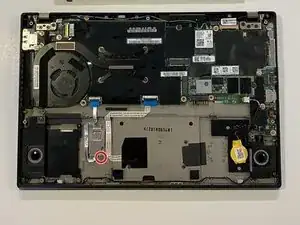

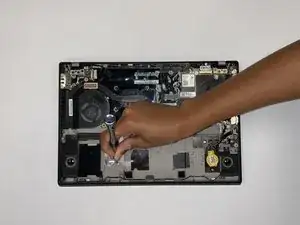

    • Using a Phillips #1 screwdriver, remove one 5 mm screw from the fingerprint sensor.

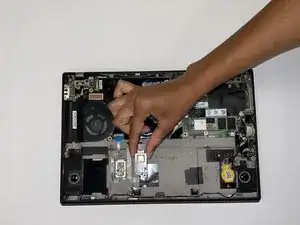

    • Remove the metal plate covering the sensor.

  6. 6WSPDHVUtbILiSMv
    6WSPDHVUtbILiSMv
    MdbK3NtaPlO4UKhP

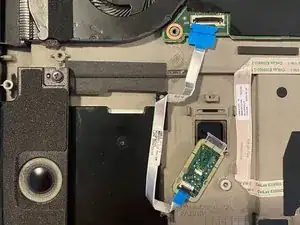

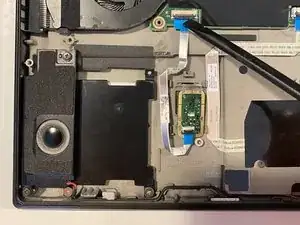

    • Using the black spudger tool, flip up the small hinged locking flap connected to the motherboard.

    • Gently pull the cable out of the connection site.

  7. SPb1Uw25uJRajTFN

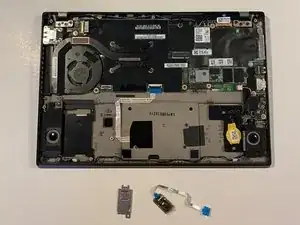

    • Remove fingerprint scanner and metal covering from device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
