Lenovo ThinkPad X280 Wi-Fi Card Replacement

Geschrieben von: Hannah Bryn Cullen
  • Kommentare: 0
Lenovo ThinkPad X280 Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

45 Minuten

Einleitung

This will take approximately 45 minutes to complete from beginning to end.

  1. LbGdYpaKVCEDgeTF

    • To begin, ensure that the device is completely powered off and not connected to an energy supply.

    • Close the device and flip it over to expose the back panel.

  2. kCAJQ6NRJyjIpQJ6
    kCAJQ6NRJyjIpQJ6
    vAvTvuYrVqPyi1XF

    • Use a Phillips #1 screwdriver to unscrew the five captive screws on the back panel until a small pop is heard.

    • These are captive screws and do not come out completely.

  3. tdURQQikBpcB6Aeq
    tdURQQikBpcB6Aeq
    PIrBlwPDQyt2dFSZ

    • Gently wedge an opening tool or spudger under the back panel, and loosen the clips around the perimeter until the back panel comes off.

    • Remove the back cover.

  4. 61aHEujYjjF2GKlG

    • Use tweezers to gently disconnect the two wires that are connected to the Wi-Fi card.

    • They should pop off with minimal force.

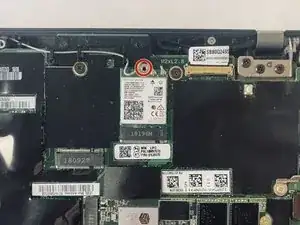

  5. KfJNKXfV5qNLlbvU

    • Use a Phillips #1 screwdriver to remove the single screw that secures the Wi-Fi card.

    • Be careful not to over-tighten the screw when reassembling, should be thumb tight

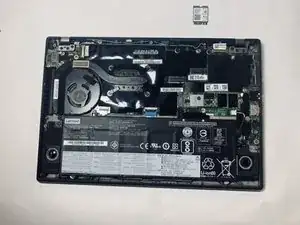

  6. UYEUtFwkDDGGeYvh

    • Use tweezers or your fingers to gently pull the Wi-Fi card from its port.

    • Pull directly away from the port, parallel with the card. Do not pull up towards yourself.

Abschluss

To reassemble your device, follow these instructions in reverse order.
