Lenovo ThinkPad X390 Back Cover Replacement

Geschrieben von: Justin Ogihara
  • Kommentare: 0
Lenovo ThinkPad X390 Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 - 10 Minuten

Einleitung

Prerequisite only.

  1. otfQKaLY1HdgRPSY

    • Turn off and power down the laptop before proceeding with the guide.

    • Flip your laptop over and place on a flat surface so you can access the screws on the base cover.

    • Using a Phillips #0 screwdriver, unscrew the five screws on the base cover.

    • The screws are not removable.

  2. 1e1wlM1D42F4A6k2
    1e1wlM1D42F4A6k2
    HWyC4bjTlJXgdMKF

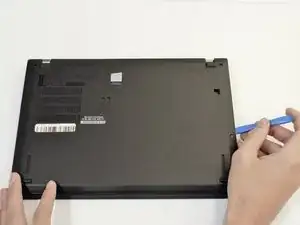

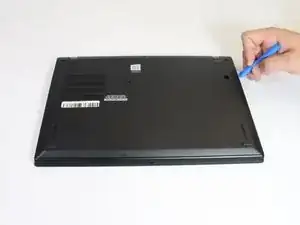

    • Remove the base cover by inserting a plastic opening tool in between the cover and the rest of the laptop.

    • Once the tool is inserted, slide the tool along the edges of the case and push down on the opening tool to detach the case.

    • You may need to move the tool to different locations to fully release the back cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
