Lenovo ThinkPad X390 Motherboard Replacement

Geschrieben von: Colton Horvath
  • Kommentare: 1
Lenovo ThinkPad X390 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 - 45 Minuten

Einleitung

  1. vdjCfRwjL1Xpr2Ag

    • Power down and unplug the laptop before proceeding.

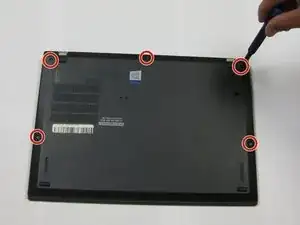

    • Use a Phillips #0 screwdriver to remove the five screws on the base cover.

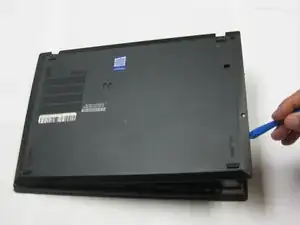

  2. r1MycZpIqe3dLt3w

    • Insert a plastic opening tool between the base cover and the chassis.

    • Slide the tool along the perimeter of the case and push down as you go to release the base cover.

    • Lift the base cover up and off.

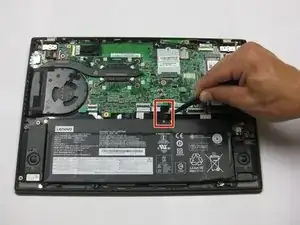

  3. 5IxAAZuhiWwUISfl

    • Use tweezers to grip the battery's motherboard plug, and pull the plug directly out of its port.

    donde esta la bios para resetear? por favor gracias por tu excelente aporte.

    vcuellar.montalban -

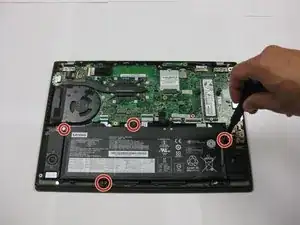

  4. PLRtnnhWiENJVJJ4

    • Use a Phillips #0 screwdriver to remove the four 5.2 mm screws securing the battery.

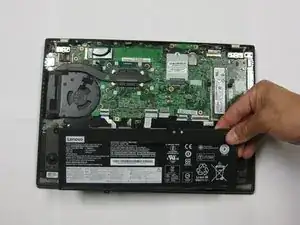

  5. HAqOLJm3dlXE23vu

    • Lift the battery up and out of its housing.

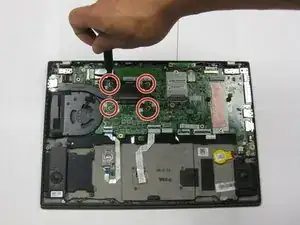

  6. 2GHn2UTMiePgCoKf
    2GHn2UTMiePgCoKf

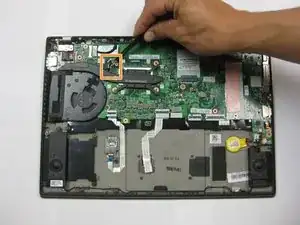

    5o1ZmIjv4ump6xMr

    • Remove the four 5.2 mm screws from the fan using the Phillips #0 screwdriver.

    • Use tweezers to carefully unplug the fan ribbon cable.

  7. wVsoCEDEYv5uniF2

    • Remove the eleven 5.2 mm screws from the motherboard using a Phillips #0 screwdriver.

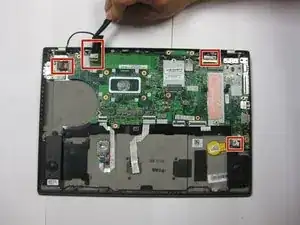

  8. fUueuXT2SGsO4vPO

    • Use tweezers to carefully unplug the four motherboard ribbon cables.

  9. H1QWGOZeSa2hN5hX

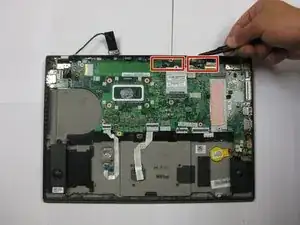

    • Use tweezers to carefully unplug the black and red harness cables.

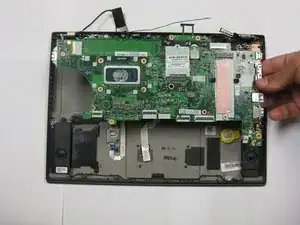

  10. 6snYMn2pv2TKdMOK

    • Carefully lift the motherboard up and out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
