Lenovo ThinkPad X390 SSD Replacement

Geschrieben von: Colton Horvath
  • Kommentare: 1
Lenovo ThinkPad X390 SSD Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 25 Minuten

Einleitung

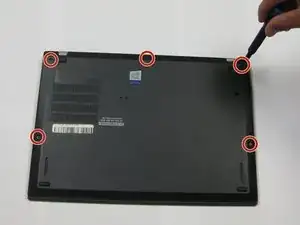

  1. RKMboQoVu2AjbSAF

    • Shut down and unplug the laptop before proceeding.

    • Use a Phillips #0 screwdriver to remove the five 2.7 mm screws on the base cover.

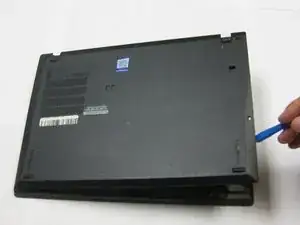

  2. 4p3INlCnubl1VPYT

    • Insert a plastic opening tool between the base cover and the chassis.

    • Slide the tool along the perimeter of the case and push down as you go to release the base cover.

    • Lift the base cover up and off.

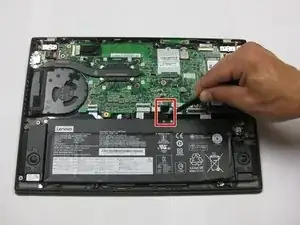

  3. SOmHbvoiMKGXLW1k

    • Use tweezers to grip the battery's motherboard plug, and pull the plug directly out of its port.

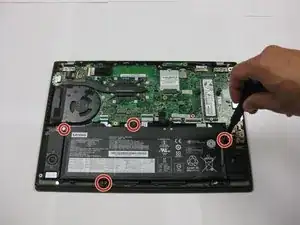

  4. M3HnehgGpVaAXDJJ

    • Use a Phillips #0 screwdriver to remove the four 5.2 mm screws securing the battery.

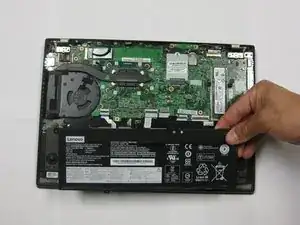

  5. mxRCDINPvyYYeXgh

    • Using your hands, remove the battery from the laptop.

    • Lift the battery up and out of its housing.

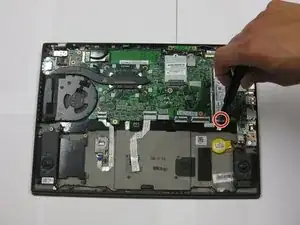

  6. uPhT4oPXVTqmSESk

    • Use a Phillips #0 screwdriver to remove the single 2.9 mm screw securing the SSD to the motherboard.

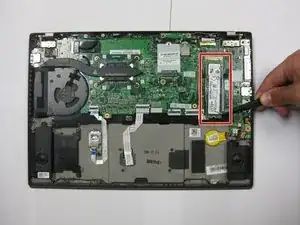

  7. VOIrsMBoZkDlbS33

    • Grip the SSD, and gently pull it directly out of its port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
