If you need to access your laptops speakers, or need to replace your laptops speakers please refer to this guide. Exercise caution before performing this guide by ensuring that the laptop is unplugged and turned off. To complete the replacement or removal of the speakers you will need a #0 screw driver and tweezers.
Ersatzteile
-
-
Flip your laptop over and place on a flat surface so you can access the screws on the base cover.
-
Using a Phillips #0 screwdriver, unscrew the five screws on the base cover.
-
-
-
Remove the base cover by inserting a plastic opening tool in between the cover and the rest of the laptop.
-
Once the tool is inserted, slide the tool along the edges of the case and push down on the opening tool to detach the case.
-
-
-

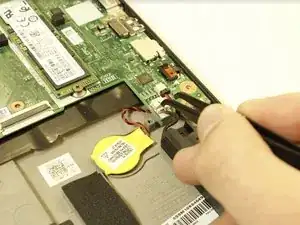

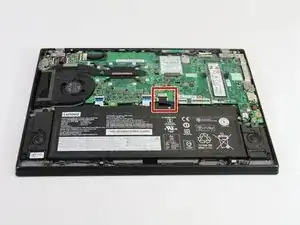

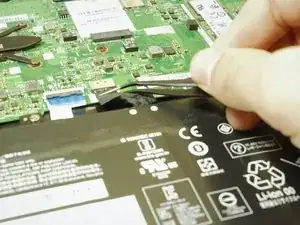

Using tweezers, unplug the battery from the laptops motherboard by pulling on the cable that attaches it.
-
-
-

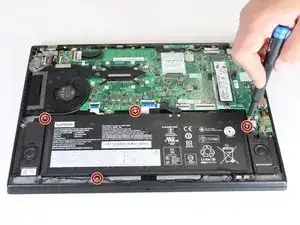

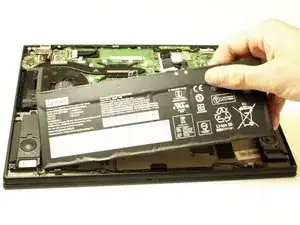

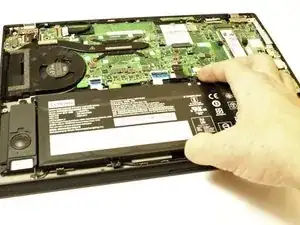

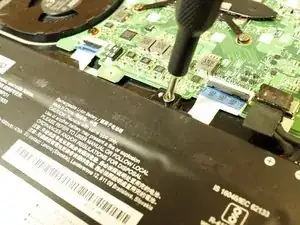

Using a Phillips #0 screwdriver, remove the four 5.2 mm screws holding the battery in place.
-
-
-

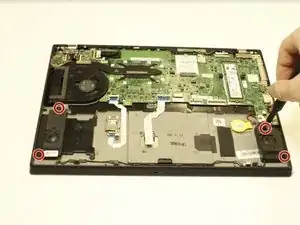

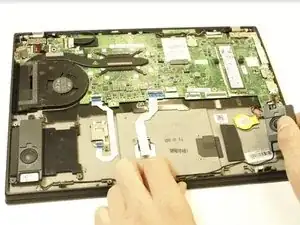

Use the Phillips #0 screwdriver to remove four 2.9 mm screws securing the speakers to the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
